H8, H9 & H11 LED Bulb Manufacturer
Source H8, H9 and H11 LED bulbs for your wholesale, distribution or private-label business. Choose from compact fanless, CANBUS-ready, multi-color and high-output solutions matched to your target market.
- Multiple H8/H9/H11-Compatible Series
- OEM Logo & Retail Packaging
- Sample Orders Supported
- 12V and 24V Options Available
Find the Right H11-Family LED Bulb for Your Market
Different markets require different installation sizes, weather functions, power levels and vehicle decoding solutions. Start with the requirement that matters most to your customers.
Compact & Fanless
For limited rear housing space and product lines prioritizing quiet operation, simple installation and stable value.
CANBUS Ready
For vehicle platforms that may report dashboard errors, flicker or require a more advanced driver solution.
Multi-Weather
For markets with frequent rain, fog or seasonal weather, with selectable warm-yellow and white light options.
High Output
For distributors building a premium performance range supported by stronger active cooling and external drivers.

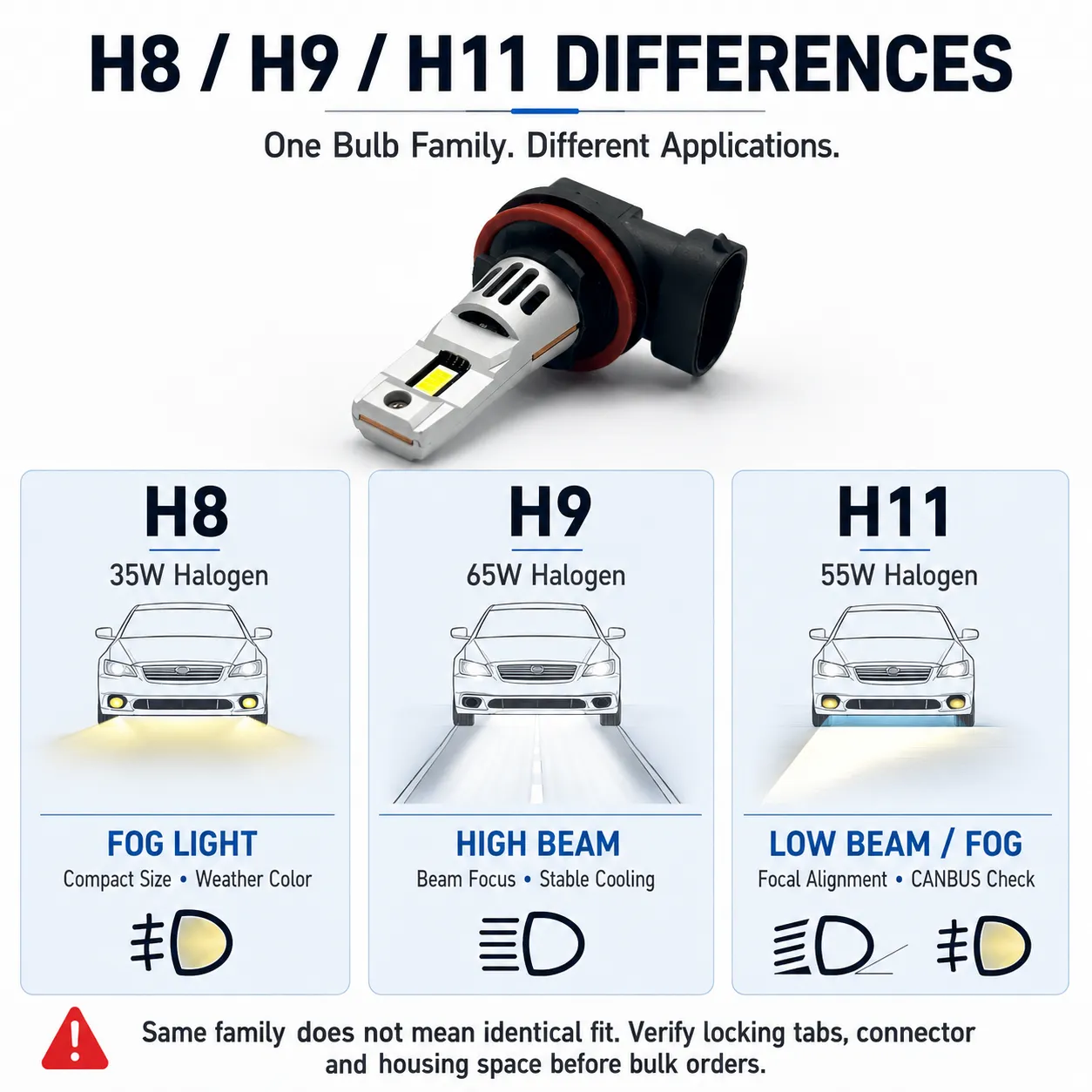

One Bulb Family, Different Vehicle Applications
H8, H9 and H11 bulbs belong to the same general bulb family, but their original halogen wattage, locking-tab details and typical vehicle positions are not identical.
LEZEN offers dedicated and selected multi-fit LED base solutions. Before a bulk order, we confirm the original socket, lamp position, housing space, vehicle voltage and CANBUS requirements for your target applications.
| Socket | Halogen Power | Common Application | Selection Priority |
|---|---|---|---|
| H8 | 35W | Fog light | Compact size, weather color, waterproof |
| H9 | 65W | High beam | Beam concentration, cooling, stable output |
| H11 | 55W | Low beam or fog light | Focal alignment, installation space, CANBUS |
Important Fitment Notice
Matching the socket name alone does not guarantee fitment in every vehicle. Please confirm the locking tabs, connector, housing depth, dust-cover clearance, polarity and vehicle electronics before ordering in bulk.
Image: Real H8, H9 and H11 halogen bases beside LEZEN LED multi-fit bases.

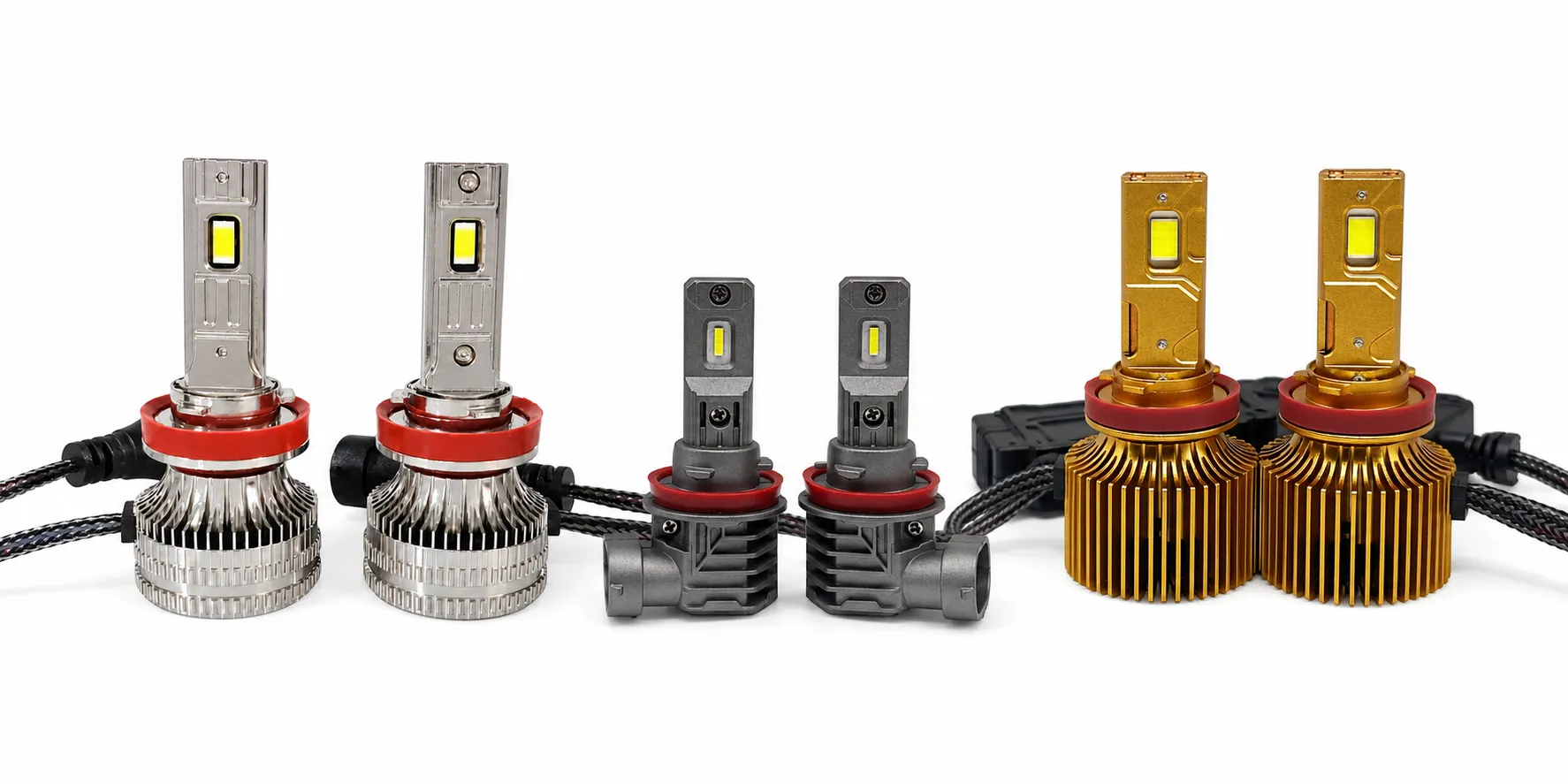

Wholesale H8, H9 & H11 LED Bulb Range
Compare real LEZEN H11-compatible series by installation size, cooling structure, CANBUS solution, weather function and target price level. Request the latest approved datasheet for confirmed power, lumen and packaging information.
V2 H11 LED Bulb
Compact Fanless Series
The V3 is a compact, quiet H11 solution for importers and distributors serving price-sensitive markets. Its fanless structure removes fan noise and moving cooling components while keeping installation simple.
Best for: Entry-level wholesale ranges, compact housings and customers prioritizing quiet operation.
V5 H11 LED Bulb
Compact CANBUS Series
The V5 combines a compact rear profile with active cooling and integrated decoding support. It is developed for distributors that need easier installation and a stronger solution for compatible vehicles prone to dashboard errors or flickering.
Best for: European and American aftermarket channels requiring compact size and CANBUS support.
V8 H8/H9/H11 LED Bulb
Smart CANBUS Series
The V8 is a wide-voltage H8/H9/H11 solution for distributors serving both passenger-car and commercial-vehicle channels. Its active cooling and driver configuration are designed for stable operation across a broader application range.
Best for: Mainstream distributor ranges requiring 12V/24V coverage and selectable decoding solutions.
L19 H11 LED Bulb
High-Performance Core Series
The L19 is designed to balance brightness, thermal stability and commercial positioning. It gives wholesalers a strong core product between compact entry-level bulbs and maximum-output flagship models.
Best for: Regional distributors looking for a repeatable main-range product with broad market positioning.
M32 H8/H9/H11 LED Bulb
Multi-Color Weather Series
The M32 gives distributors a differentiated H8/H9/H11 product for rain, fog and seasonal weather. Multiple color temperatures allow the same series to address both warm-yellow visibility demand and cool-white styling demand.
Best for: South American, Southeast Asian, Middle Eastern and other markets where fog, rain or multi-color products have strong sales potential.
* Confirm the actual color-switching method (remote or headlamp switch) according to the production version.
M35 H11 LED Bulb
Premium High-Power Series
The M35 is a flagship option for established distributors and automotive lighting brands building a premium high-output product range. Its reinforced cooling structure is intended to support stronger performance positioning and higher retail value.
Best for: Premium product lines, specialty lighting retailers and performance-oriented markets.
M38S H11 LED Bulb
Maximum Output Series
The M38S completes a structured entry, core and flagship LED bulb portfolio. It is intended for distributors that need a visually distinctive maximum-output model supported by thermal and optical test data.
Best for: Flagship catalogs and buyers who require documented beam, temperature and sustained-output testing before bulk orders.
Compare LEZEN H11-Compatible Series
Review our H1 LED headlight bulb range and H11 series side-by-side to find the right technical fit for your target market.
| Series | Cooling | Size Profile | CANBUS | Voltage | Positioning | Recommended Market |
|---|---|---|---|---|---|---|
| V3 | Fanless aluminum | Compact | Optional external | 12V | Entry | Price-sensitive wholesale |
| V5 | Copper pipe + fan | Near 1:1 | Integrated | 12V | Mid-range | European/American apps |
| V8 | Fan + CNC heatsink | Compact | Smart solution | 9V–32V | Mid-premium | Cars & commercial |
| L19 | Dual copper pipe + fan | Standard | Optional | 12V/24V | Core | Main distributor range |
| M32 | Triple copper pipe + fan | Standard | External controller | 9V–32V | Premium color | Rain and fog markets |
| M35 | Four copper tubes + fan | Standard | Optional | 12V/24V | High power | Premium retail brands |
| M38S | Multi-pipe active cooling | Standard | External | 12V/24V | Flagship | Maximum-output segment |
Need Help Choosing the Right SKUs?
Send us your sales country, target price, expected quantity, required color temperature and CANBUS needs. Our team will recommend two or three suitable models for sample comparison.
Get a Product RecommendationH11 Beam Performance Designed Around the Halogen Focal Point
High lumen output alone does not guarantee a useful beam. The position, thickness and spacing of the LED chips must remain close to the original halogen filament location so that the reflector or projector can control the light correctly.
LEZEN evaluates LED position, central lux, beam distribution and scattered light in compatible housings. Qualified wholesale and OEM buyers can request wall-test photos and available optical test records before selecting samples.
Halogen-Aligned LED Position
Thin LED-board and chip positioning help reproduce the location of the original H8/H9/H11 halogen filament.
Reflector & Projector Testing
Test low-beam, high-beam and fog-light applications separately because the same bulb can perform differently in different lamp housings.
Adjustable Beam Options
Selected series allow rotation or alignment adjustment to improve LED orientation in compatible housings.

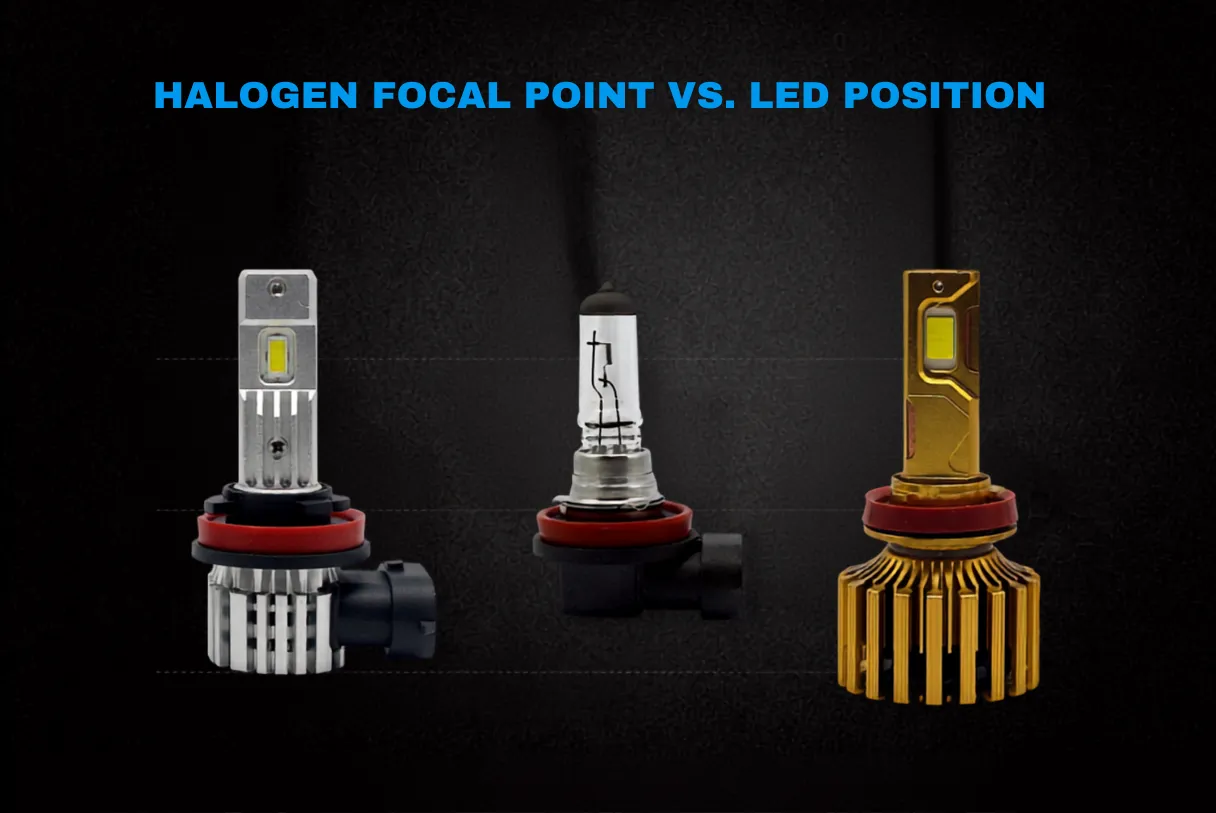

Halogen focal point vs. LED position

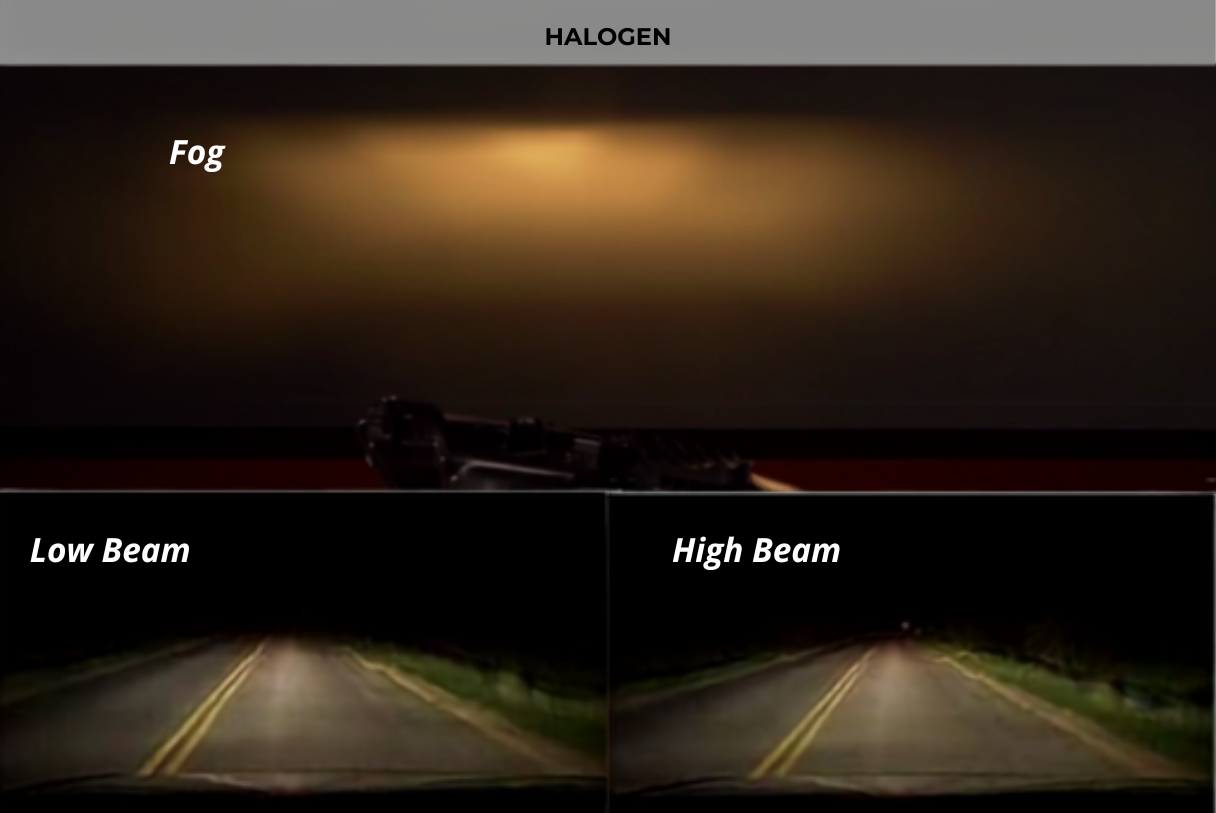

Reflector housing test
Projector housing wall test
Cooling Structures for Different H11 Product Levels
An H11 LED bulb must fit inside the available rear housing space while controlling heat around the LED chips and driver. LEZEN uses different cooling structures according to product power, size and market positioning.
Fanless Aluminum Cooling
- Compact and quiet
- No fan-related moving components
- Suitable for low-to-mid output positioning
- Used for value-focused product lines
Copper Pipe + Active Fan
- Balances compact size and stronger heat transfer
- Suitable for mainstream distributor ranges
- Supports more stable output as operating temperature rises
Multi-Pipe High-Output Cooling
- Developed for premium and flagship configurations
- Requires confirmation of housing and dust-cover space
- Should be supported by temperature and sustained-output test data
Test Sustained Brightness, Not Only Start-Up Output
LED output changes as temperature rises. We recommend comparing power, lumen and operating temperature at start-up and after 10, 30 and 60 minutes before confirming a bulk order.
Ask for Thermal Test Records →Match the Driver Solution to the Vehicle System
Not every H8/H9/H11 application requires CANBUS decoding. Requirements depend on the vehicle platform, lamp circuit and local application mix. Learn why CANBUS compatibility matters.
LEZEN can provide standard drivers, integrated CANBUS designs and external decoder options according to the selected product series. Sample testing is recommended before mass production because no single decoder can guarantee compatibility with every vehicle.
Compatibility Checks Before Bulk Orders
- Dashboard warning message
- Flickering during start-up/operation
- Bulb monitoring pulse
- Radio interference
- Polarity
- Connector and locking tabs
- Housing & dust-cover clearance
- 12V or 24V system
Build an H11 LED Bulb Line for Your Local Market
Entry-Level Wholesale Line
For price-sensitive channels requiring compact installation and stable basic performance.
- • V3 fanless platform
- • Standard CSP configuration
- • LEZEN or simple neutral packaging
- • Suitable for initial market testing
Distributor Core Line
For wholesalers building a repeatable main product with stronger cooling and decoding options.
- • V5, V8 or L19 platform
- • Upgraded driver & cooling structures
- • Custom logo marking
- • Branded single or twin packaging
Premium Brand Line
For established brands seeking greater differentiation and stronger performance positioning.
- • M32, M35 or M38S platform
- • Multi-color or high-output configs
- • Customized housing color/driver
- • Premium packaging & marketing materials
Not sure which series fits your target price? Send us your sales country, expected order quantity and preferred retail positioning. We will prepare a comparison and sample proposal.
Private-Label H8/H9/H11 LED Bulbs for Your Brand
Start with an existing LEZEN series for faster market testing, or work with our team to adjust the appearance, driver, packaging and performance positioning for a differentiated private-label product.
Product Customization
- Product logo laser marking
- Aluminum body color
- LED chip configuration
- Driver and CANBUS solution
- Wattage positioning
- 3000K / 4300K / 6000K / 6500K
Packaging Customization
- Single or twin packaging
- Color box, blister or EVA insert
- Manual and label design
- Barcode and anti-counterfeit label
- Outer-carton quantity and markings
Marketing Support
- White-background product images
- Feature and parameter graphics
- Packaging mockups
- Product videos and sales materials
Quality Control for Consistent Repeat Orders
Professional buyers need the second and third shipment to match the approved sample. LEZEN records key electrical, optical and appearance data by production batch to help control variation between samples and repeat bulk orders.
Incoming Parts
Inspect LED chips, aluminum bodies, fans, drivers, connectors and packaging materials before assembly.
In-Process Testing
Check electrical performance, assembly, polarity, driver operation and product appearance during production.

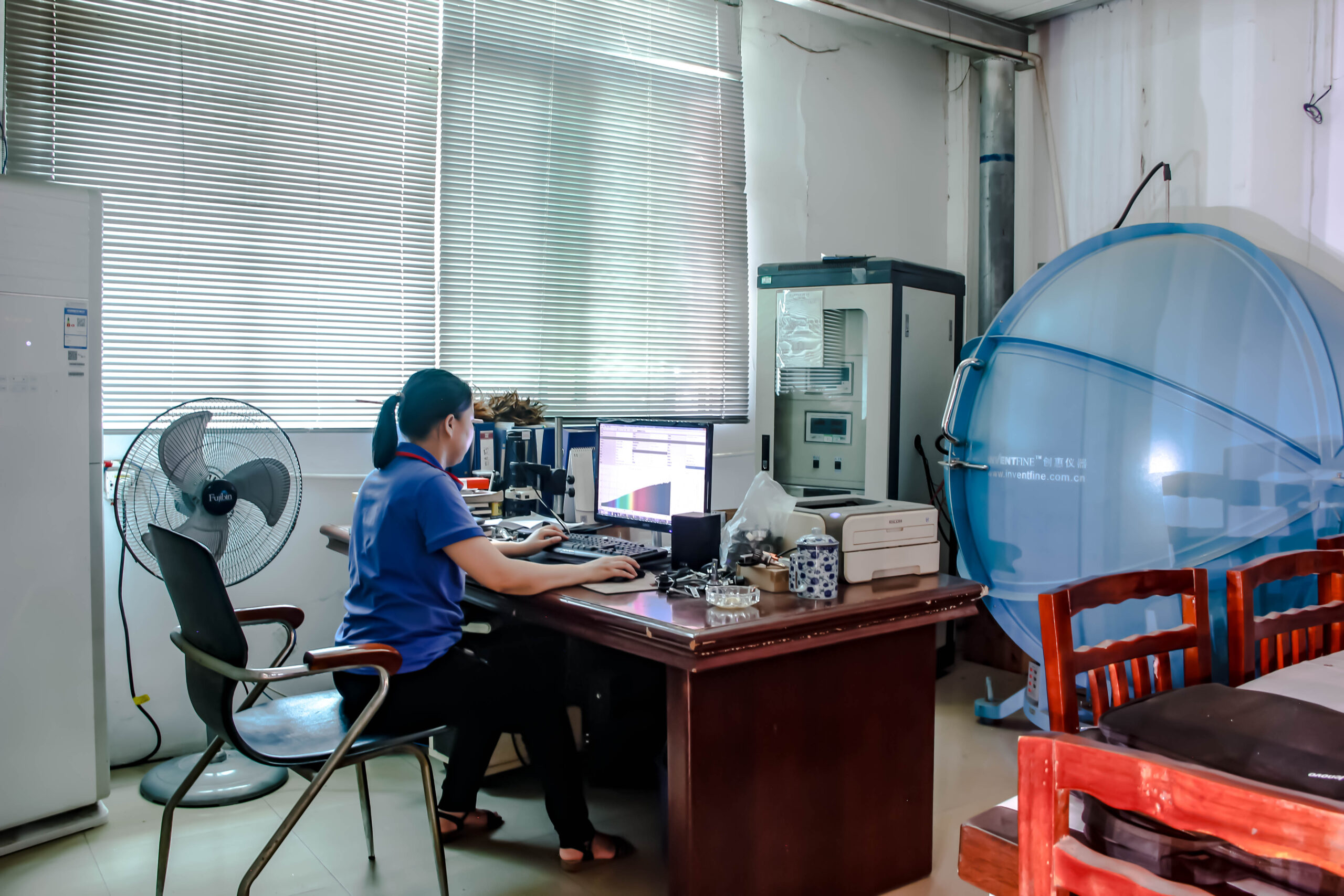

Optical & Thermal Testing
Measure power, lumen, beam pattern and operating temperature according to the approved product specification.
Aging & Final Inspection
Complete the approved aging procedure, final electrical test, appearance check and packing verification before shipment.
Compliance & Certification Notice
Certification and compliance documents vary by product and destination market. Factory management systems such as ISO 9001 and IATF 16949 are different from individual product approvals. Contact LEZEN to confirm the available documents for the selected LED series and destination country.
From H11 Sample Testing to Bulk Production
Share Market Requirements
Provide the destination country, target price, sales channel, required sockets, color temperature, CANBUS needs and estimated quantity.
Receive Model Recommendations
LEZEN recommends two or three suitable series with a clear comparison of product positioning and available specifications.
Test Samples
Verify locking tabs, connector, housing space, beam pattern, operating temperature, decoding and local market response.
Confirm Branding
Finalize logo marking, packaging artwork, labels, manuals, barcodes and outer-carton details.
Mass Production
Production follows the confirmed sample and approved specification, with batch inspection records maintained according to the order requirements.
Shipment & Repeat-Order Support
Receive packing information, available product materials and dedicated support for repeat orders and additional socket expansion.
H8, H9 & H11 LED Bulb Wholesale FAQ
Are H8, H9 and H11 LED bulbs interchangeable?
Do all LEZEN LED bulb series support H8/H9/H11?
Do all H11 LED bulbs require CANBUS?
Can I order samples before a bulk order?
Can you customize our logo and packaging?
Can you supply 12V and 24V H11 LED bulbs?
Is every H11 LED bulb street legal?
Which series should I choose for my market?
Get H8/H9/H11 Specifications and Wholesale Pricing
Tell us what you sell and where you sell it. Our team will recommend suitable LEZEN series and provide available specifications, MOQ guidance, sample options and OEM packaging information.
You Will Receive:
- Two or three recommended H11-compatible models
- Product-positioning and specification comparison
- MOQ and quantity-based quotation
- Sample-testing options
- OEM logo and packaging details
