V2 Fanless LED Headlight Bulbs for Wholesale & OEM
Source the LEZEN V2 series for your automotive replacement bulb range. Its die-cast aluminum body uses passive cooling without a built-in fan. Tell us your required base, target market and order quantity to receive the matching specification, sample terms and wholesale quotation.
- Passive fanless cooling
- Die-cast aluminum body
- Logo and packaging options for B2B orders
V2 Specifications for Product Selection
Review the exact configuration before comparing prices or ordering samples. Power figures should identify the quantity basis and test conditions so your purchasing team can compare like for like.
| Parameter | Specification Details |
|---|---|
| Series | V2 |
| Cooling | Passive fanless cooling |
| Housing / Heat Sink | Die-cast aluminum |
| Available Bases | H1,H3,H4, H7, H11, 9005, 9006 |
| Input Voltage | DC 9V - 32V (Confirm vehicle suitability) |
| LED Chip | 3570 CSP |
| Startup Power | 50W/Pair |
| Stabilized Power | 33W/Pair |
| Color Temperature | 6000K Standard (Custom options subject to MOQ) |
| Dimensions | Total length, rear installation depth, max diameter provided per base |
| Driver | Internal |
| Pack Contents | Single bulb (Motorcycle) or Two bulbs (Automotive) |
V2 Series LED Bulbs
Engineered for high-performance automotive lighting. Our V2 series features robust construction and superior thermal management. Available in standard socket types: H1, H3, H4, H7, H11, 9005, and 9006.
Socket Type
H1
Socket Type
H3
Socket Type

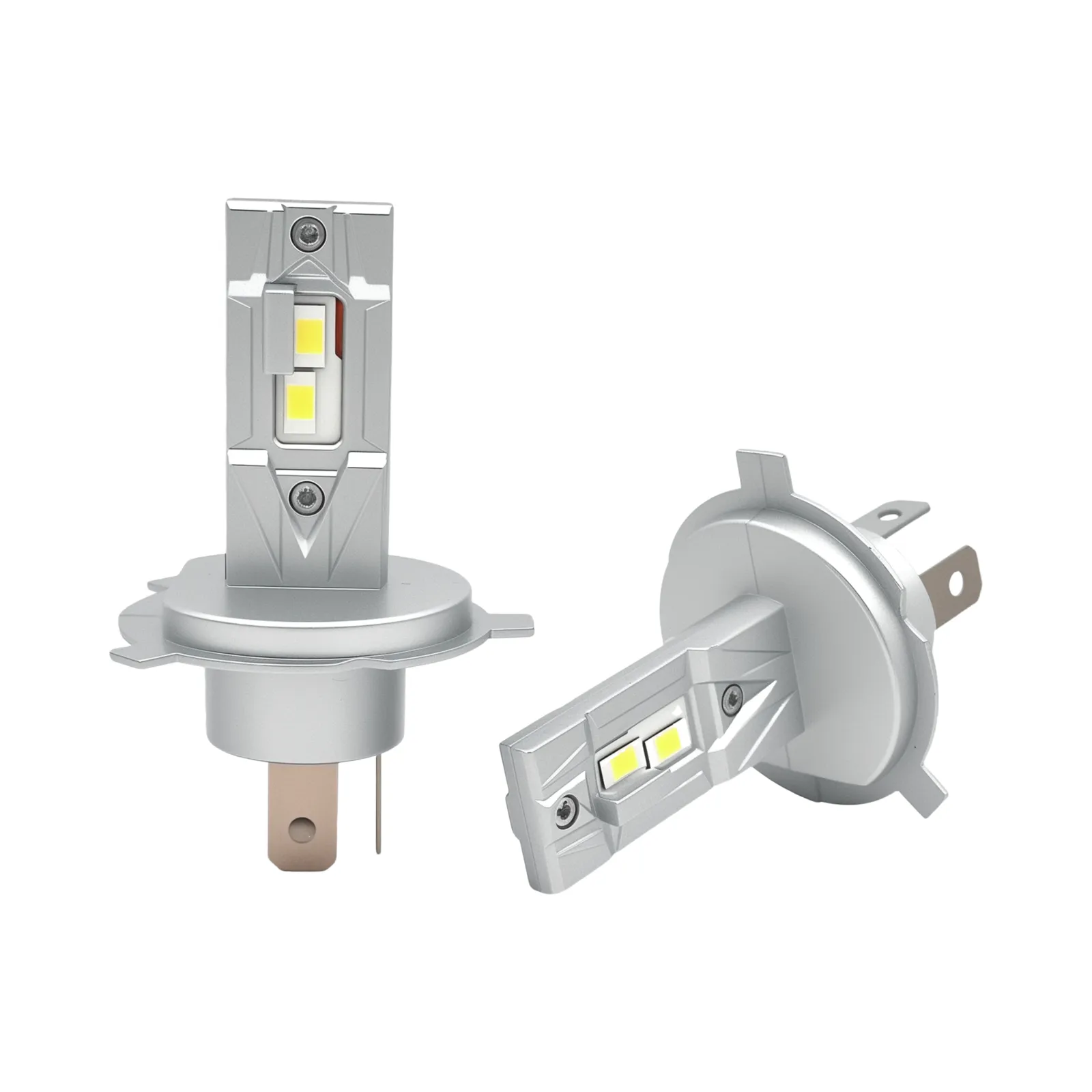

H4
Socket Type

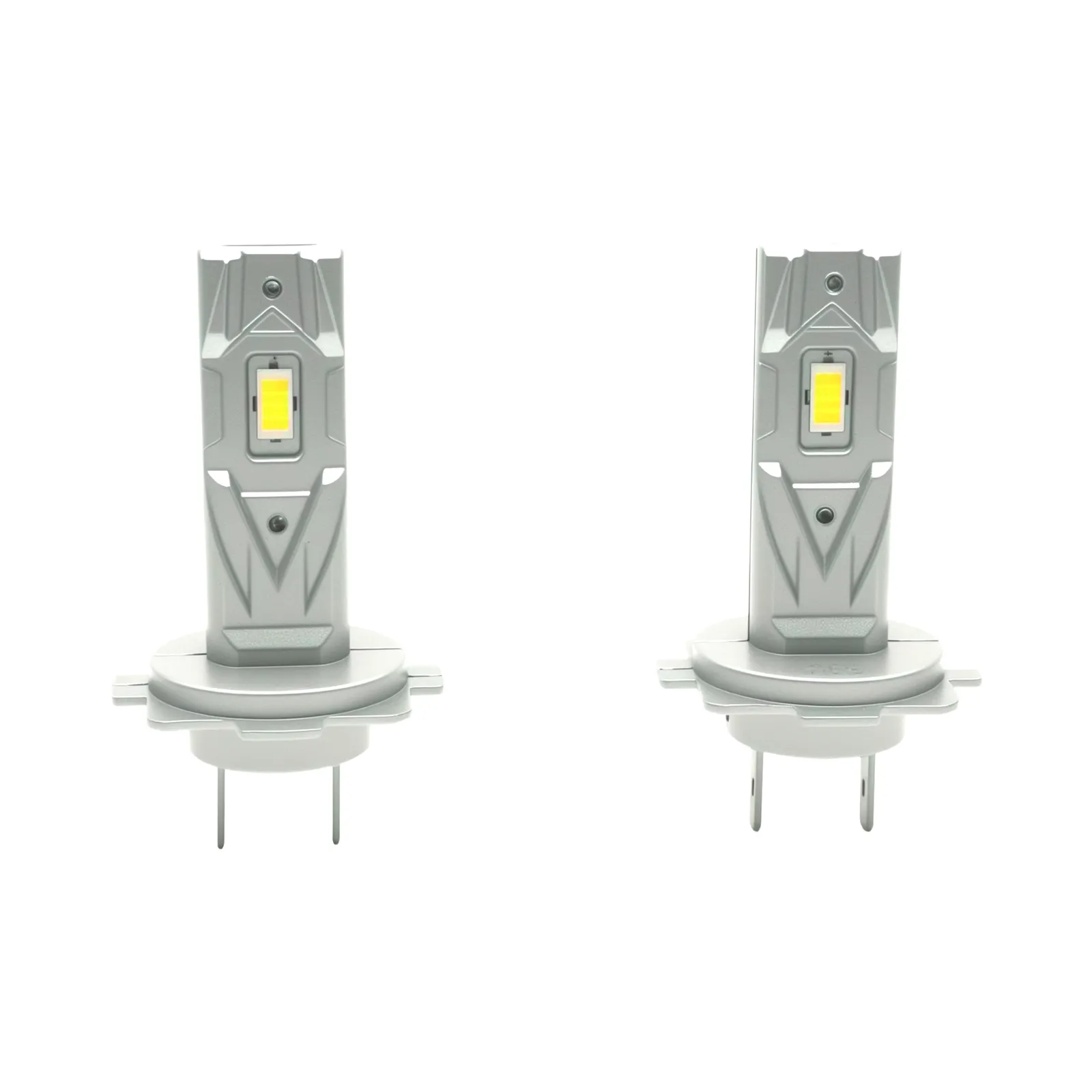

H7
Socket Type

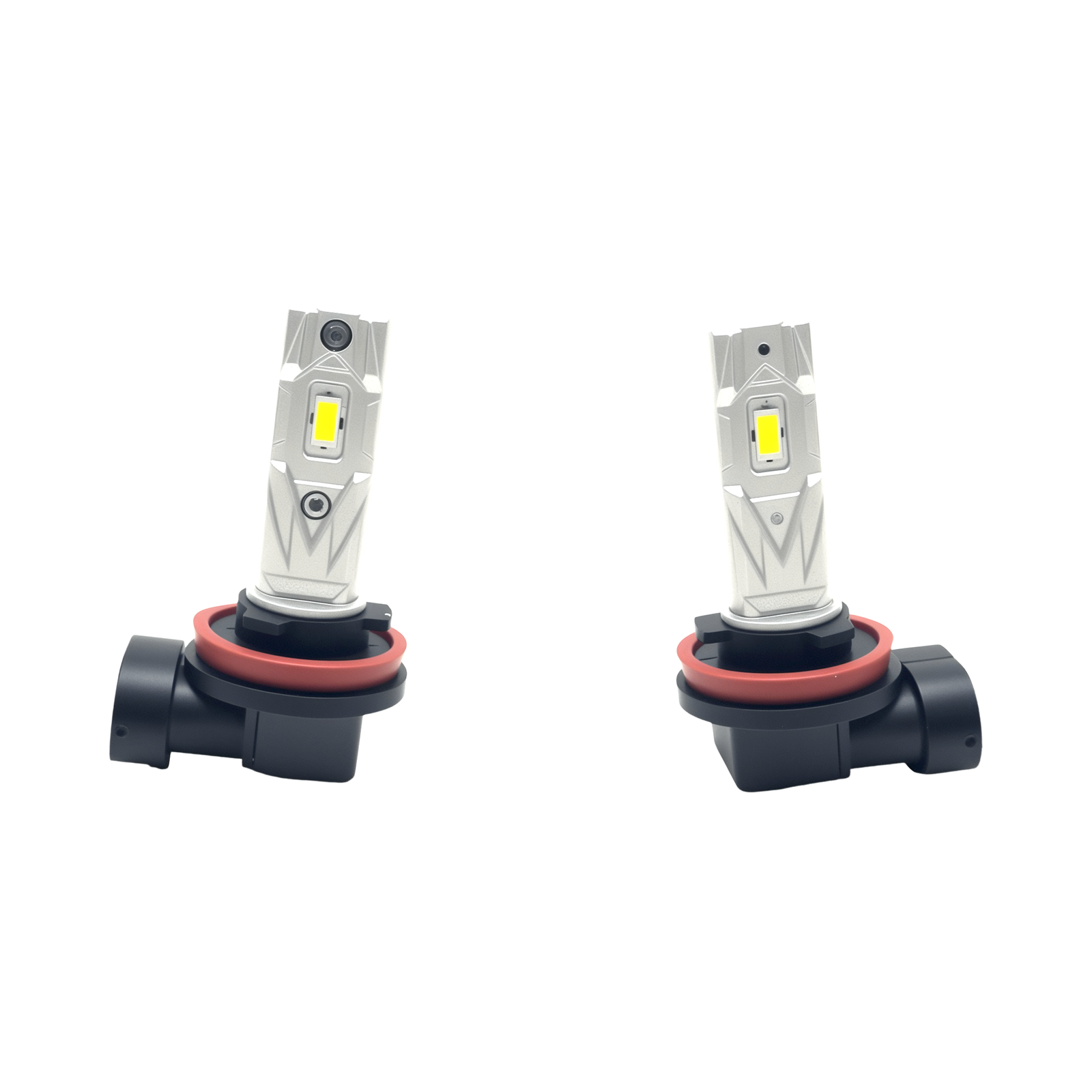

H11
Socket Type

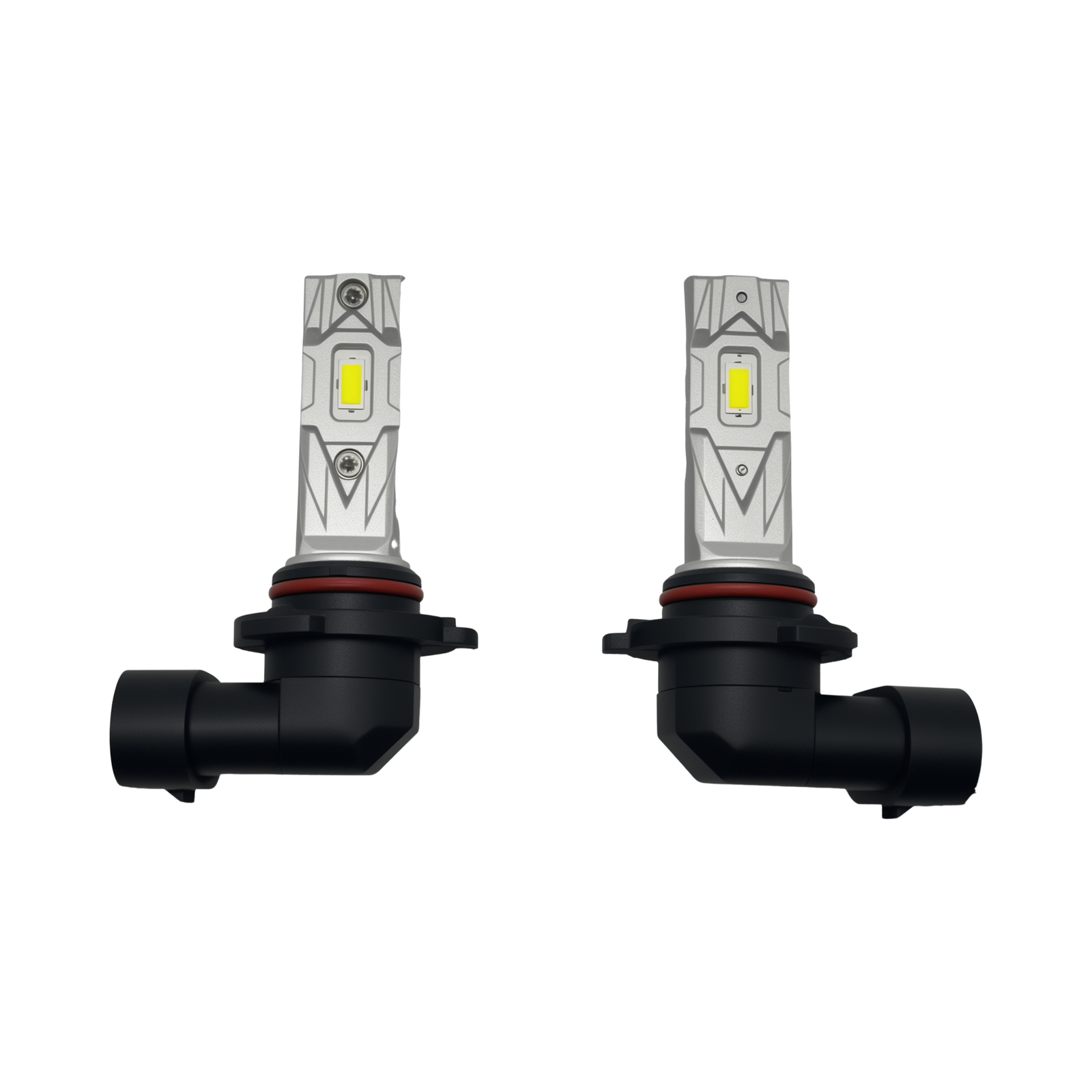

9005
Socket Type
9006
Need Other Specifications?
Beyond the standard V2 series models shown above, we provide comprehensive OEM/ODM services. Other models and custom configurations are available upon request based on your order requirements.
A Fanless Option for Your Replacement Bulb Range
V2 uses an aluminum body to dissipate heat without an internal cooling fan. For distributors building a fanless product range, this provides a configuration without a fan component or fan-generated noise.
Cooling performance still depends on the installation environment. Evaluate samples inside your target headlamp housing, with the intended dust cover fitted, before confirming a bulk specification.
Engineering Note
Thermal management relies entirely on the surface area of the die-cast body. Proper clearance in the headlamp assembly is critical for optimal performance.
Select the Correct Base and Check Installation Clearance
A matching bulb base is the starting point for fitment evaluation. Check rear clearance, retaining clips, dust-cover space, driver placement and electrical behavior in the vehicles you supply.
For H4 enquiries, specify whether you need a single-bulb motorcycle package or a two-bulb automotive package. Availability, voltage suitability and high/low beam operation must be confirmed for the selected configuration.
Send your vehicle make, model, year and original bulb reference.
Send Your Fitment Requirements
Validate Beam Pattern and Operating Power Before Bulk Orders
Test the proposed V2 configuration in representative headlamp housings before building your sales range. Review low and high beam operation where applicable, beam distribution, operating power after warm-up and clearance with the dust cover installed.
Ask for available test information for the exact version you are considering. Compare samples under the same voltage, housing and measurement conditions.
Beam Distribution Analysis
Tested in standard reflector housing
Stabilized Power Data
Measured at 13.5V continuous operation
OEM Branding and Packaging for Your Market
Build your private-label offer around an approved V2 configuration. Discuss logo marking, retail or bulk packaging, label language and pack contents with LEZEN before artwork approval.
Technical changes, including color temperature or driver requirements, should be reviewed separately for feasibility, testing, MOQ and lead time.
Discuss Your OEM Requirements
Start with Samples, Then Confirm Your Trial Order
Share your target market, required base mix and planned quantity. We will confirm the available configuration, sample costs, trial-order terms and production lead time for your enquiry.
Once samples are approved, confirm the specification, packaging and acceptance requirements before production. For repeat orders, keep the approved configuration and packaging reference so changes can be reviewed clearly.
Sample Terms
- • Cost: Paid samples (deductible on bulk order)
- • Lead Time: 3-7 days for standard stock
- • Shipping: Buyer's courier account or prepaid
Bulk Order MOQ
- • Standard Product: Contact for current tier
- • Mixed Bases: Allowed within MOQ limits
- • Laser Logo MOQ: Applicable
OEM Packaging
- • Custom Box MOQ: Usually 1000 sets
- • Artwork: Client provides vector files
- • Manuals: Custom printing available
Production & Warranty
- • Bulk Lead Time: 20-35 days after deposit
- • Warranty: Standard B2B terms apply
- • Claims: Video/photo evidence required
Work Directly with LEZEN Lighting in Foshan
LEZEN Lighting supplies automotive bulbs for B2B customers, including importers, distributors and private-label brands. Discuss your V2 requirements directly with our team, from sample selection to order specifications and packaging.
Before a bulk order, agree on the product configuration and the checks relevant to your market. Ask for available factory information, inspection records and documentation for the selected version.
ISO9001 Certified
Quality Management System
IATF 16949
Automotive Standard
Frequently Asked Questions
Common technical and commercial questions regarding the V2 fanless series.
1. Is V2 supplied as an H4 bulb only?
2. Can V2 replace halogen bulbs in every vehicle?
3. Is V2 CANBUS compatible?
4. Can I order samples or a mixed-base trial order?
5. Can you supply my own logo and packaging?
6. What documents are available for V2?
7. What are the warranty and delivery terms?
Request Your V2 Wholesale Quote
Tell us what you plan to stock. Share your target market, required bases, quantity and packaging needs so we can prepare a relevant V2 quotation.
