Direct Factory Wholesale: Error-Free CANbus LED Headlights
Advanced linear-driven circuit design for zero radio interference, ultra-low failure rates, and maximum wholesale profit margins. Built for global automotive lighting distributors and OEM/ODM brands.
Why Choose LEZEN Linear-Driven LED Headlights?
100% Zero Radio Interference (EMI Free)
Unlike traditional switching drivers that cause annoying static on car radios, our advanced linear constant-current design operates with zero high-frequency switching noise. Fully compliant with CISPR 25 Class 3 standards.
Minimalist Circuit = Ultra-Low RMA Rate
By eliminating bulky inductors and electrolytic capacitors, our linear solution reduces potential component failure points by 40%. You get a highly reliable bulb that minimizes costly after-sales returns.
Smart Thermal Rollback Protection
Equipped with an intelligent temperature control IC, the bulbs automatically adjust current if extreme overheating is detected. This ensures continuous, safe operation and extends lifespan beyond 30,000 hours.
Highly Competitive Cost Structure
The streamlined linear component architecture allows us to offer premium performance at a factory-direct price, significantly maximizing your local market competitiveness and retail margins.
Advanced CANbus Decoding: Say Goodbye to Dash Errors
Our built-in smart linear CANbus decoder precisely mimics the power impedance of original halogen bulbs, ensuring seamless integration with the vehicle's electronic control unit (ECU).
Eliminates 95%+ of Dashboard Error Codes
No more annoying bulb-out warnings or false system alerts on modern dashboards.
Prevents Flickering & Hyper-Flashing
Delivers smooth, continuous light output without pulsing, even on sensitive PWM systems.
Fixes Computer Lockout Issues
Prevents the "one side shuts off" automatic safety shut-down triggered by sensitive vehicular computers.
Vehicle Compatibility
High-accuracy calibration optimized for demanding 12V passenger cars, including complex American, European, and Asian vehicle systems.
Product Specification Matrix
Transparent hardware configurations to help you target different market segments effectively.
| Specification | V5 Series Premium Choice | V4 Series Value Choice |
|---|---|---|
| Market Positioning | High-Power & High-Brightness Performance | Ultra-Stable & High Cost-Performance |
| Starting Power | 70W / Pair | 60W / Pair |
| Stable Power (Real Output) | 56W - 60W (Constant) | 46W - 50W (Constant) |
| Thermal Structure | Single Copper Heat Pipe + Aviation Aluminum | Super-Conductive Copper PCB + Aviation Aluminum |
| Driver Scheme | Advanced Linear Constant-Current IC | Advanced Linear Constant-Current IC |
| Available Sockets | H1, H4, H7, H11, 9005, 9006, 9012, etc. | H1, H4, H7, H11, 9005, 9006, 9012, etc. |
| Operating Voltage | DC 9V - 16V (Optimized for 12V Cars) | DC 9V - 16V (Optimized for 12V Cars) |
| CANbus Rate | 98%+ Error-Free Integration | 95%+ Error-Free Integration |
| Cooling Mechanism | 12,000 RPM Silent Turbo Fan | 12,000 RPM Silent Turbo Fan |
| EMI/Radio Standard | CISPR 25 Class 3 Compliant (Zero Static) | CISPR 25 Class 3 Compliant (Zero Static) |
Reliable Thermal Engineering
Because linear solutions dissipate excess voltage as heat, LEZEN implements two precision-engineered thermal architectures to guarantee long-term luminous stability, matching the specific power output of each series.
V5 Series: Single Copper Heat Pipe
To support a high stable output of 28W-30W, the V5 incorporates a built-in single liquid-cooled copper heat pipe. It instantly transfers thermal energy away from the LED chips to the cooling base, preventing light decay and maintaining peak brightness under heavy load.

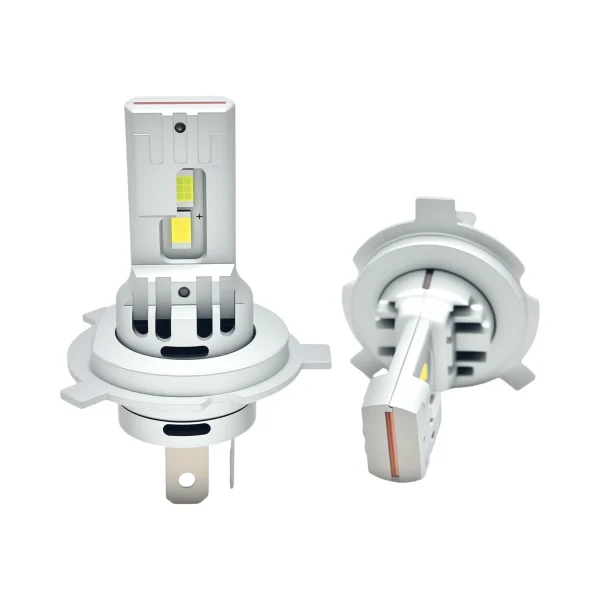

V4 Series: Super-Conductive Copper PCB
Optimized for a stable output of 23W-25W, the V4 utilizes a heavy-duty copper substrate (PCB). It provides outstanding thermal conductivity at a highly competitive production cost, making it the perfect choice for volume wholesale markets without compromising safety.
Shared Active Protection
Both series feature a 12,000 RPM high-speed silent turbo fan paired with our intelligent thermal rollback IC. This dual-action active cooling ensures consistent operation and prevents catastrophic failure under any extreme climate condition.
OEM/ODM Customization Services for Wholesalers
Partner with LEZEN to build and scale your own automotive lighting brand. We provide flexible supply chain support designed specifically for high-volume B2B distributors.
-
1
Laser Logo Branding
Free high-precision logo printing on bulb bases with low Minimum Order Quantity (MOQ) requirements to help establish your brand identity.
-
2
Custom Packaging Design
Tailored box layouts and structural designs to match your local retail market aesthetics and compliance requirements.
-
3
100% Full Factory Inspection
Every single bulb undergoes strict aging tests and optical calibration before dispatch, ensuring zero DOA (Dead on Arrival) shipments.
Ready to Boost Your Automotive Lighting Business?
Tell us your required socket types and estimated order volume. Our product specialists will send you a detailed wholesale price list and sample policy within 12 hours.
