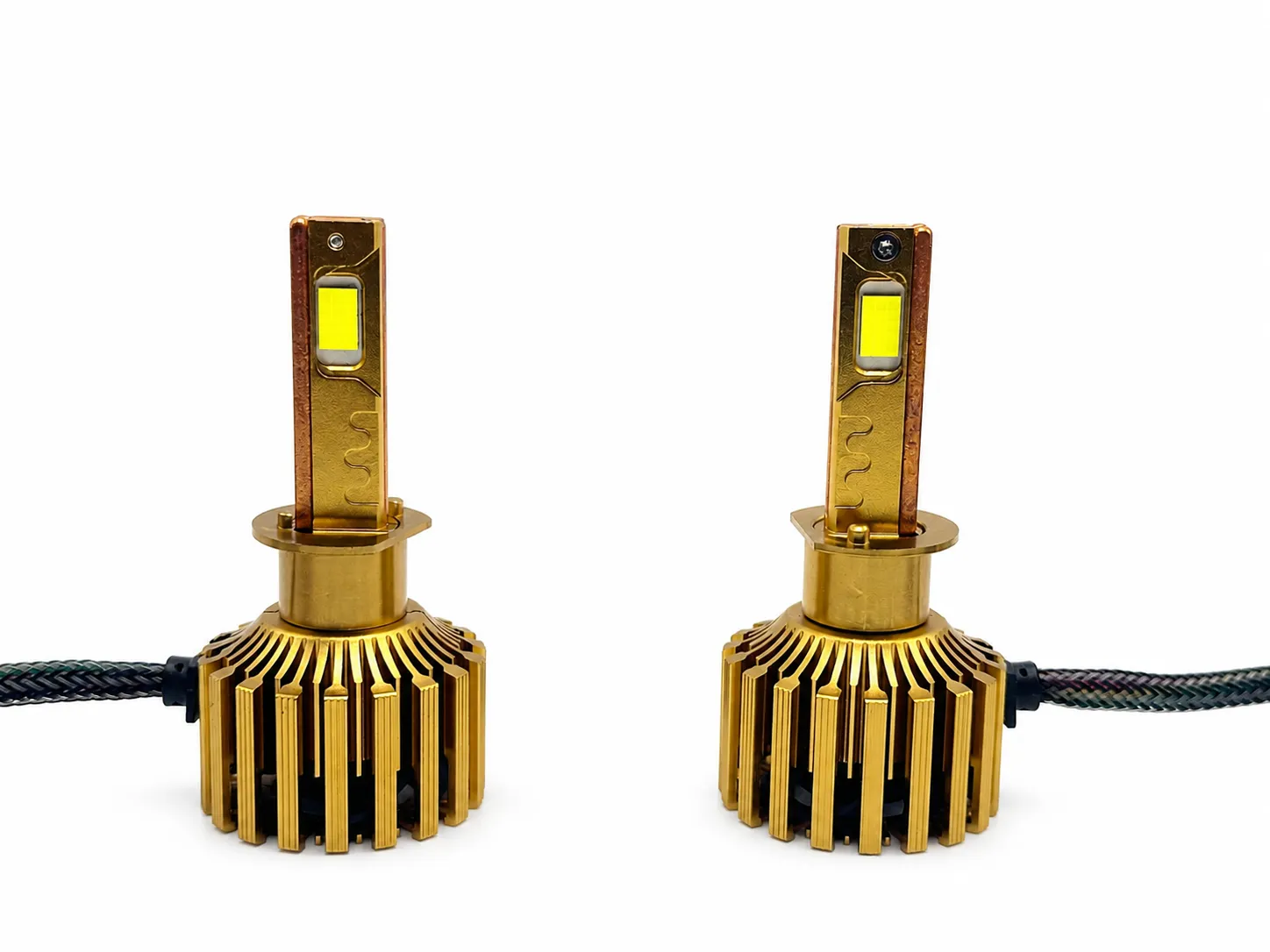

M38 H1
- Beam: Single Beam
- Application: High Beam / Fog
- Packaging: 30 Sets/Carton
Premium Wholesale Series
M38 300W LED Headlight Bulbs for Wholesale
Maximum-output 5080 CSP LED headlight series engineered for automotive lighting distributors, importers, and private-label brands requiring top-tier performance.
Power
300W/Pair
Chipset
5080 CSP
Cooling
3 Copper Pipes
Driver
External

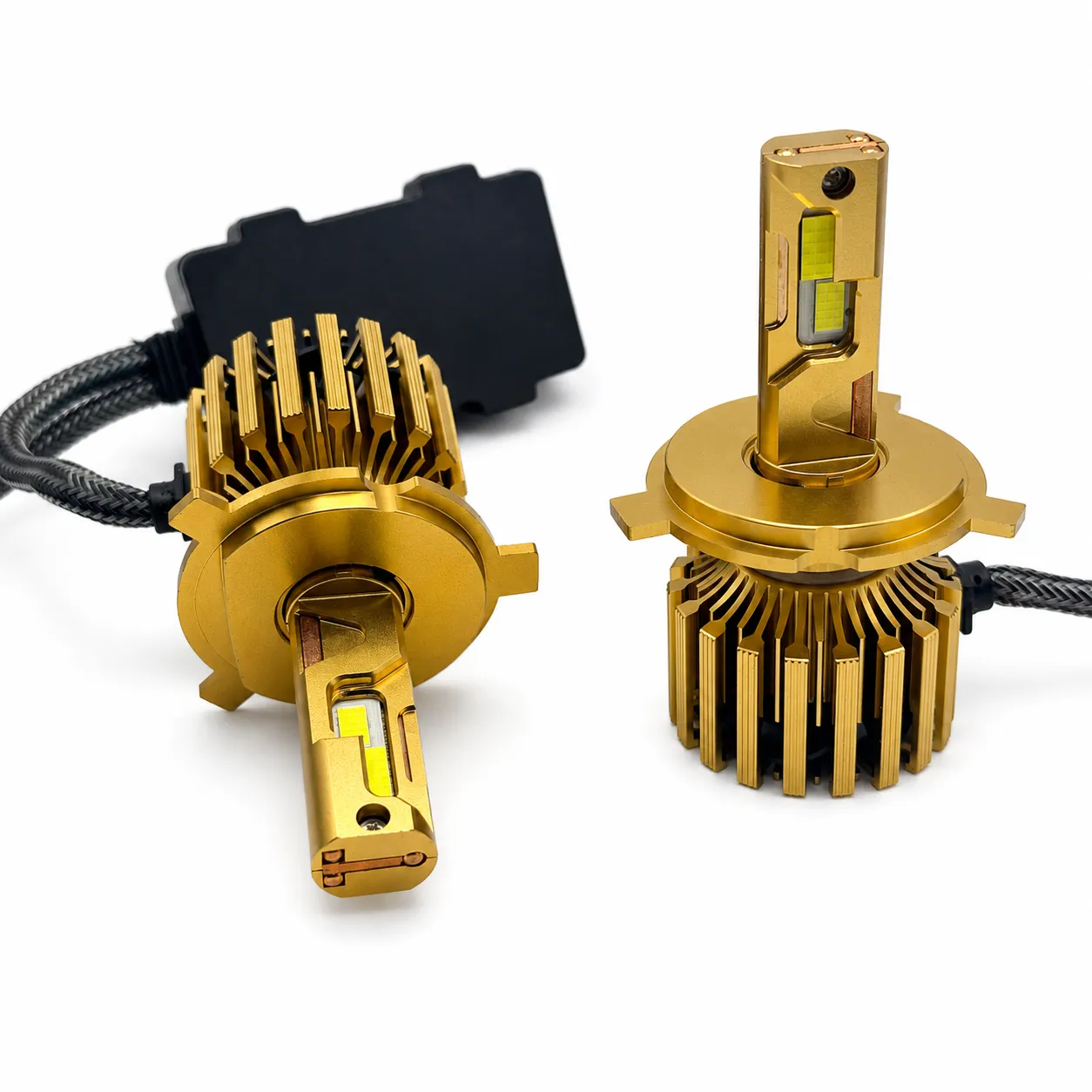

M38 Bulb Pair

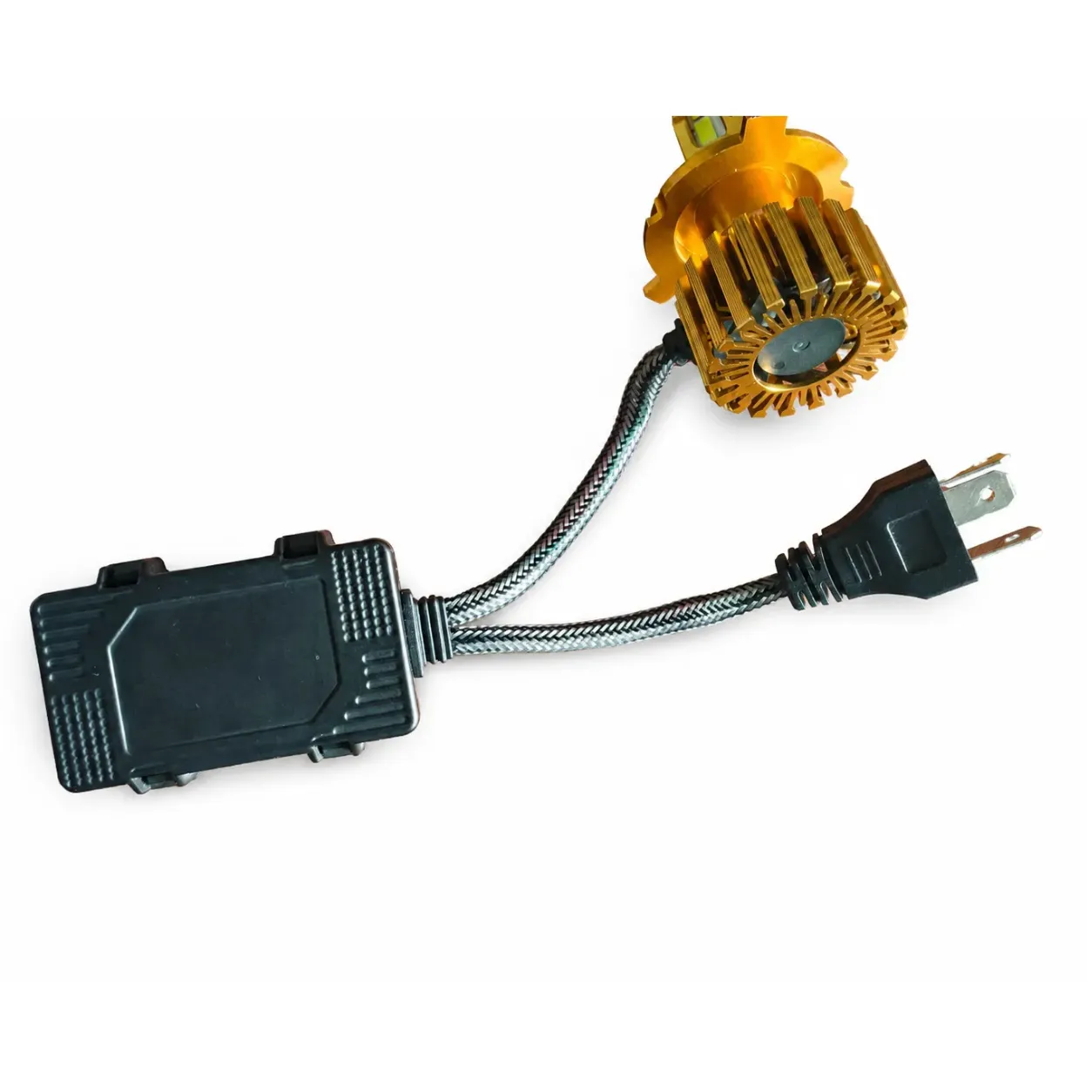

External Driver

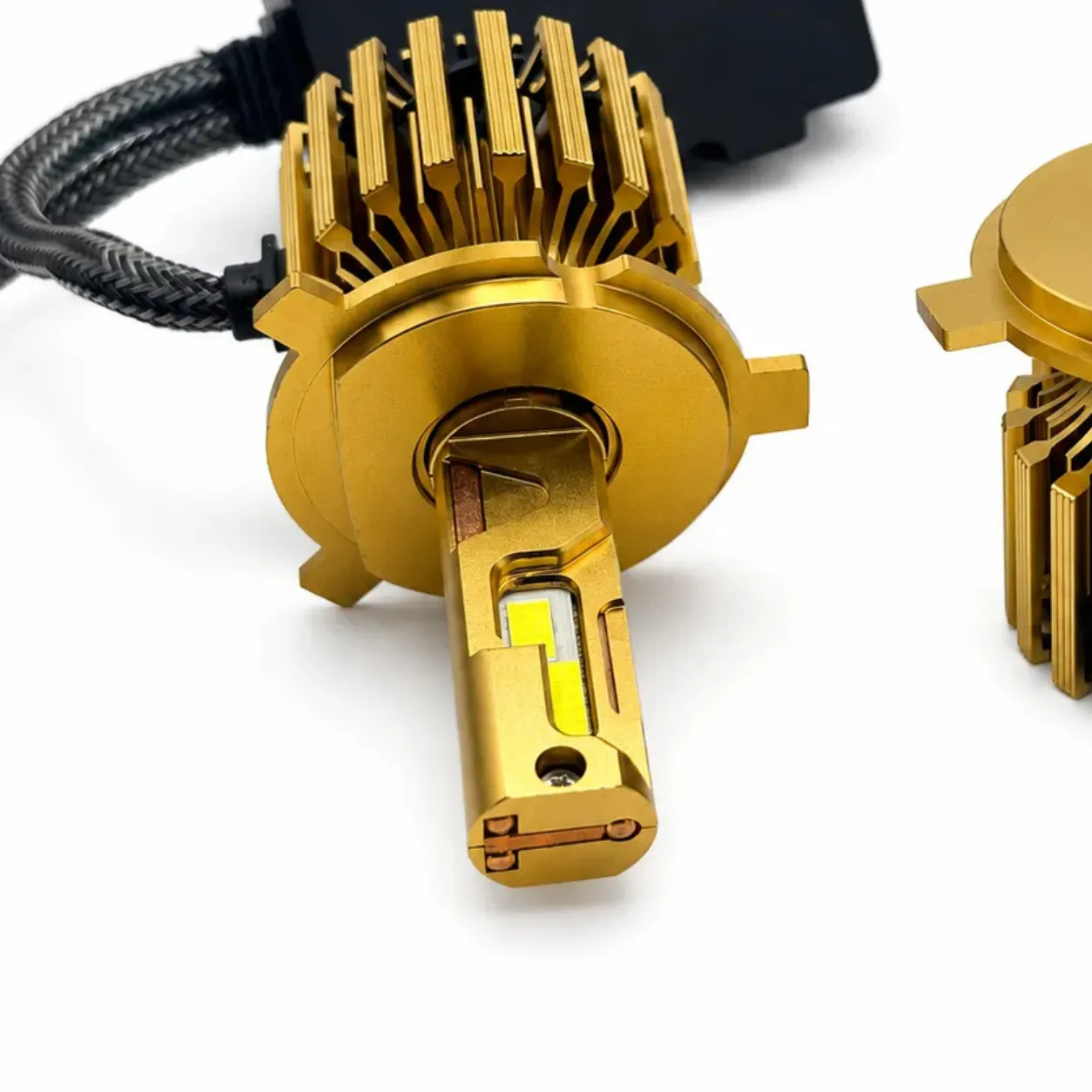

3 Copper Pipes
5080 CSP Chip
Available M38 Bulb Bases
Select the required bulb models for your market. All models feature the same 300W/Pair core architecture.
Best Seller

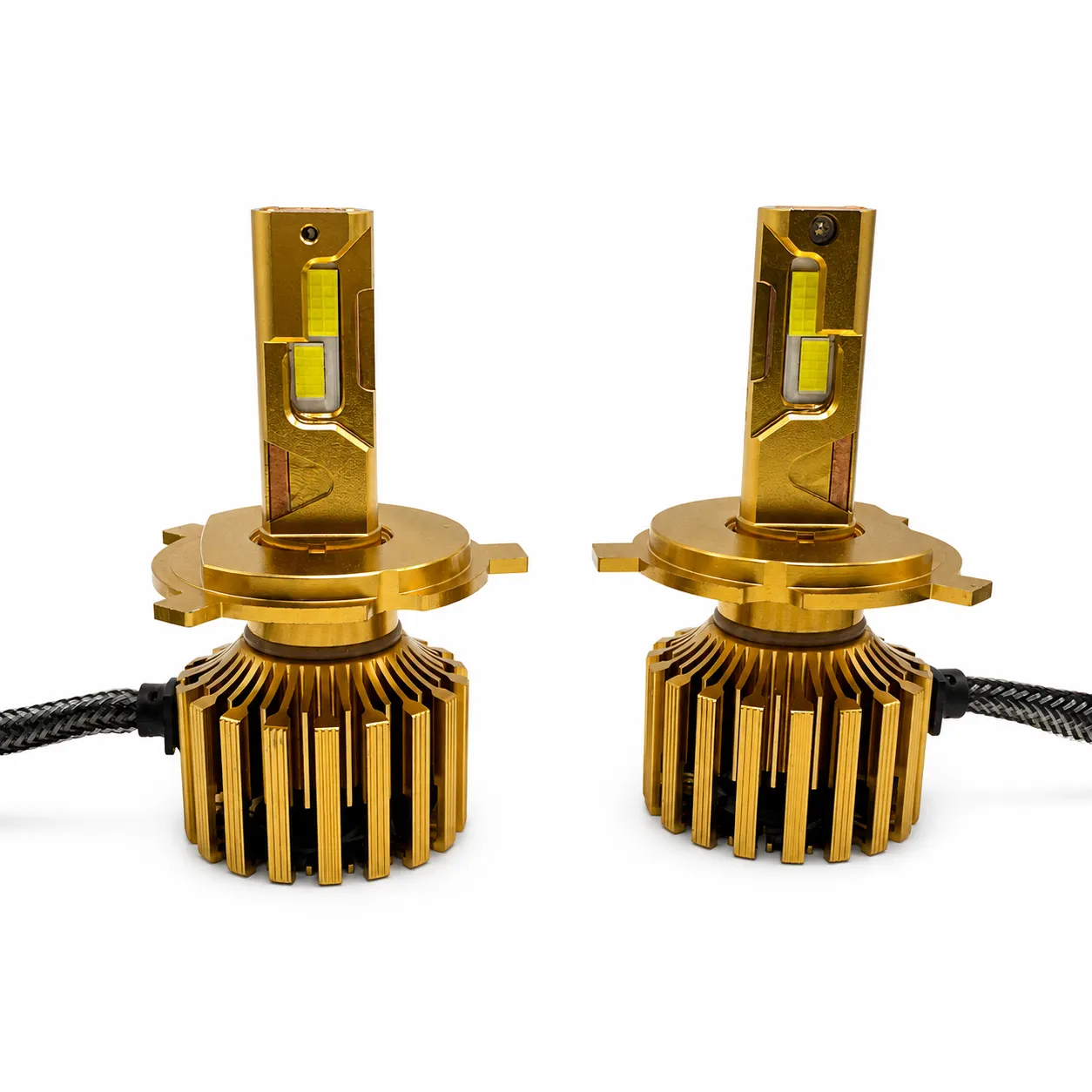

M38 H4 / 9003
- Beam: High/Low Dual Beam
- Application: Main Headlight
- Packaging: 30 Sets/Carton
Best Seller

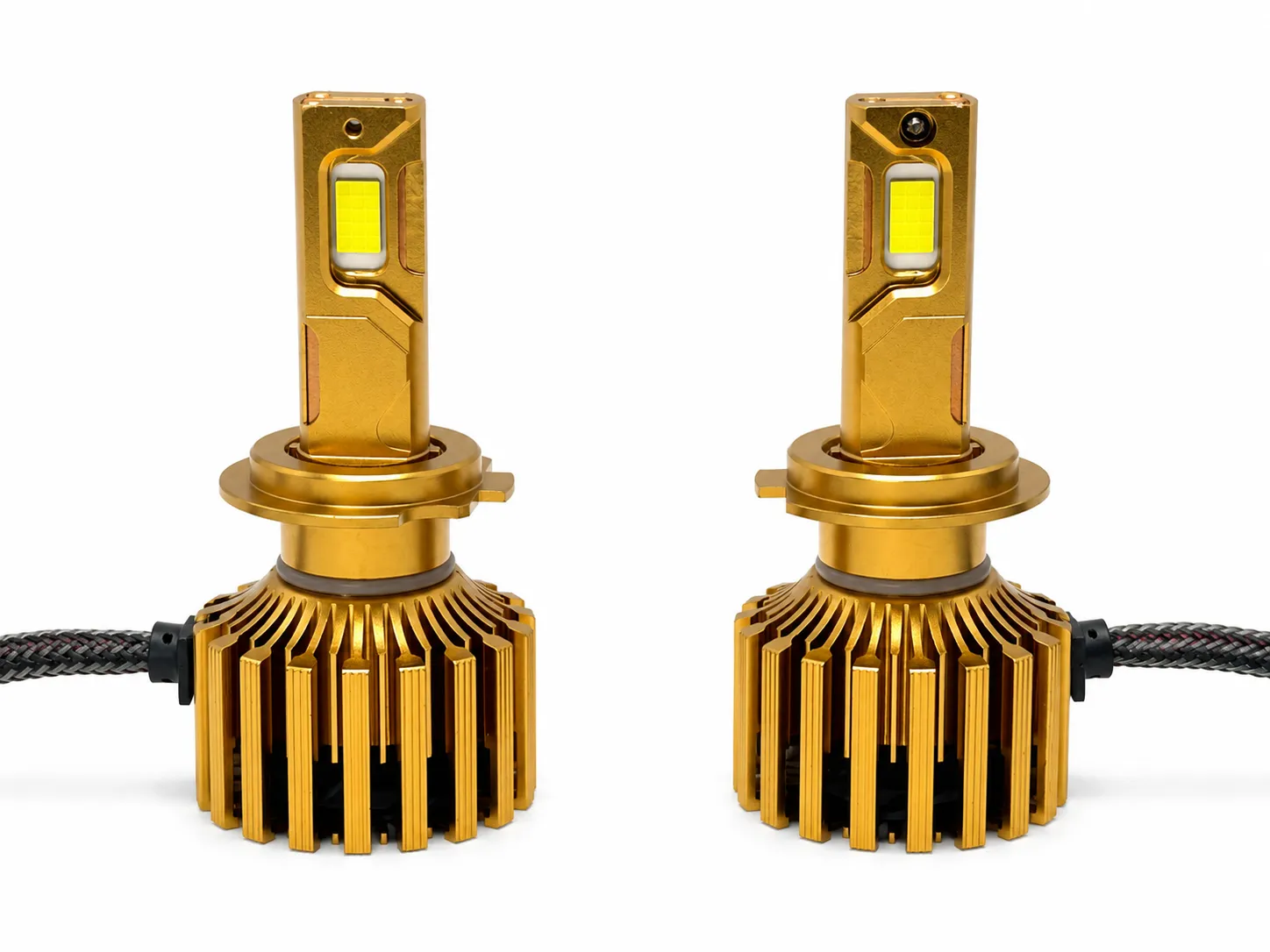

M38 H7
- Beam: Single Beam
- Application: Low Beam / High Beam
- Packaging: 30 Sets/Carton

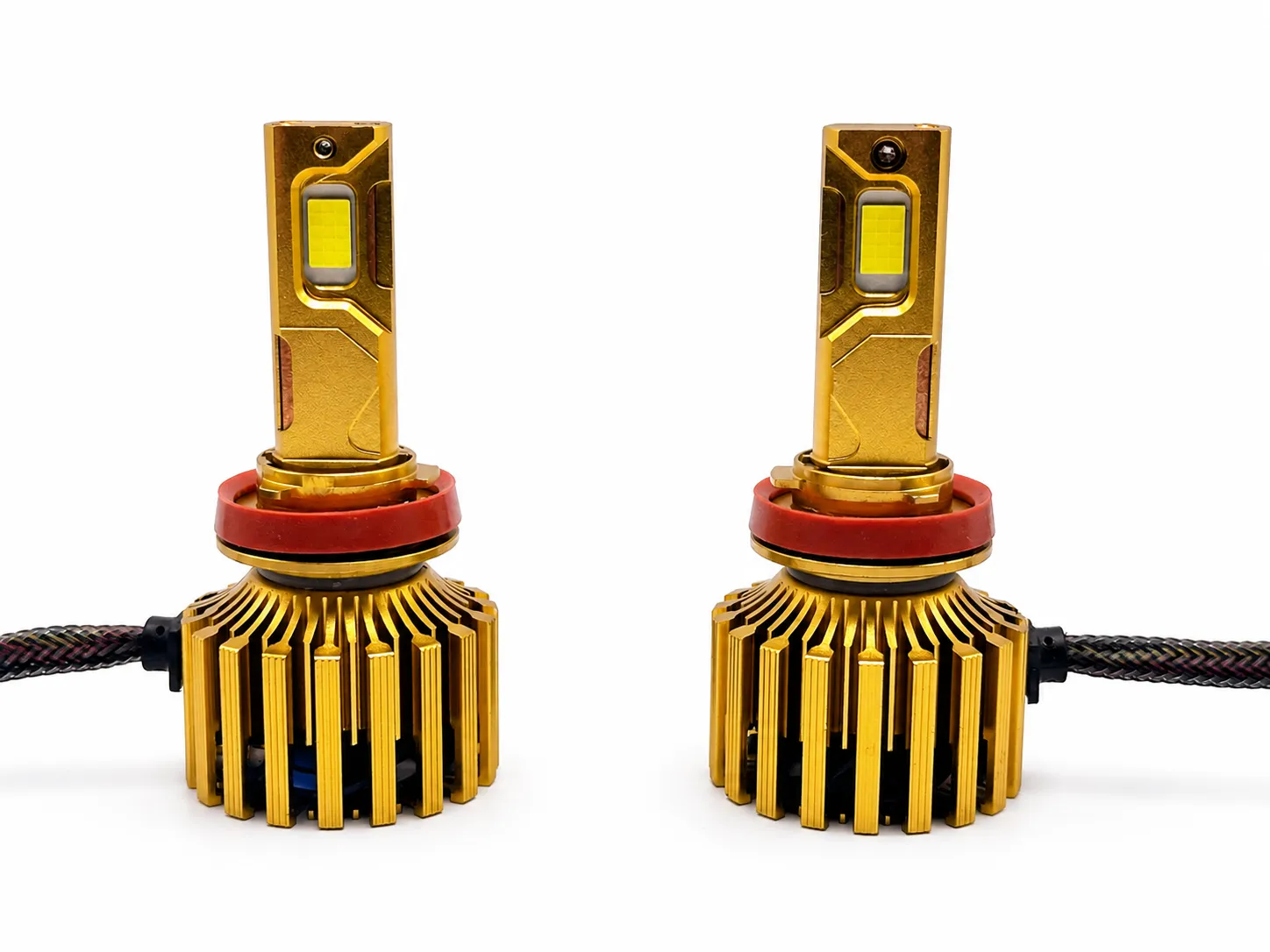

M38 H8/H9/H11
- Beam: Single Beam
- Application: Low Beam / Fog
- Packaging: 30 Sets/Carton

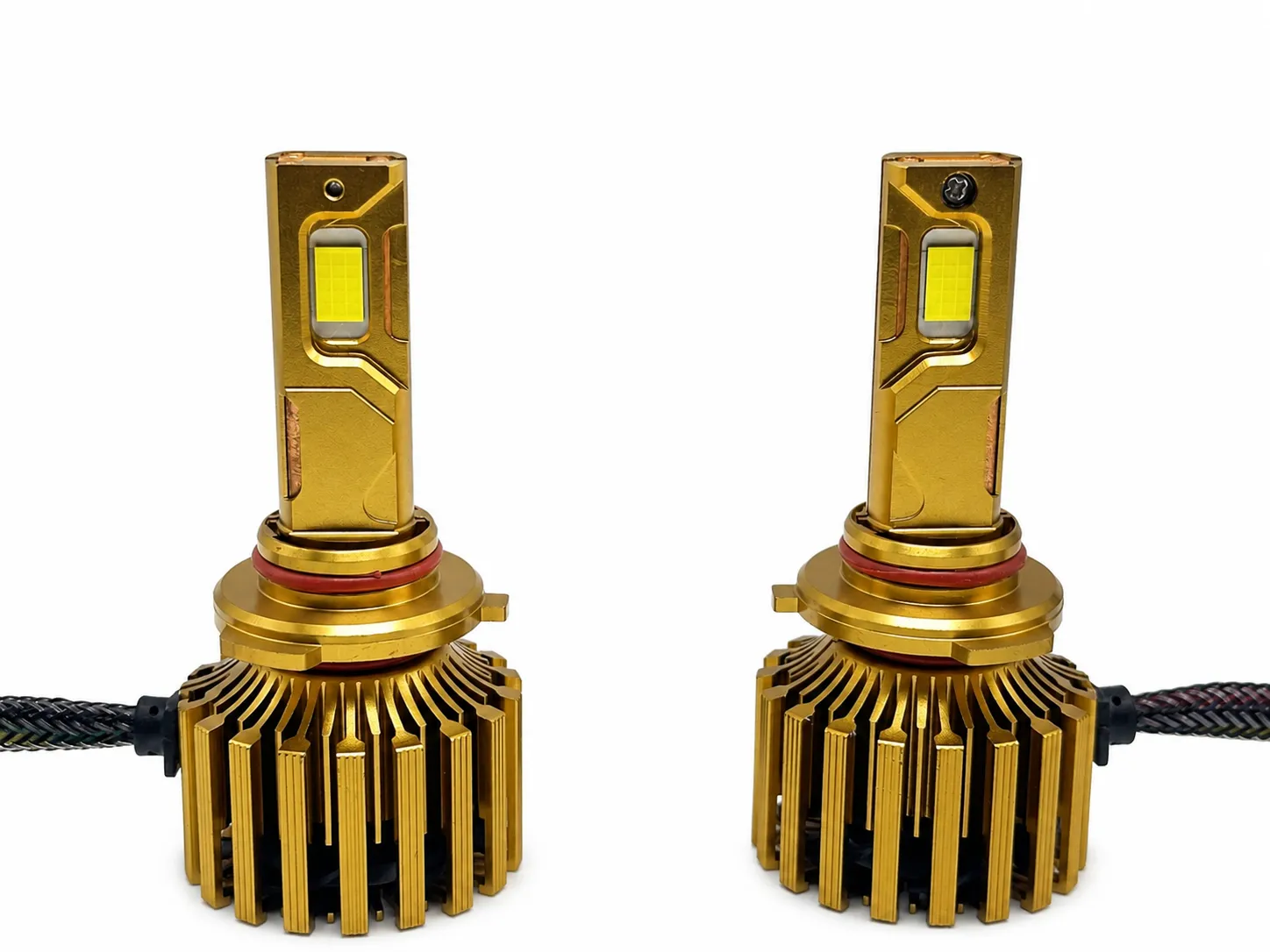

M38 9005 / HB3
- Beam: Single Beam
- Application: High Beam
- Packaging: 30 Sets/Carton

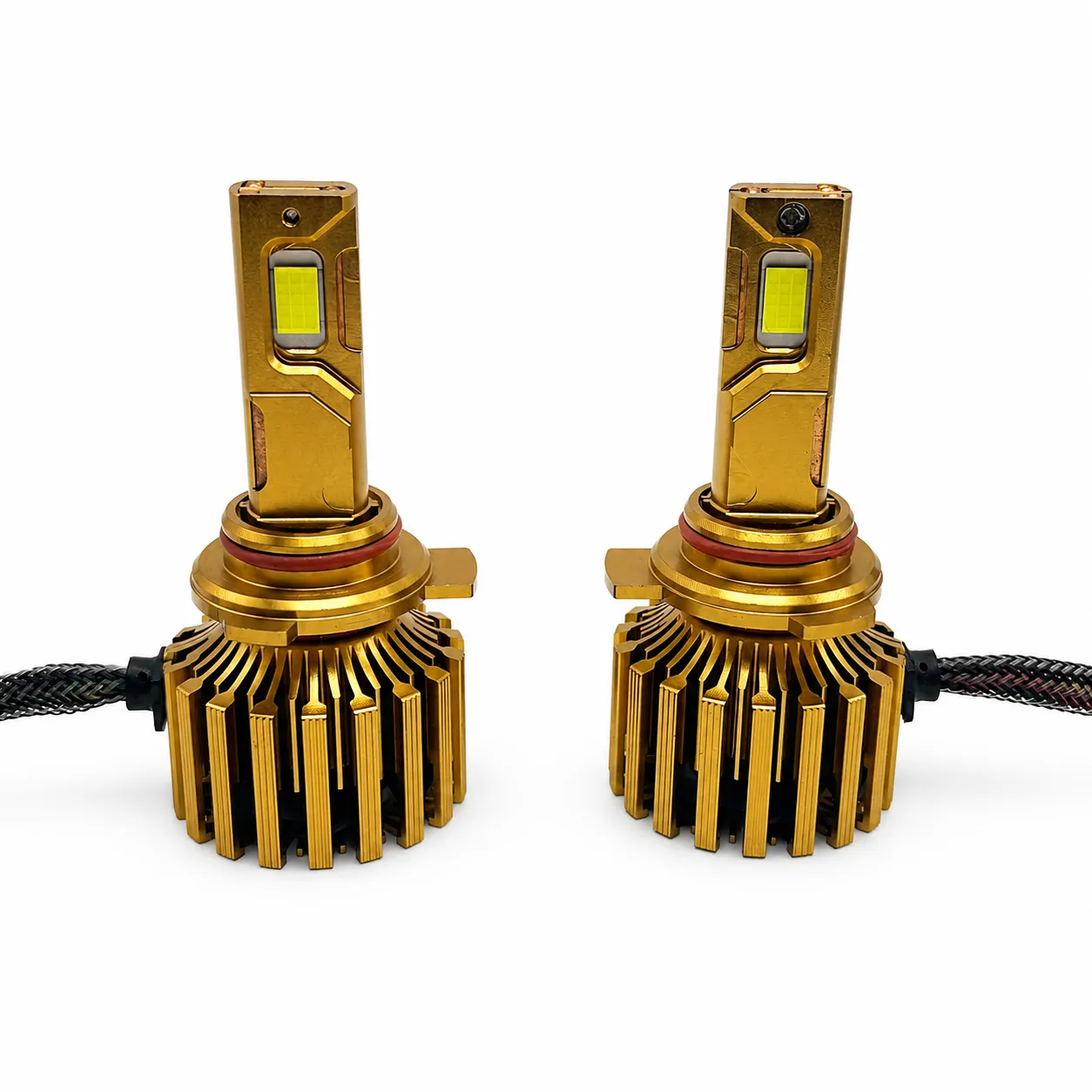

M38 9006 / HB4
- Beam: Single Beam
- Application: Low Beam / Fog
- Packaging: 30 Sets/Carton
M38 LED Headlight Specifications
Transparent, verified data for professional buyers. We separate peak startup power from continuous stable power to ensure you know exactly what you are purchasing.
| Pair Power (Nominal) | 300W / Pair |
|---|---|
| Power Per Bulb | 150W / Bulb |
| Startup Power (Tested) | 155W (at 13.5V) |
| Stable Power (30 min) | 95W - 100W (at 13.5V) |
| Luminous Flux (Stable) | 16,000 LM / Bulb (Tested) |
| LED Chipset | Automotive Grade 5080 CSP |
| Cooling Architecture | 3 Liquid Copper Pipes + High-Speed Fan + Aluminum Body |
| Driver Type | External Intelligent Temperature Control Driver |
| Operating Voltage | DC 12V / 24V (Compatible with Cars & Trucks) |
| Color Temperature | 6500K Cool White |
Why Real Data Matters
Many suppliers exaggerate specifications. At LEZEN, we provide actual power meter and lux meter readings to ensure our wholesale partners can confidently guarantee performance to their retail networks.
Tested Output, Cooling & Beam Performance
Verified factory testing data proving the reliability and superior illumination of the M38 series.
Power Stability Test
- Initial Startup: 150W (0 mins)
- 5 Min Mark: 100W
- 30 Min Mark: 95-100W (Stable)
- Test Env: 25°C Ambient, 13.5V
Maintains over 85% of startup power continuously, outperforming standard single-pipe designs.
Thermal Management
- Structure: 3x Liquid Copper Pipes
- Fan Speed: 12,000 RPM Turbo
- Body Temp (30m): < 95°C
- Driver Temp (30m): < 85°C
The triple-pipe system rapidly transfers heat away from the 5080 CSP chips, preventing premature burnout.
H4 Beam Pattern Test
- Low Beam: Sharp cut-off line, no glare
- High Beam: Focused center hotspot
- Comparison: 600% brighter than Halogen
- Dark Spots: Zero dark spots
1:1 halogen filament position ensures perfect compatibility with standard reflector housings.
M38 vs. M38S: Which Series Fits Your Market?
Understanding the distinct positioning between our two flagship high-power models to optimize your inventory.
| Feature | M38S Series | M38 Series (This Model) |
|---|---|---|
| Market Positioning | Premium Output | Maximum Output Flagship |
| Nominal Power | 280W / Pair | 300W / Pair |
| Stable Power (Tested) | 85~95W / Bulb | 95~100W / Bulb |
| Cooling System | 3 Copper Pipes + Fan | 3 Copper Pipes + Fan (Larger Heatsink) |
| LED Chip | 5080 CSP | 5080 CSP |
| Best Suited For | Premium product lines balancing high power with compact size. | Buyers demanding the absolute highest output and largest profit margins. |
Check Fitment Before Bulk Ordering
M38 bulb compatibility depends on the original bulb base, headlamp housing space, dust-cover clearance, and vehicle electrical system. Minimizing aftermarket returns starts with correct fitment.
-
Housing Space (External Driver) The M38 features a larger heatsink and an external driver to handle 300W. Ensure the target vehicle housing has sufficient depth. Extended dust covers may be required for compact housings.
-
CANBUS Systems While highly compatible, certain sensitive European or late-model American vehicles may still require external CANBUS decoders to prevent dashboard errors or flickering.
-
Adjustable Beam (360°) The mounting collar is 360-degree rotatable (on most bases) allowing installers to perfectly align the LED chips horizontally (3 o'clock and 9 o'clock) for optimal beam patterns.
Build Your Own M38 Product Line
Leverage LEZEN's manufacturing capabilities to launch the M38 under your own brand name. We provide end-to-end OEM and ODM services.
Laser Engraving
Custom laser-etched brand logos on the aluminum bulb body and external driver casing.
Custom Packaging
Design your own rigid retail boxes, blister packs, manuals, and barcode labels.
Body Color
Customize the anodized aluminum color of the heatsink to match your brand identity.
Marketing Support
High-resolution product images, testing videos, and technical data sheets for your website.
Wholesale & Trial Order Information
Samples
Available
Paid samples available for quality testing before bulk orders.
Standard MOQ
50 Sets
Low minimum order quantity for standard unbranded packaging.
OEM MOQ
500 Sets
Required for custom laser logo and tailored color box packaging.
Lead Time
3 - 15 Days
Depends on order volume and custom packaging requirements.
Warranty
12 - 24 Months
Defective items replaced in the next order upon video proof.
Packaging
2 Bulbs / Box
Standard carton contains 50 pairs. Secure foam inserts.
Shipping
EXW / FOB
Shipped from Guangzhou/Shenzhen, or directly to your forwarder.
Payment
T/T, Western Union
30% deposit required for production, 70% balance before shipment.
Manufactured & Tested by LEZEN
As a primary manufacturer since 2010 (ISO9001, IATF16949 certified), LEZEN maintains strict quality control specifically tailored for high-power models like the M38.
- 100% Aging Test (Minimum 2 Hours) before packaging.
- Automated Optical Inspection (AOI) for CSP chip placement.
- Integrating Sphere testing for accurate lumen verification.
- High/Low temperature environmental shock testing.
Frequently Asked Questions & Wholesale Inquiry
Get answers to common B2B questions or submit your requirements for an immediate quote.
M38 FAQs
How is the 300W calculated?
The 300W rating refers to the combined nominal peak power of a pair of bulbs (150W per bulb). As shown in our test data, the actual stable operating power after 30 minutes is approximately 95W-100W per bulb to ensure thermal safety and longevity.
Can I mix different bulb bases in one trial order?
Yes, you can mix different bases (e.g., H4, H7, 9005) within a single standard MOQ order (50 sets total). This allows you to test multiple models in your market simultaneously.
Do these bulbs require external CANBUS decoders?
The M38 has a built-in intelligent driver that handles 90% of vehicle systems without error. However, for certain sensitive vehicles (like newer Dodge, Jeep, or German models), an external CANBUS decoder may still be required. We supply these decoders separately.
How does the warranty replacement work?
We offer a straightforward warranty. If a bulb fails within the warranty period, simply cut the wire, take a photo/video showing the serial number, and we will include the replacement free of charge in your next bulk shipment. No need to ship defective units back to China.
