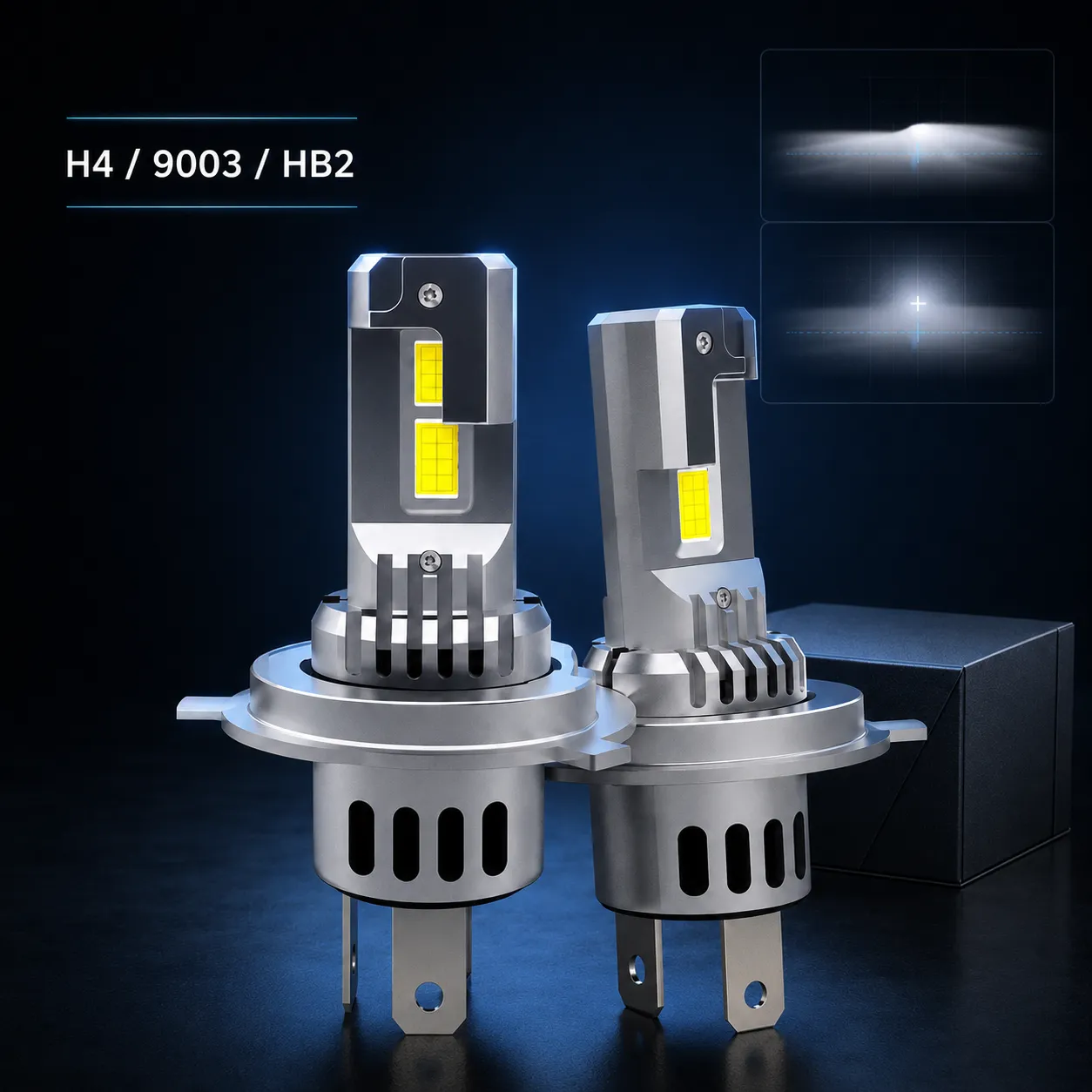

Wholesale H4 LED Headlight Bulbs for Your Market
From compact fanless bulbs to CANBUS, high-output and multi-color models, LEZEN helps automotive lighting distributors select and customize reliable H4 high/low beam solutions.
- 15+ Years Automotive Lighting Experience
- OEM/ODM & Private Label Support
- Sample Orders for Market Testing
- 100% Tested Before Shipment
For importers, distributors, wholesalers and automotive lighting brands.
Quick H4 Inquiry
What Is an H4 LED Headlight Bulb?
H4, also known as 9003 or HB2 in many markets, is a dual-beam headlight bulb that combines low beam and high beam functions in one bulb. Because both beam functions share the same reflector, the position of the LED chips, shielding structure and mounting collar directly affect beam focus, cutoff and glare control.
H4 / 9003 / HB2 & H19
H4, 9003 and HB2 are commonly interchangeable, with a universal H4/H19 adjustable base. Confirm the circuit and application before bulk ordering.

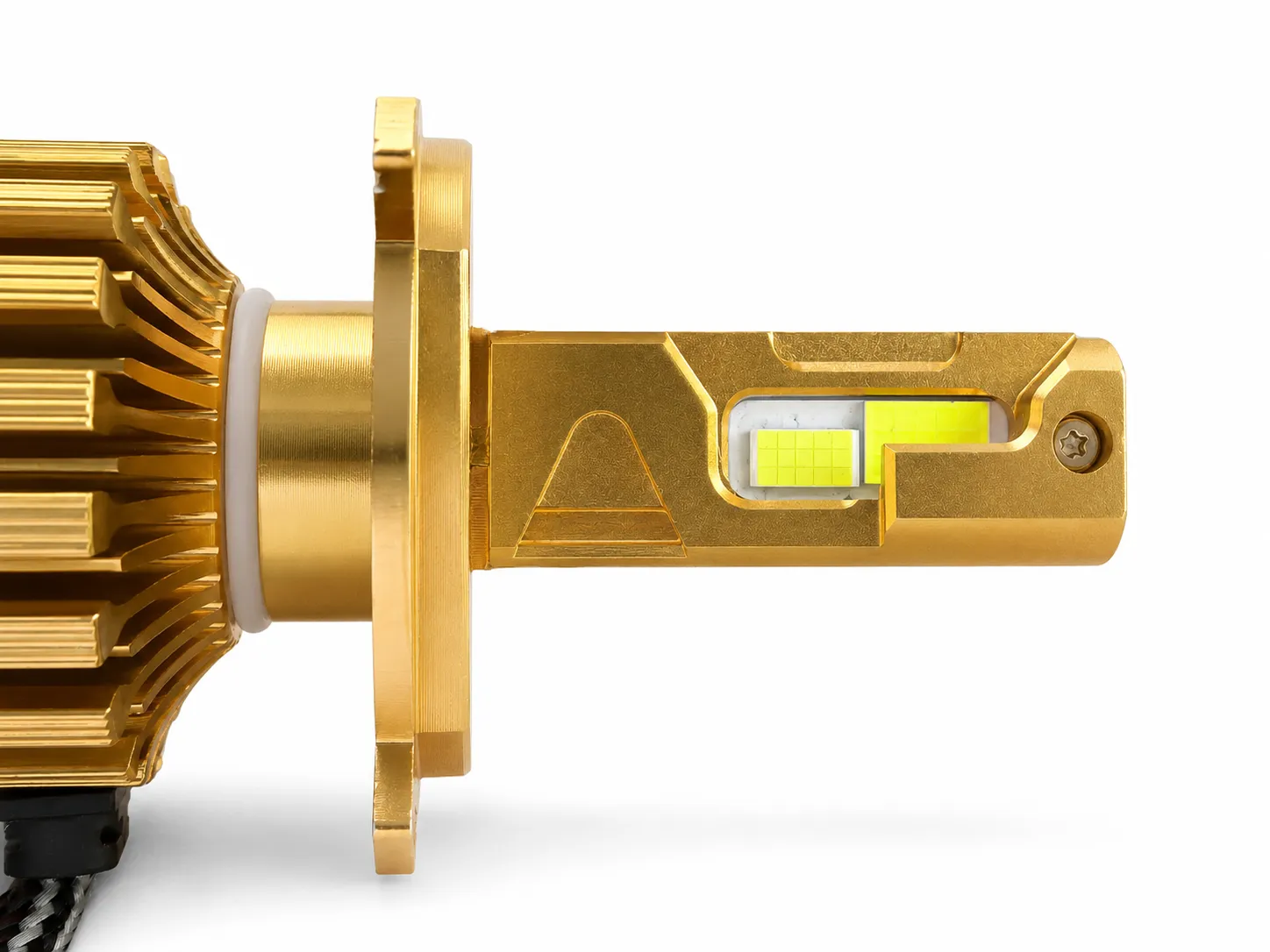

High & Low Beam in One Bulb
- Low-beam chips (front, usually shielded)
- High-beam chips (rear)
- Light shield (crucial for cutoff)
- P43t mounting base

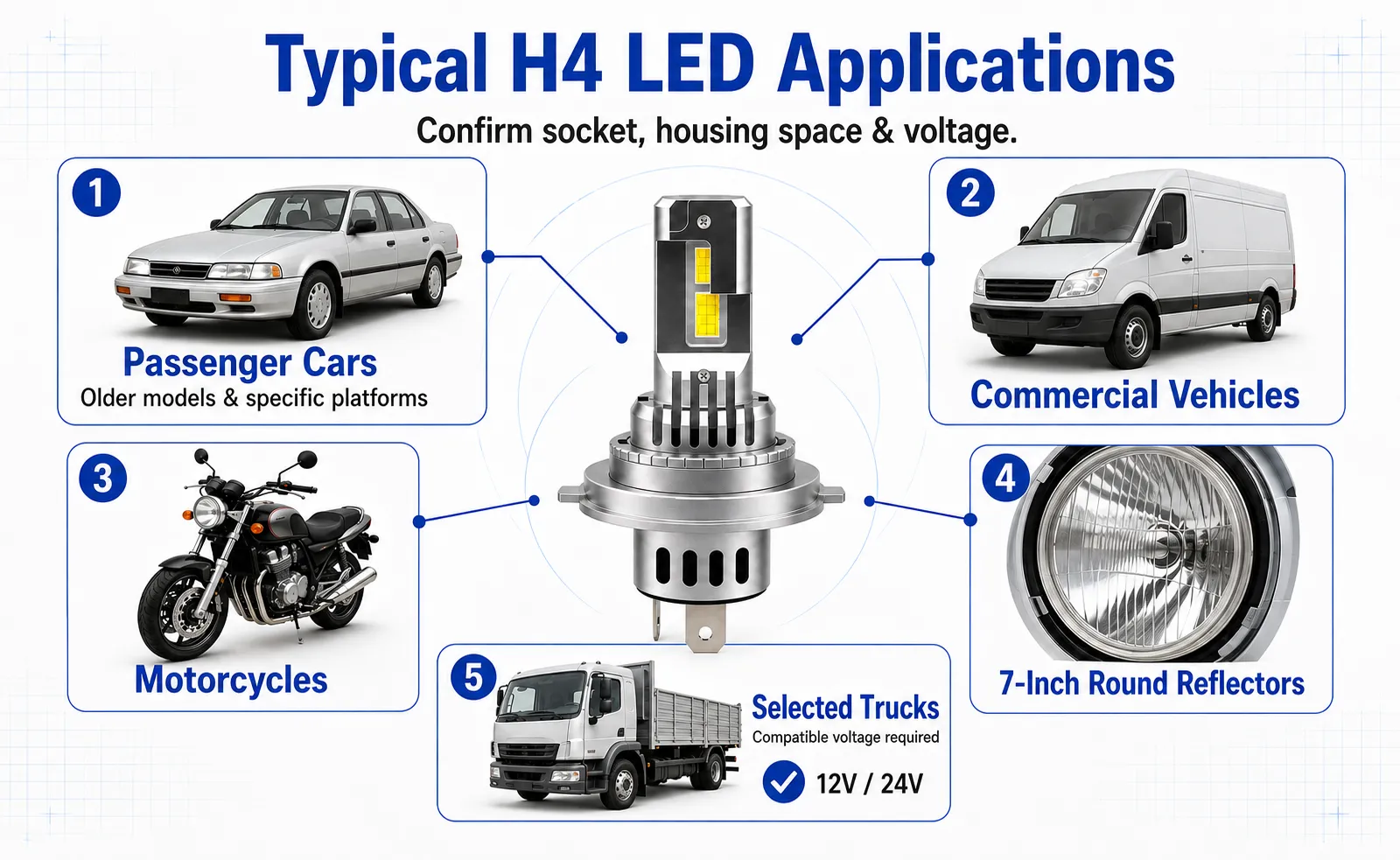

Typical Applications
- Passenger cars (older models & specific platforms)
- Commercial vehicles

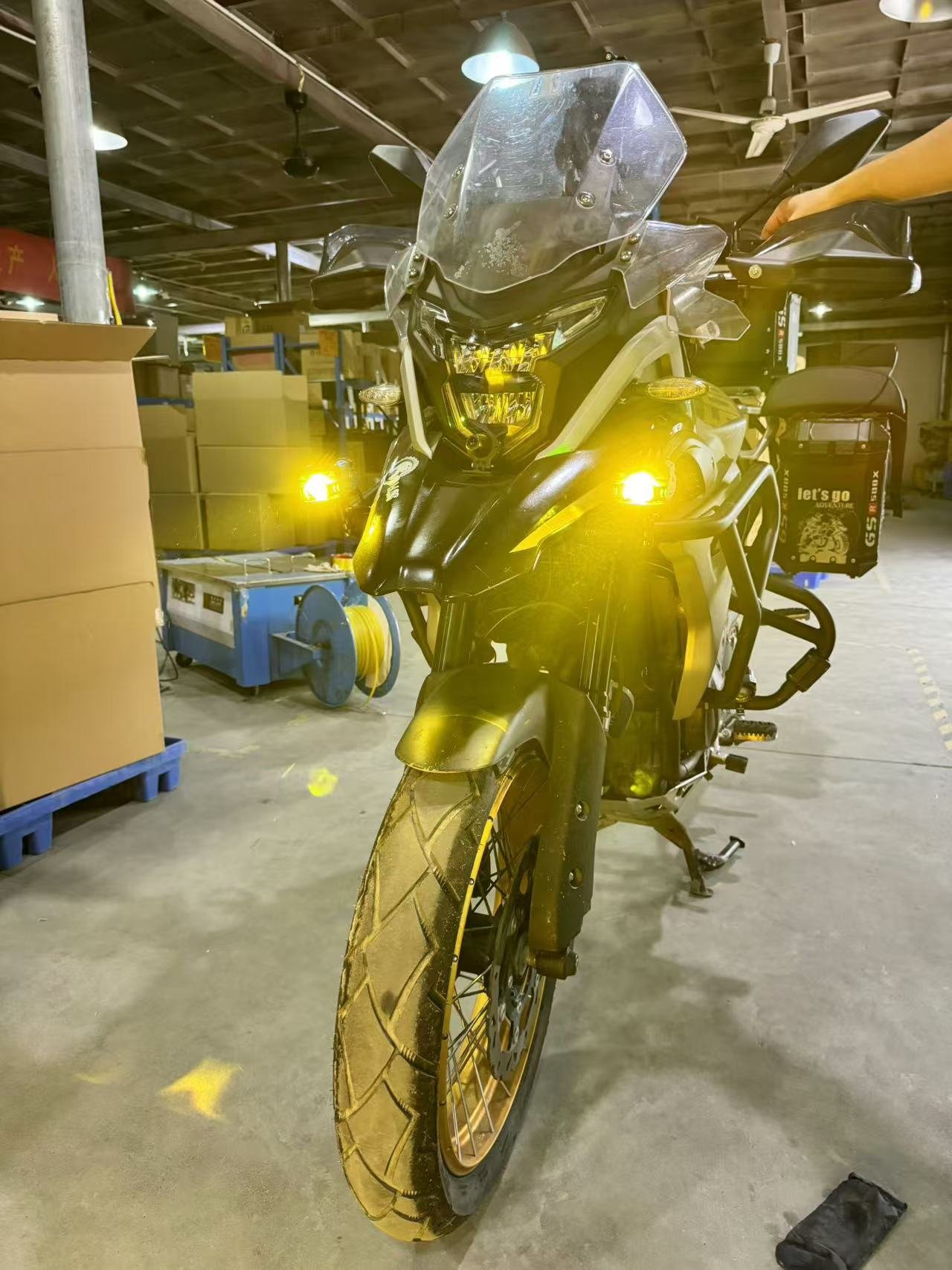

- Motorcycles
- 7-inch round reflector headlights
- Selected trucks with compatible voltage
Choose the Right H4 LED Series for Your Market
Select the optimal configuration based on your target audience, from entry-level motorcycle upgrades to premium CANBUS solutions for sensitive European vehicles.

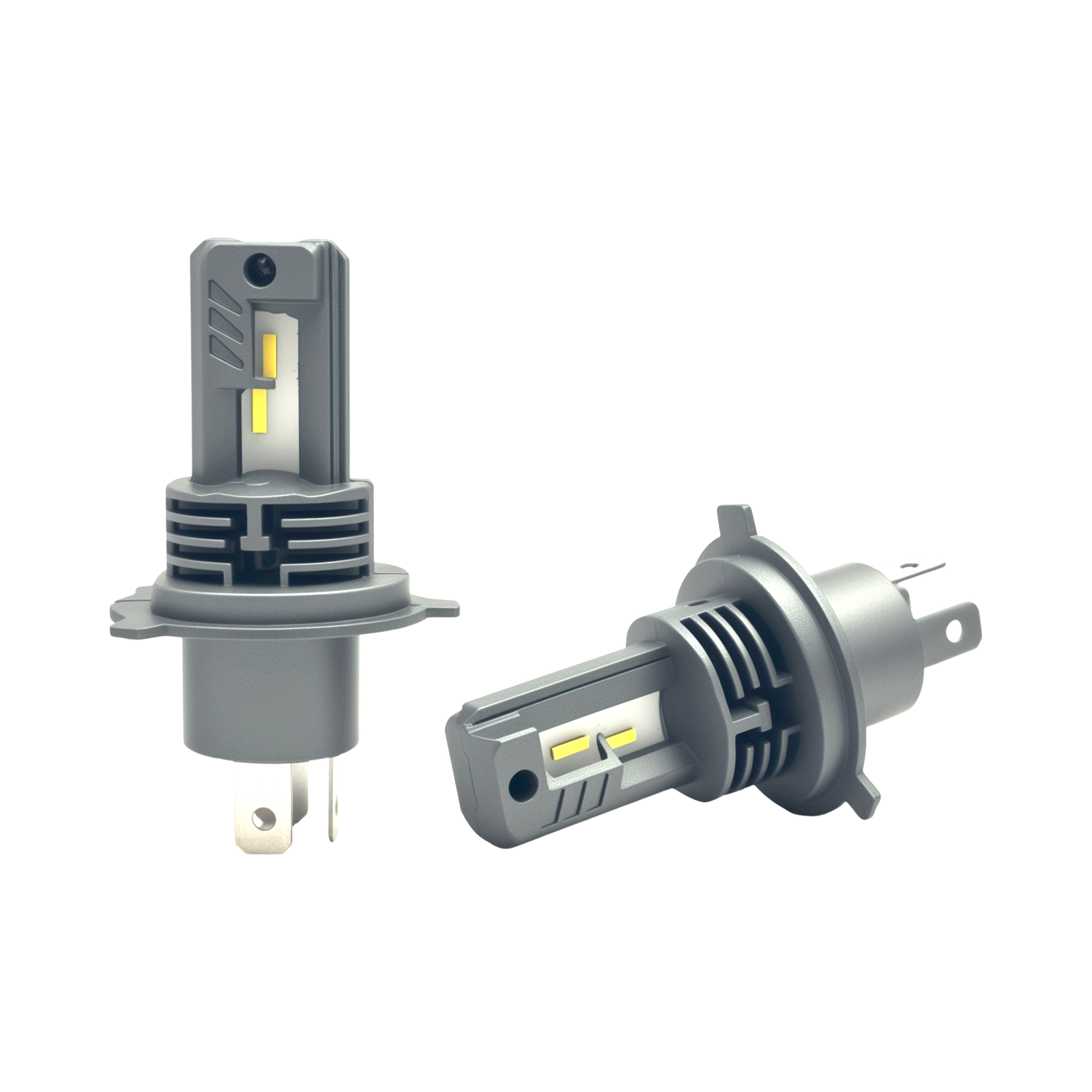

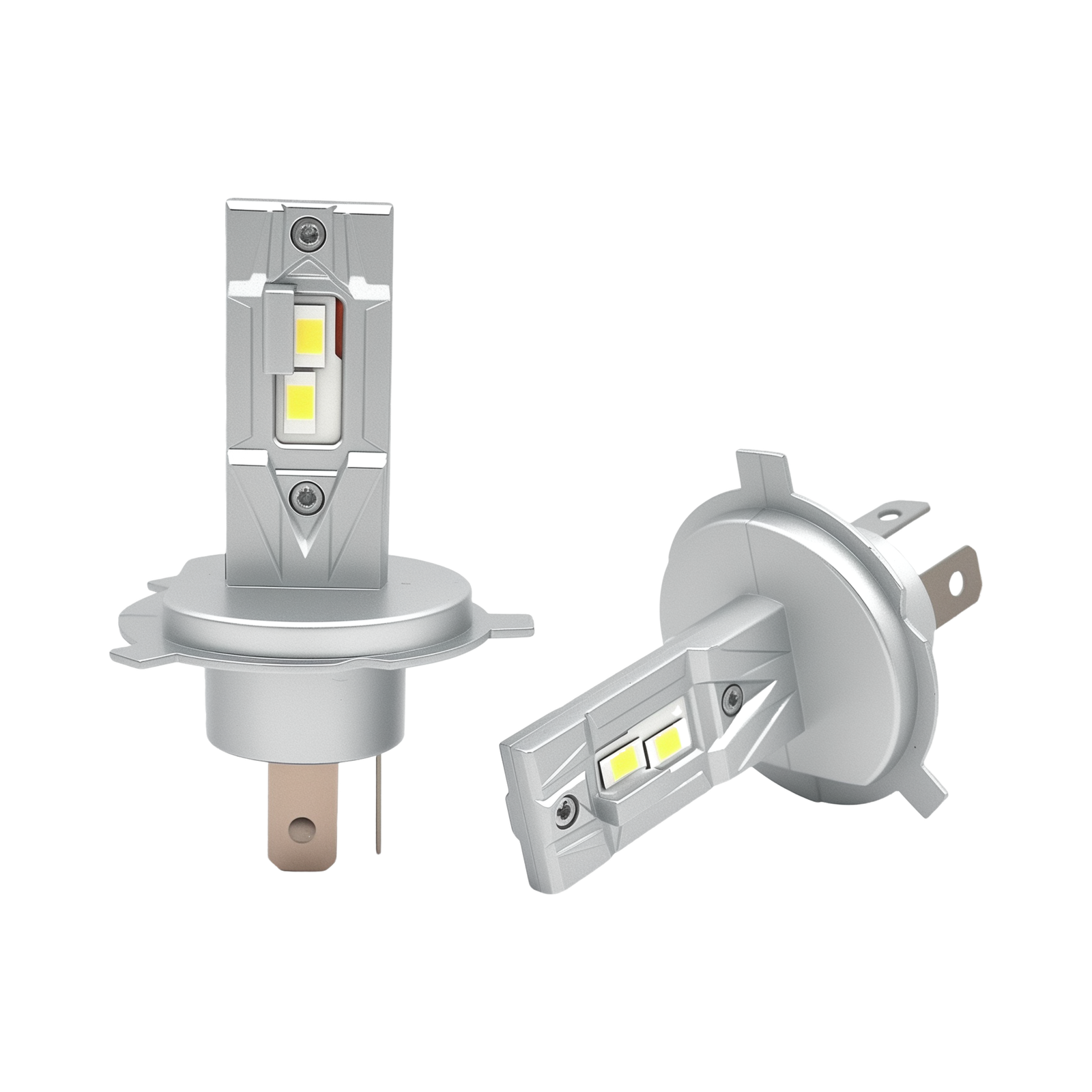

V2 / V3 Series

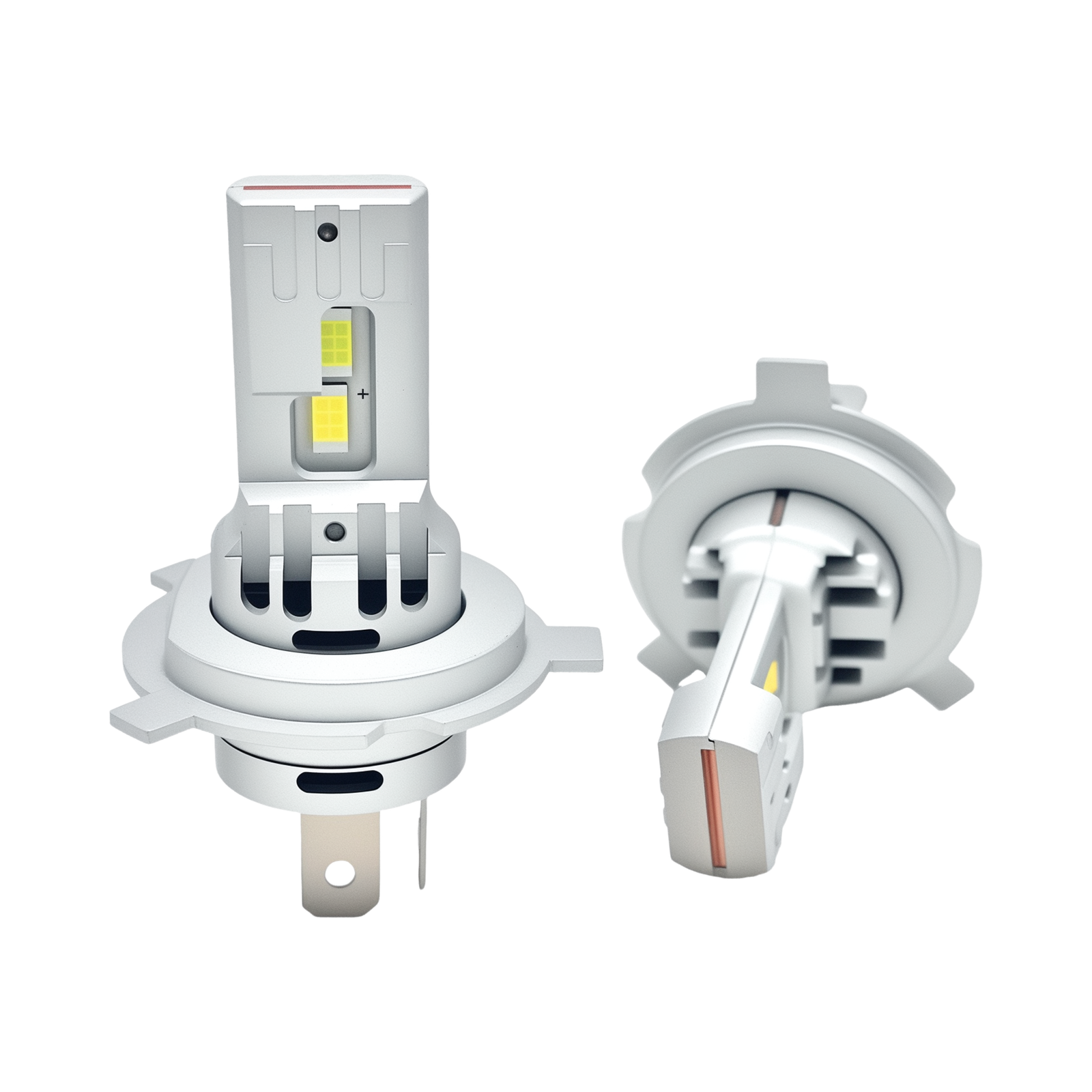

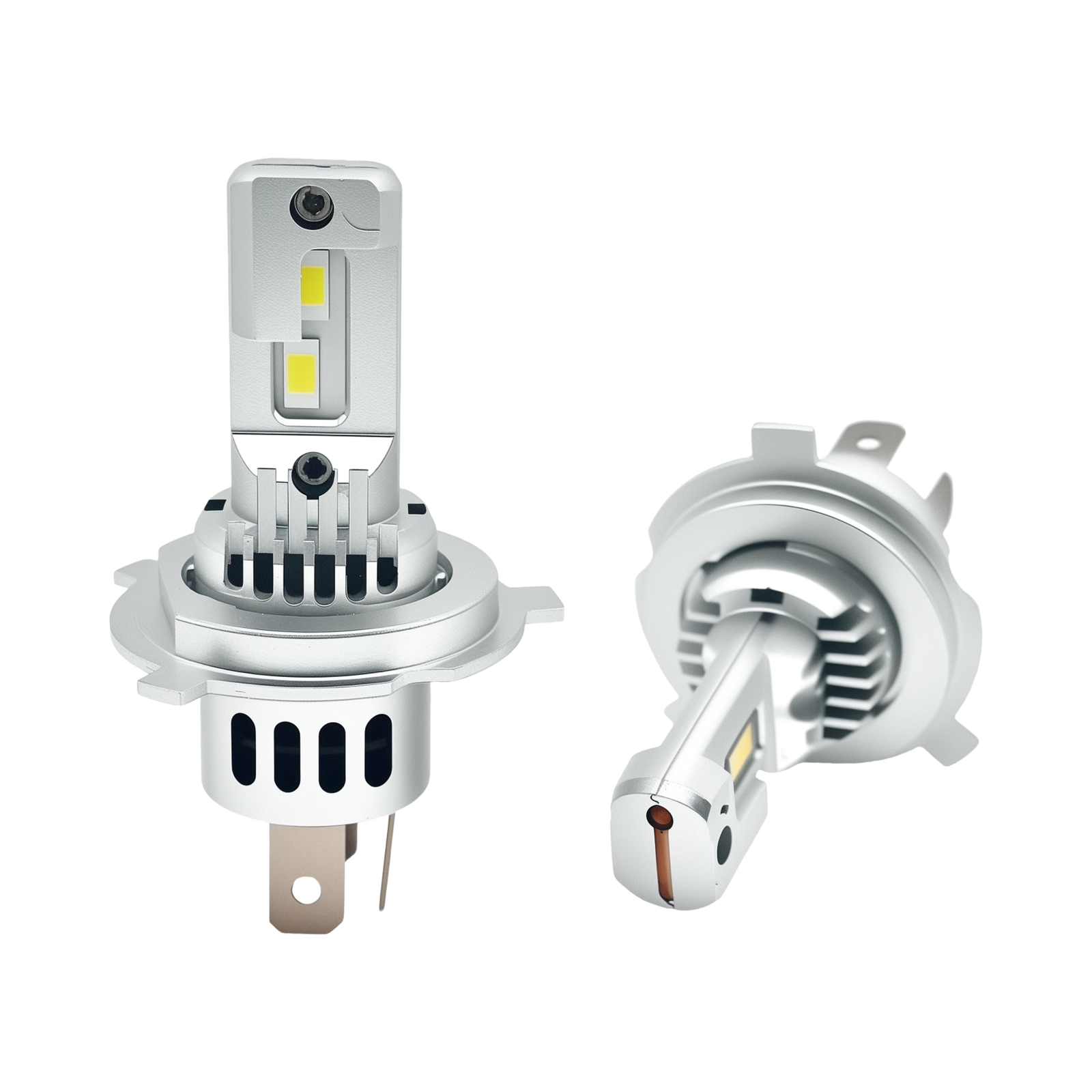

V4 / V5 Series

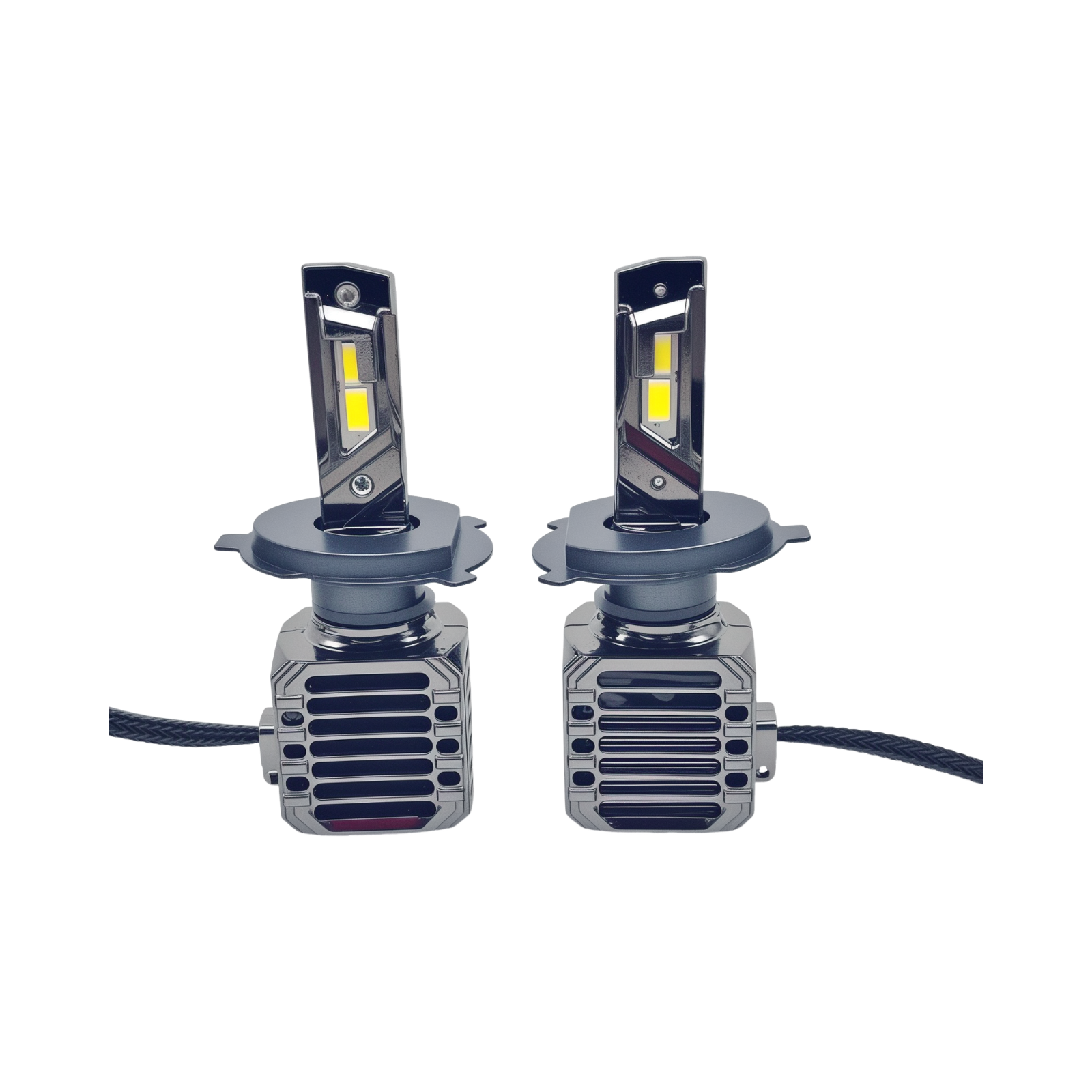

V8 / L19 Series

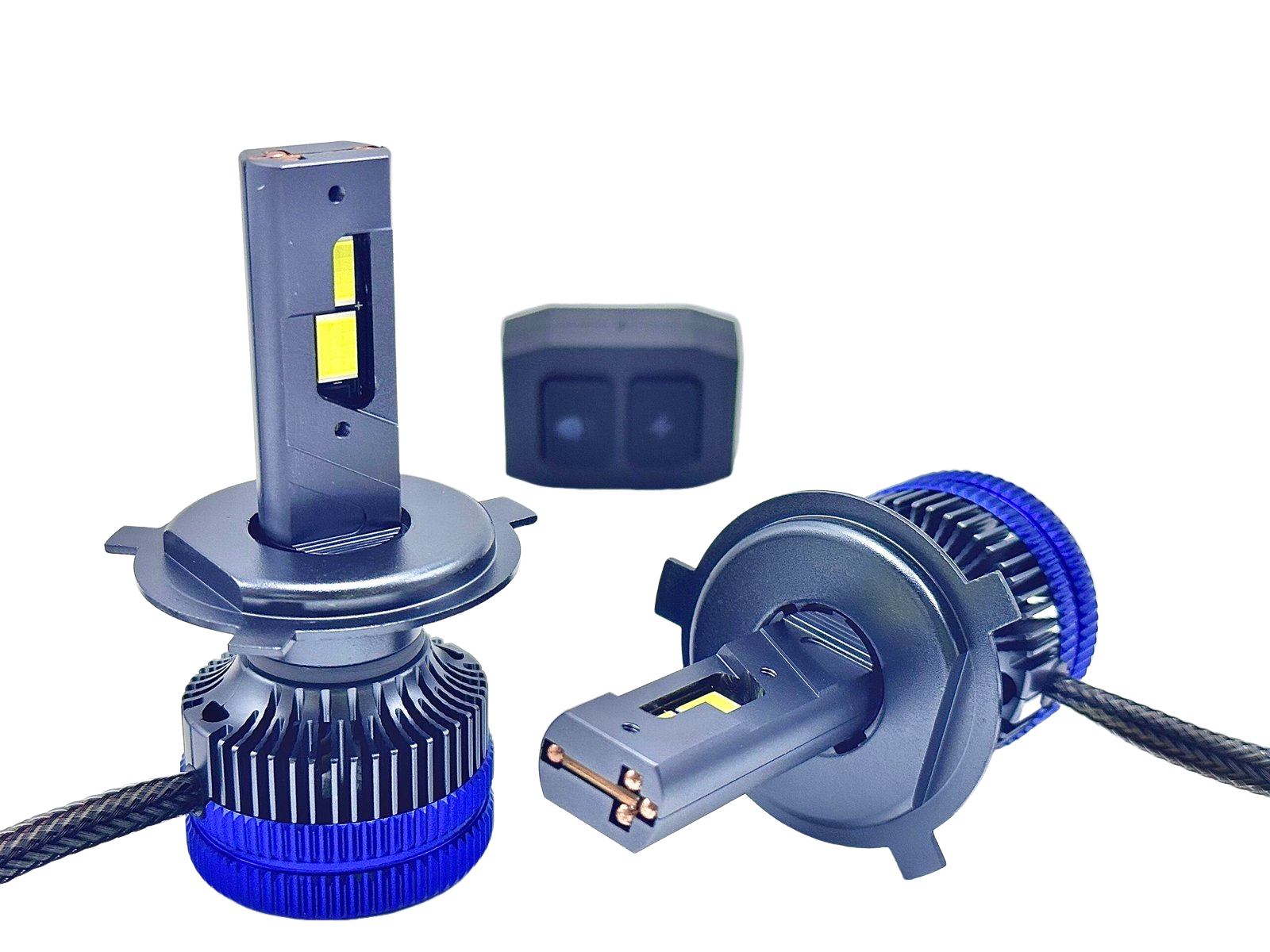

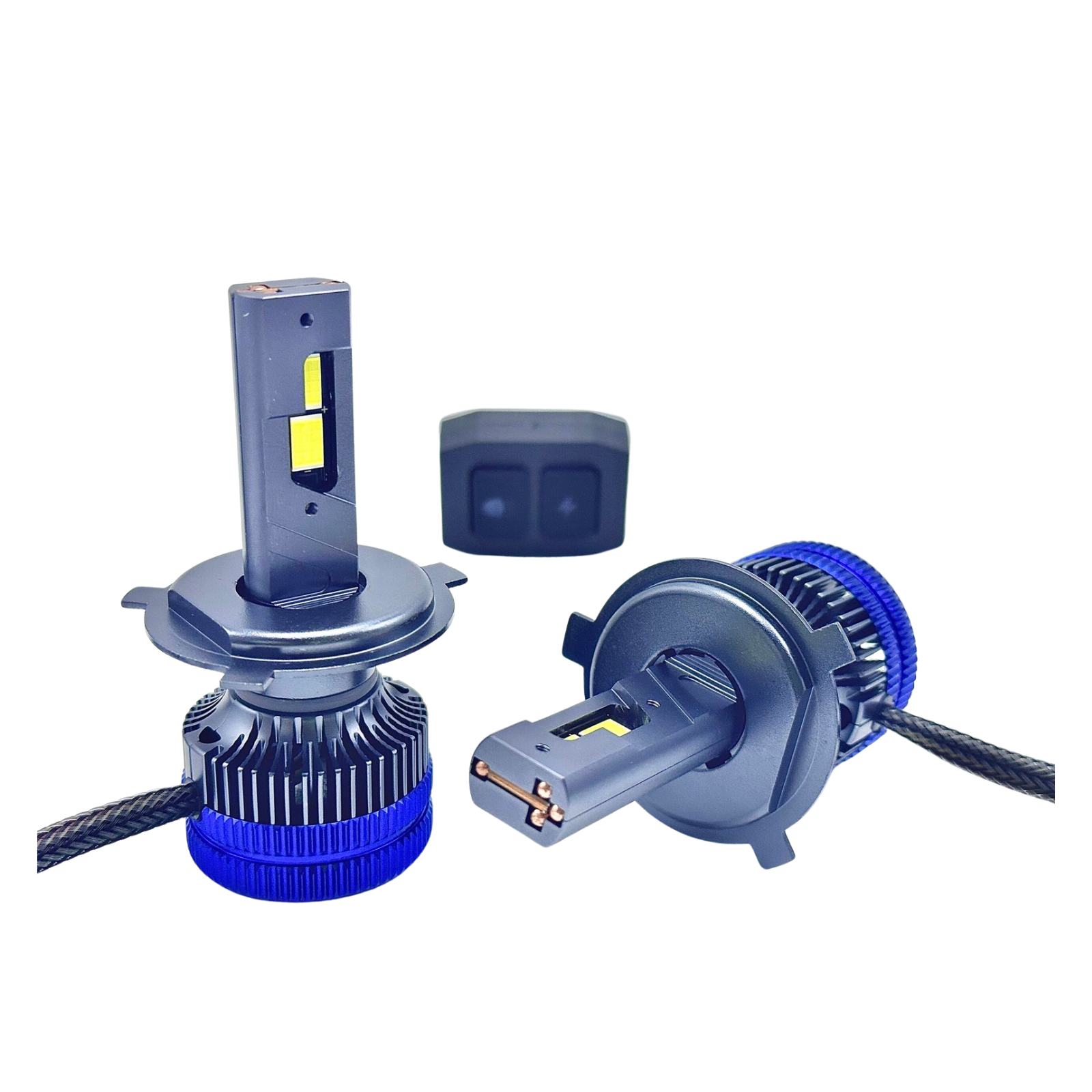

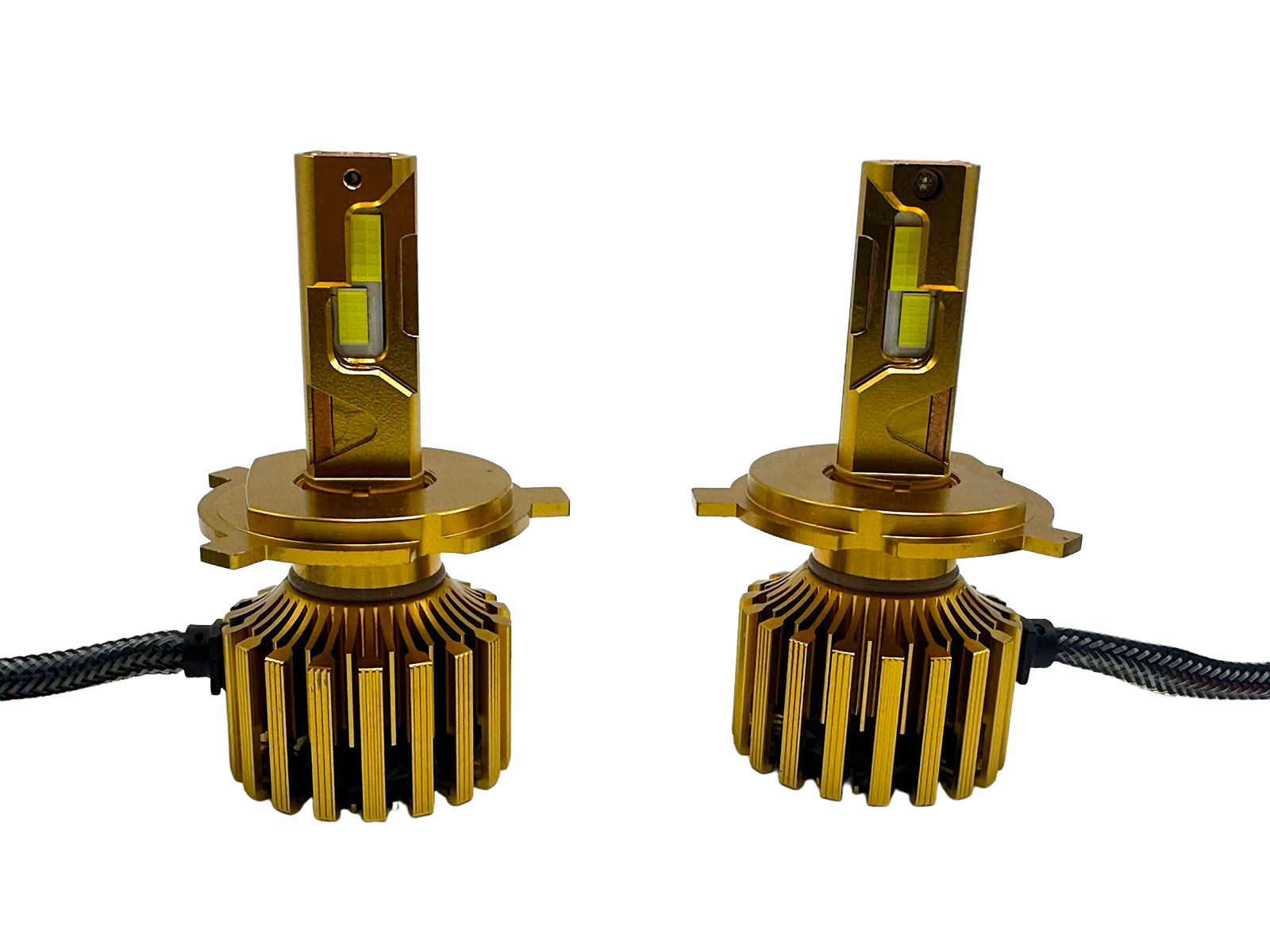

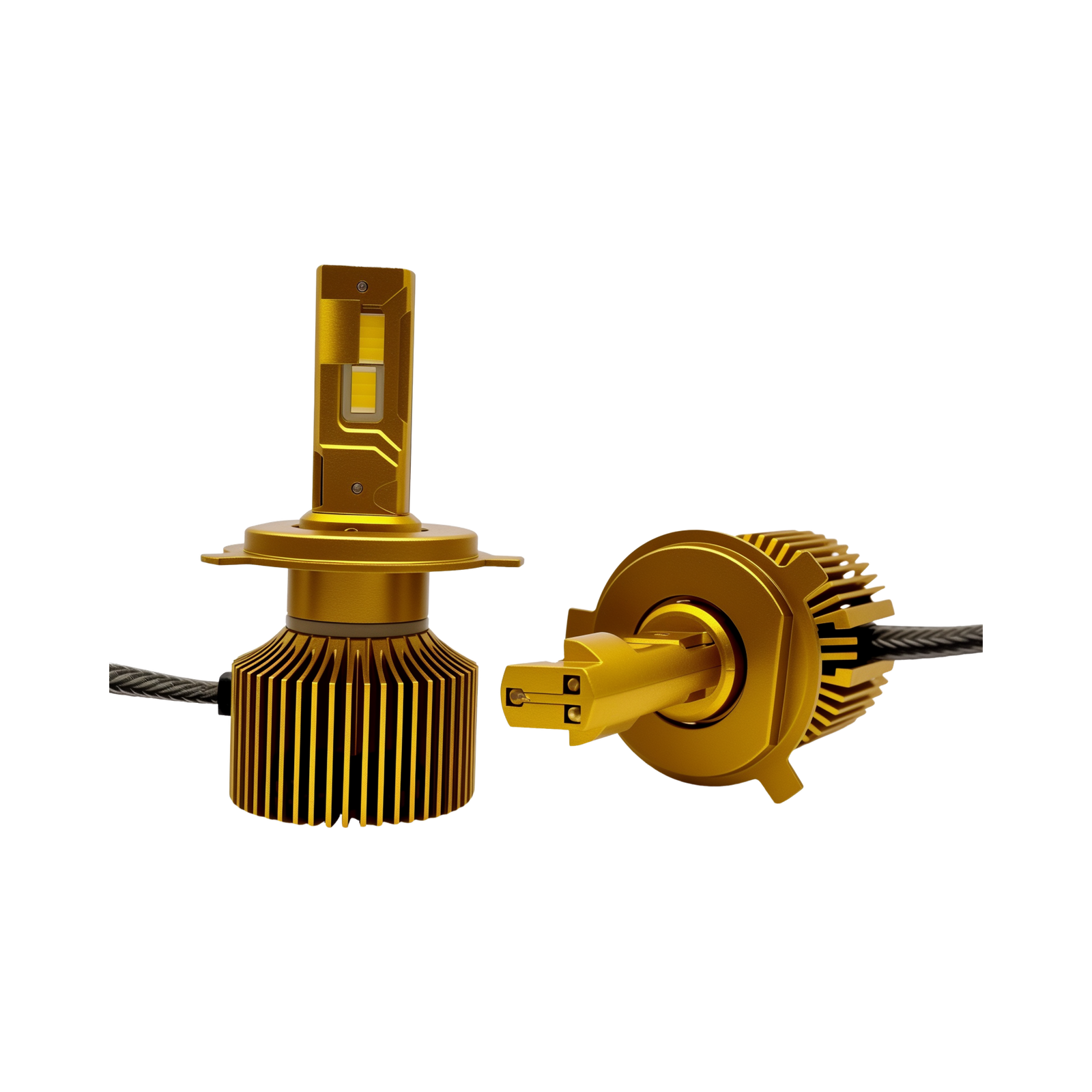

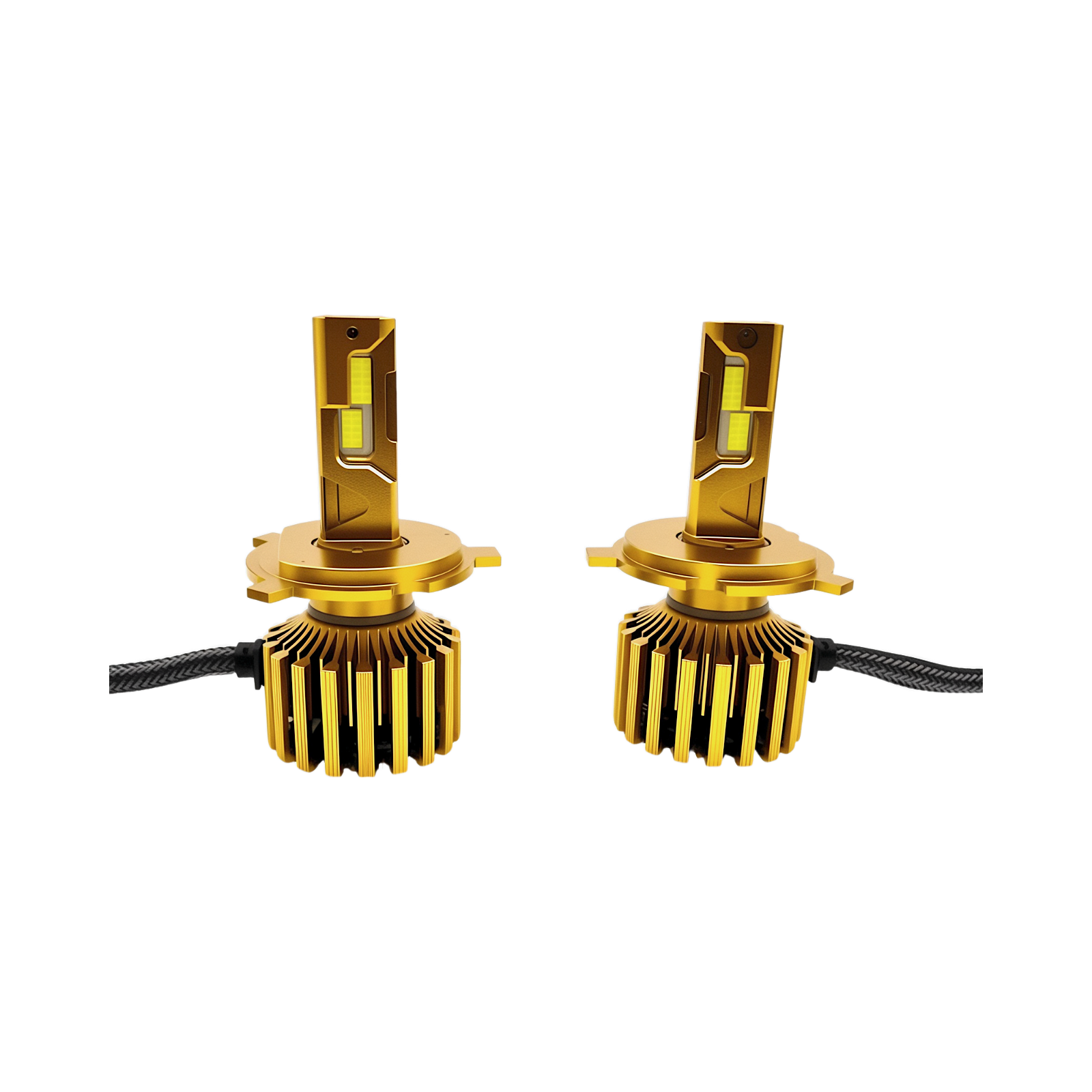

M35 / M38 Series

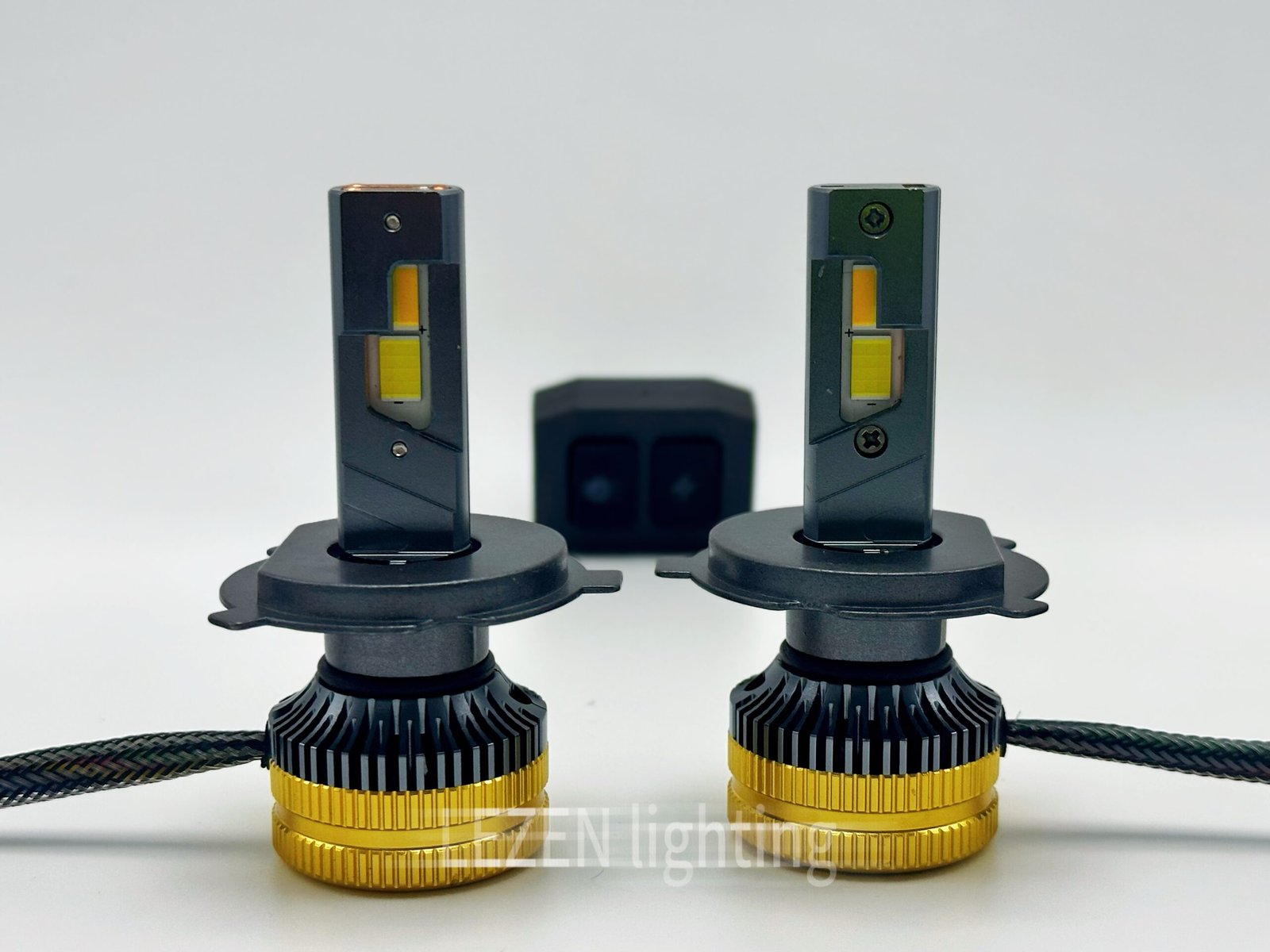

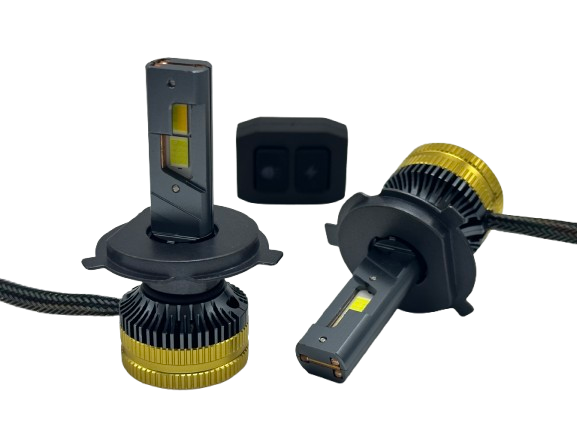

M32 Series
Compare LEZEN H4 LED Bulb Solutions
| Parameter | Mini Fanless | Value CANBUS | Premium CANBUS | High Output | Multi-Color |
|---|---|---|---|---|---|
| Target Market | Entry-level | Mass wholesale | Premium replacement | Performance | All-weather |
| Rated Power | 50W | 110W | 160W | 300W | 130W |
| Stable Power (30min) | 40W / Pair | 90W / Pair | 120W / Pair | 200W / Pair | 120W / Pair |
| Voltage | 9–30V | 9–16V | 9–16V | 9–30V | 9–30V |
| Color Temp | 6500K | 6500K | 6000/6500K | 6500K | 3000/4300/6000K |
| Cooling | Aluminum | Fan | Fan + copper | Multiple copper pipes | Fan + copper pipes |
| CANBUS | Optional | Basic | Advanced | Optional | Optional |
| Installation Size | Compact | Standard | Standard | Larger | Standard |
A Good H4 LED Bulb Is Defined by Its Beam, Not Only Lumens
Because H4 relies on the reflector for both high and low beams, precision engineering is non-negotiable.

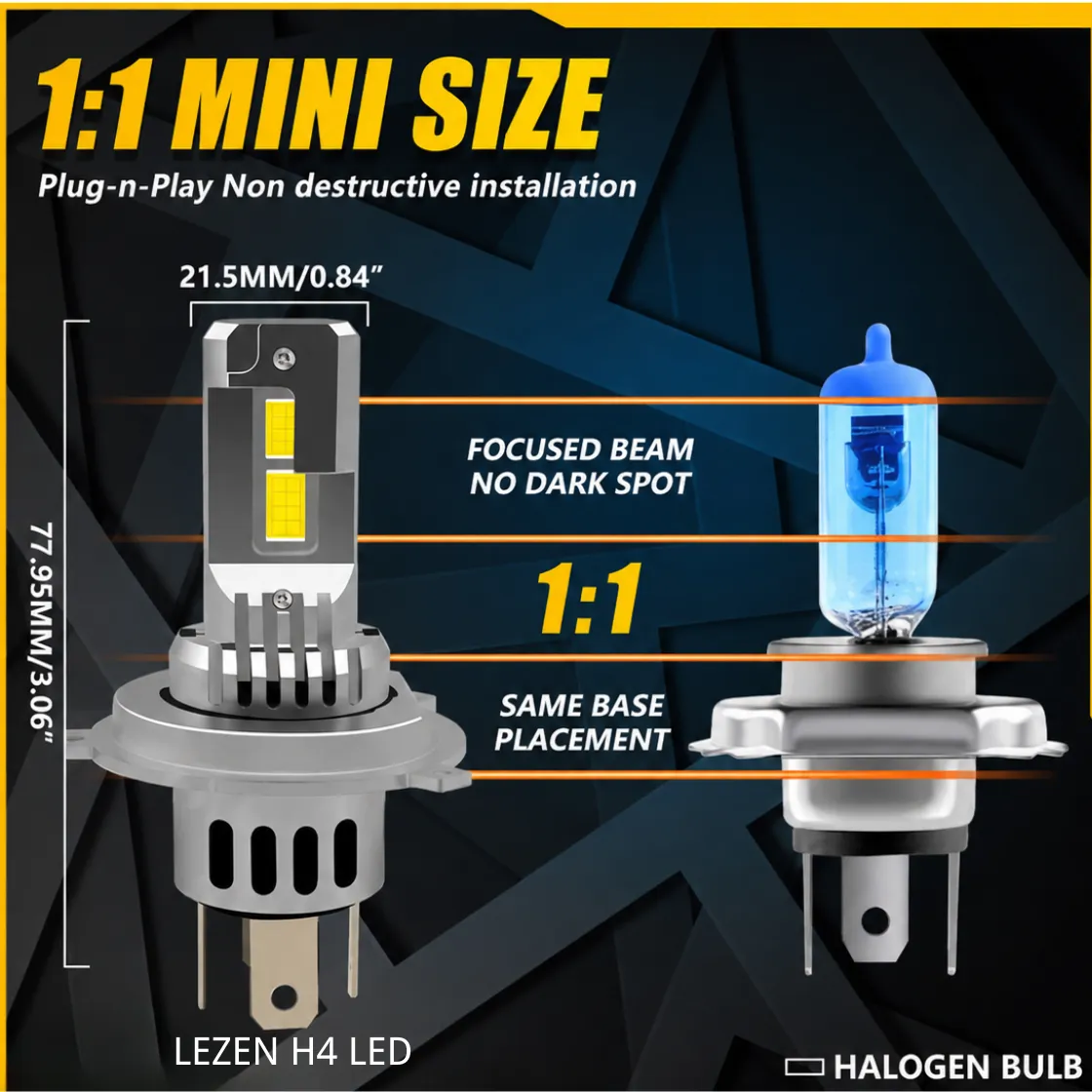

Near-Identical Light Source Position
The LED chips must be positioned close to the original H4 halogen filament location. Even a small change in chip height, thickness or distance from the mounting base can create dark areas, scattered light or excessive glare for oncoming traffic.

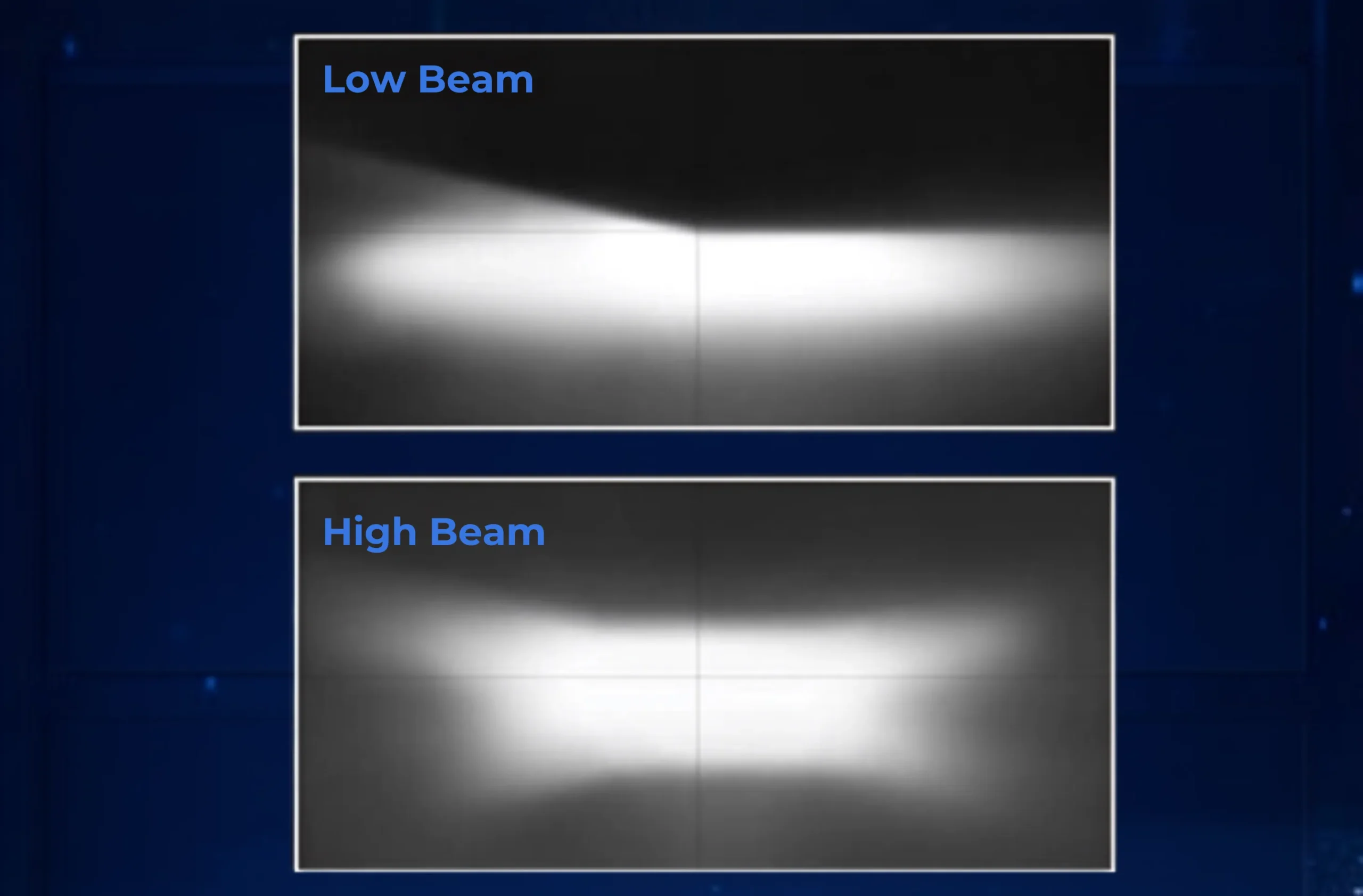

Controlled Low-Beam Cutoff
A proper shield design replicates the halogen low-beam cutoff. We test our beam patterns at a standard distance with fixed voltage to ensure the cutoff line is sharp and compliant, preventing glare while illuminating the road edge.

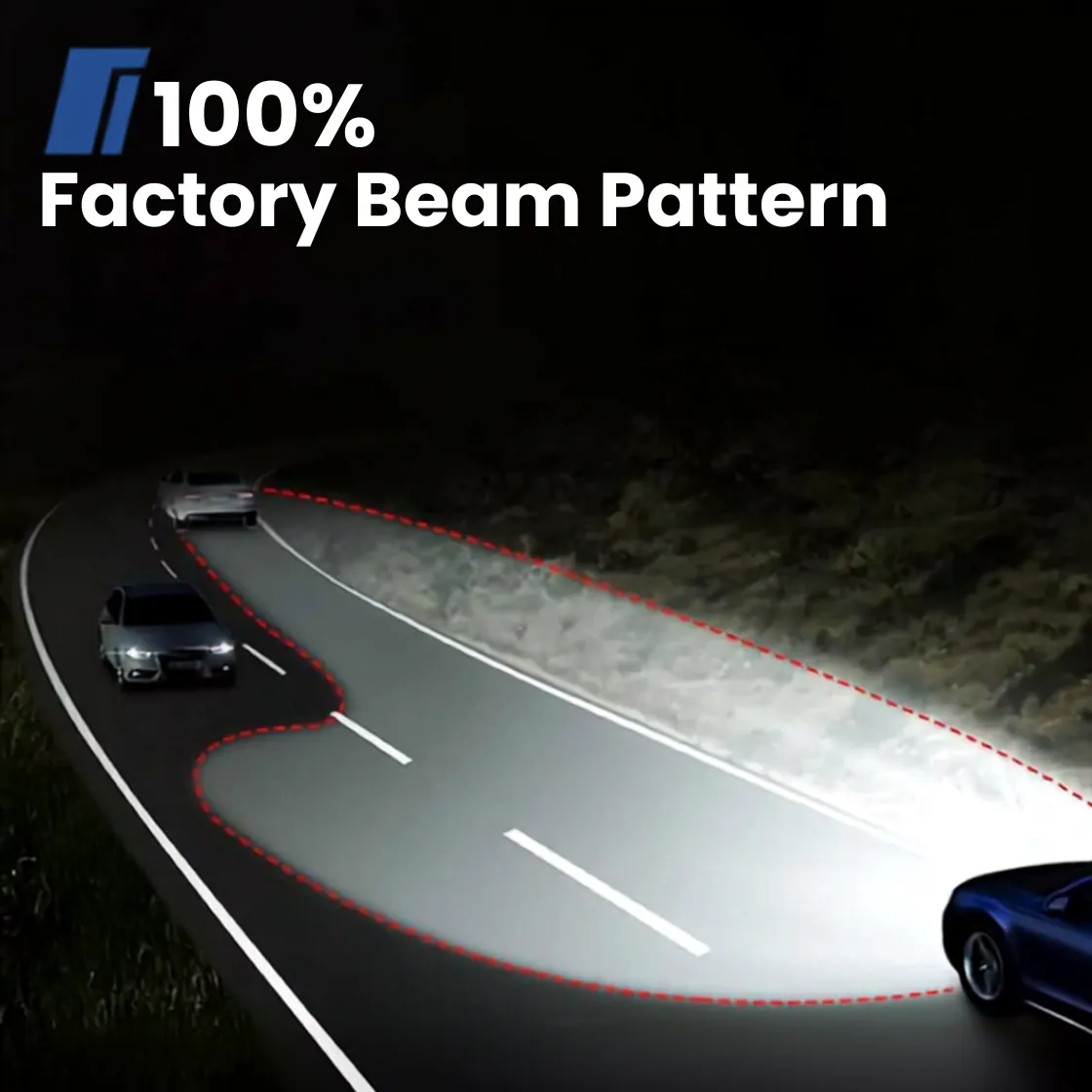

Focused High Beam Without a Hollow Center
Total lumens don't tell the whole story. A good H4 high beam must deliver high center Lux, adequate beam width, and long-distance illumination without creating a dark void in the center of the road.

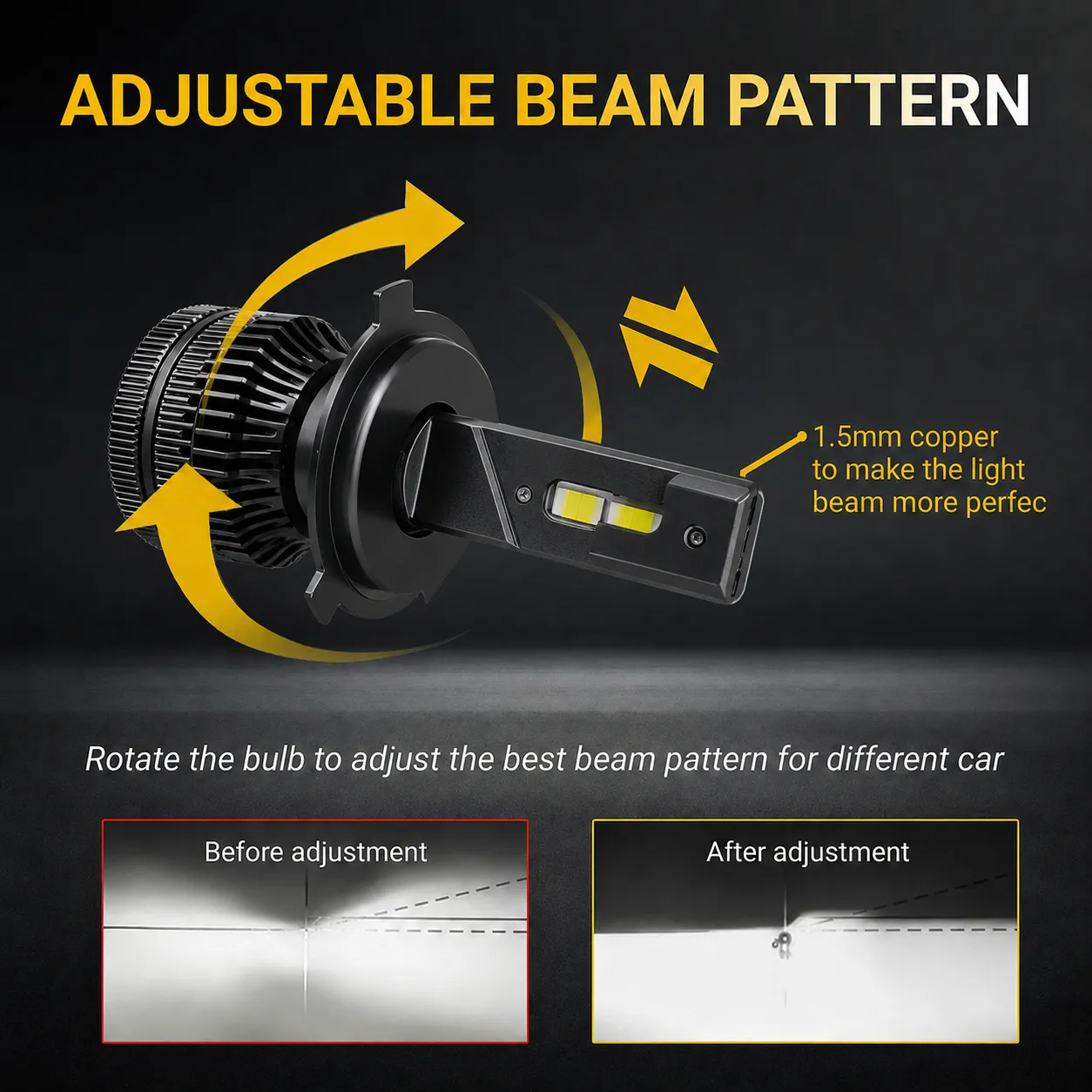

Why the LED Chips Must Face 3 and 9 O’Clock
Incorrect installation (e.g., chips at 12/6 o'clock) ruins the beam pattern. Our H4 bulbs feature adjustable collars to ensure chips perfectly align at 3 and 9 o'clock, maximizing reflector efficiency.
Common H4 LED Upgrade Problems—and How We Solve Them
Scattered Light & Severe Glare
Reason: Oversized LED emitting surface or incorrect focal point.
LEZEN Solution:
Ultra-thin copper substrates and precisely mapped chip layouts that mimic the halogen filament, paired with rotatable collars for perfect alignment.
Dashboard Errors & Flickering
Reason: Vehicle CANBUS detecting different loads, PWM power supply, or cold/hot diagnostic checks.
LEZEN Solution:
Built-in CANBUS models for standard vehicles and external decoder options for highly sensitive platforms. We recommend sample verification for specific fleets.
Dust Cover Won't Close
Reason: The LED cooling fan or heatsink extends too far backward.
LEZEN Solution:
We offer Mini Series with 1:1 halogen size profiles, integrated driver designs, and detailed dimension charts to confirm fitment before you buy.
Radio Interference
Reason: Electromagnetic noise from cheap drivers and unshielded wires.
LEZEN Solution:
Advanced EMI control through shielded driver components and linear drive options, backed by actual testing reports.
Brightness Drops Over Time
Reason: Thermal degradation. If heat isn't dissipated, the driver lowers power to protect the chips.
LEZEN Solution:
We engineer for 30-minute stable power, utilizing copper pipes, high-grade aluminum, and reliable fans to maintain stable Lux, not just short-term peak numbers.
Weak High Beam Focus
Reason: Incorrect H4 high/low beam chip positioning or poor shield design.
LEZEN Solution:
Optimized high-beam chip placement that directs light accurately into the reflector's high-beam focal zone, tested for consistency.
Engineered for Stable Light Output, Not Short-Term Peak Numbers
Many manufacturers advertise "100W" or "20,000 Lumens" based on the first second of power-on. As the bulb heats up, power drops drastically. Professional buyers know that true performance is measured by thermal stability.
Our standard: Stable at advertised wattage after 30 minutes under 25°C test conditions.
- 1 Minute Power Test
- 30 Minute Stable Power & Lux Verification
- LED Solder Joint & Driver Temperature Checks
H4 CANBUS and Driver Options for Different Vehicle Systems
Match the driver technology to your market's specific vehicle age and electrical complexity.
Standard Driver
Ideal for older vehicles, motorcycles, and basic markets without complex computer systems.
- Cost-effective
- Compact size
- Wide voltage range
Built-In CANBUS
Solves 90% of basic error codes and flickering without needing bulky external components.
- Integrated design
- Prevents dashboard errors
- Smooth high/low switching
Vehicle-Specific Decoder
For sensitive European platforms or specific trucks with strict PWM or load detection.
- High compatibility
- Strong EMI filtering
- Customizable for fleets
Tell us your target vehicle brands, year range, and known dashboard errors.

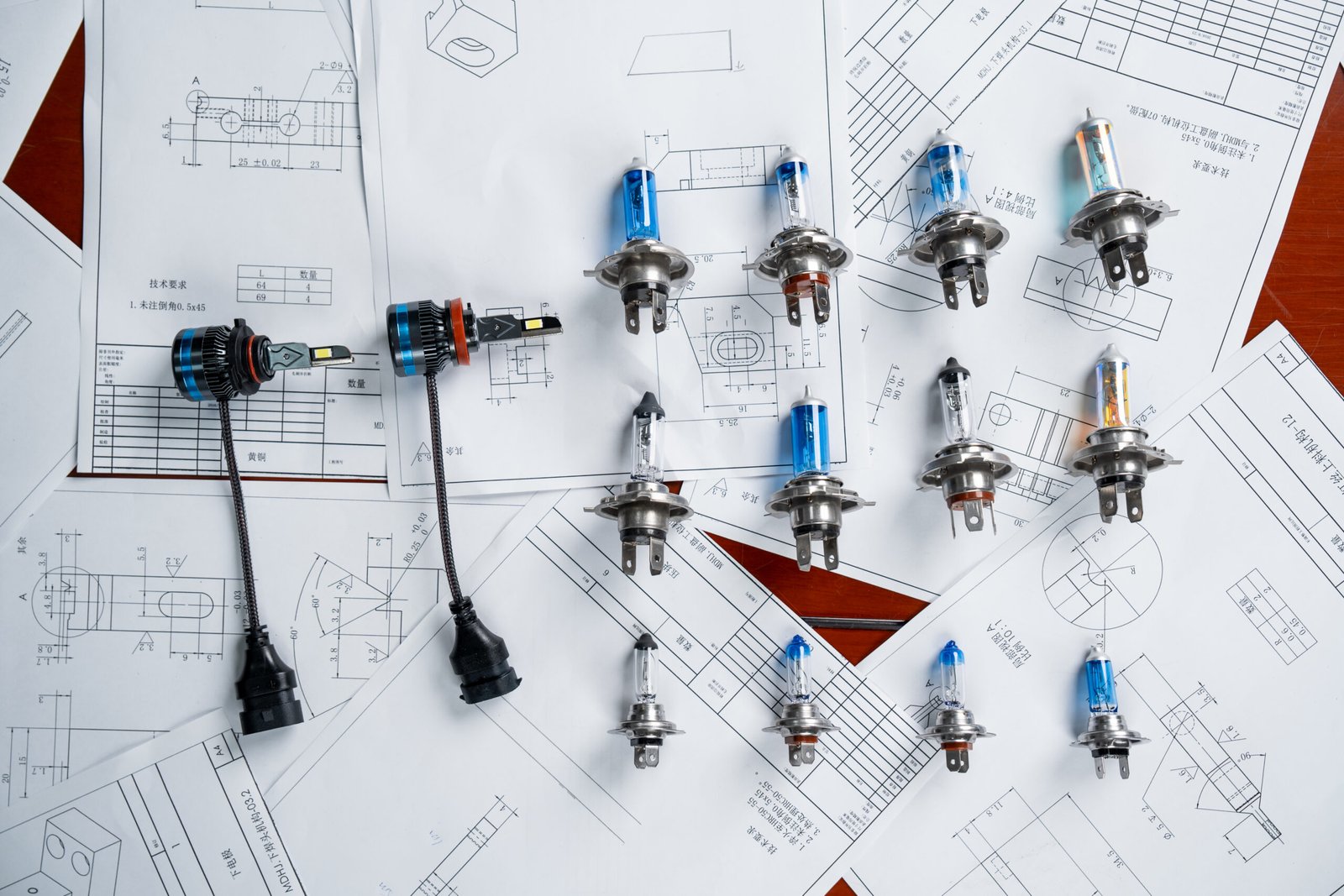

Build an H4 LED Product Line for Your Own Brand
From laser-etched logos to custom color temperatures, we help distributors create unique product identities.
Customization Capabilities
Market Positioning Guide
| Client Goal | LEZEN Recommendation |
|---|---|
| High Volume / Budget | Standard Chips + Basic Driver + Simple Box |
| Mid-Range Wholesale | Copper Substrate + Fan + Basic CANBUS |
| Premium Brand | Stable Power + Advanced Decoder + Custom Look |
| Rain/Fog Regions | 3000K or Multi-Color Series |
| Motorcycle Market | Mini Size + Waterproof + Wide Voltage |

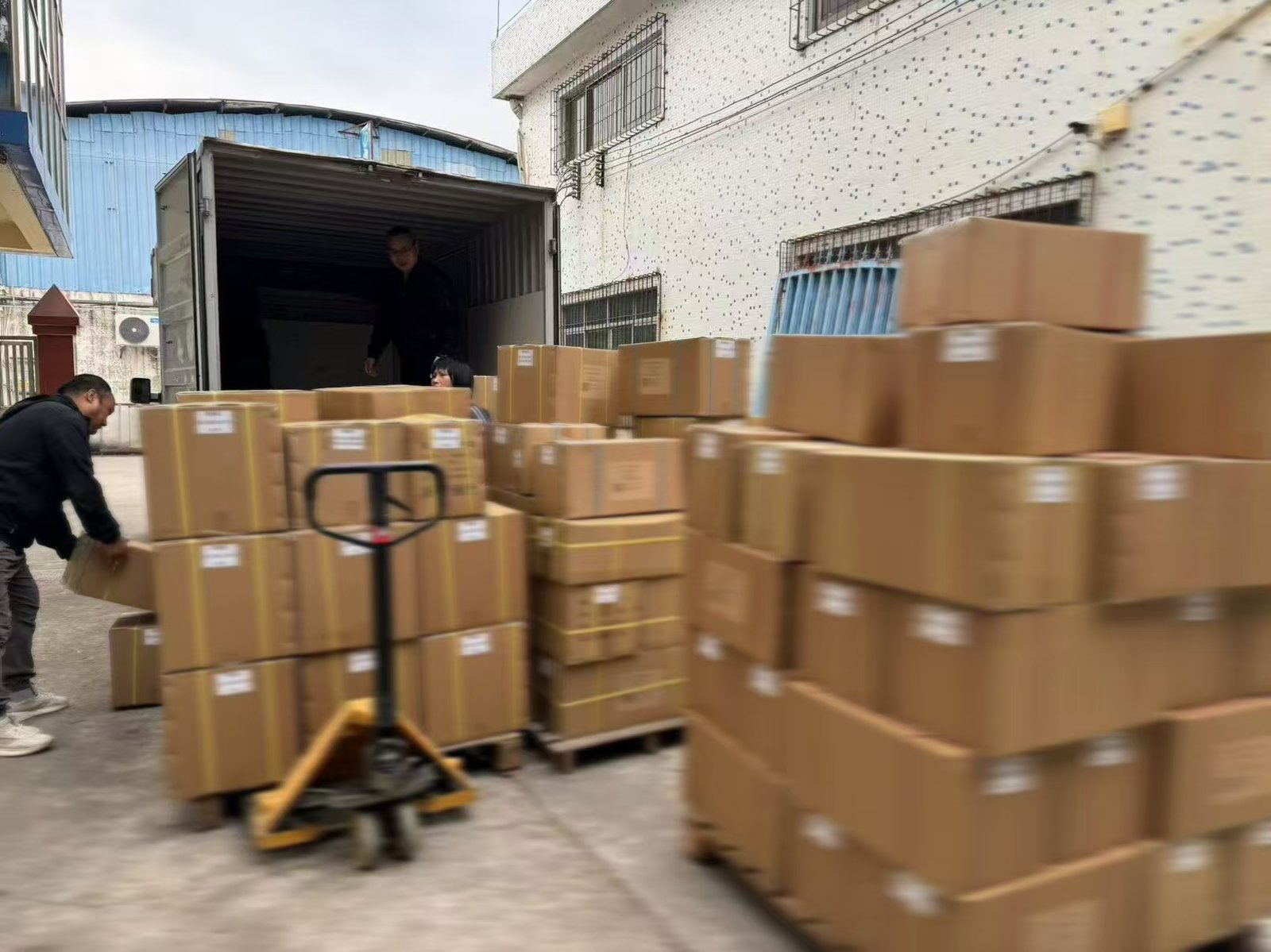

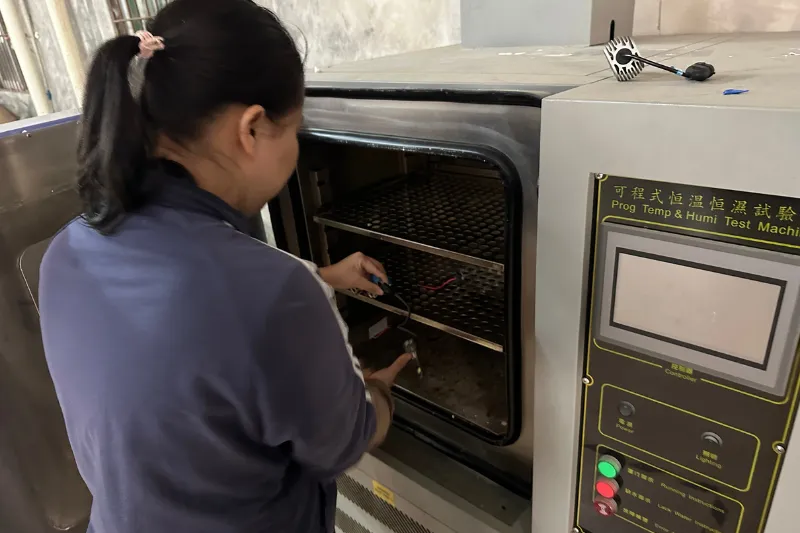

How We Control H4 LED Quality Before Shipment
Every finished bulb is checked for high/low beam switching, current, power, and appearance. Batch samples undergo rigorous environmental and beam-pattern verification before leaving our facility.
From H4 Sample Testing to Bulk Production
Start with a small sample order before committing to bulk inventory.
Requirement
Confirm market, vehicle types, voltage, price range, and channels.
Recommendation
Select Mini, CANBUS, High Output, or Multi-color solutions.
Sample Verification
Test fitment, beam pattern, errors, and radio interference locally.
OEM Confirmation
Finalize logo, labels, manual, and custom packaging design.
Mass Production
Production, aging tests, final inspection, and shipment.
Why H4 LED Buyers Work with LEZEN
Product Matching, Not Random Selling
We recommend H4 configurations based on your vehicle mix, market price level, installation space and after-sales expectations—not simply pushing the highest wattage model.
Flexible OEM Support
Test the product and market first, then seamlessly transition to customized logo, packaging, color temperature, and driver configurations as your order volume grows.
Batch Quality Control
Power, beam switching, appearance and packaging are thoroughly checked before shipment, helping distributors significantly reduce installation complaints and return costs.
Professional FAQ
Answers to common technical and procurement questions regarding H4 LED upgrades.
Are H4, 9003 and HB2 always interchangeable?
How do I choose between fanless and fan-cooled H4 LED bulbs?
Why does an H4 LED bulb produce scattered light?
Will your H4 bulbs cause dashboard errors?
Can H4 LED bulbs work with 24V trucks?
Can I order samples before bulk purchasing?
Tell Us Your H4 Market—We’ll Recommend the Right Series
Receive an H4 product comparison, sample policy and wholesale quotation based on your target market.
Direct Factory Contact: admin@lezen.com.cn | +8613695168008 | Sanshui District, Foshan, Guangdong Province, China
