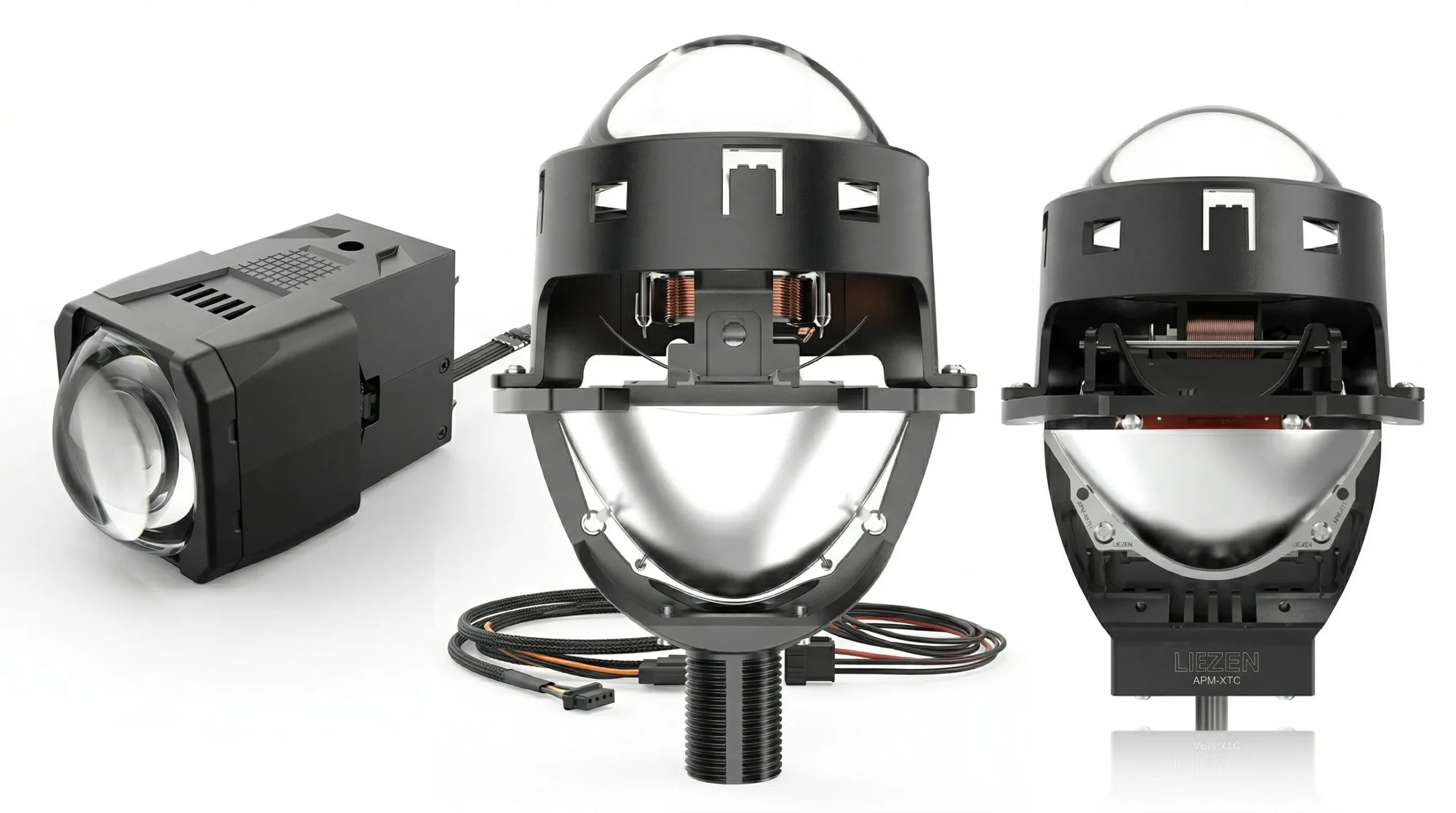

High-Performance Bi-LED Projector Lens
Engineered for professional retrofitters and automotive lighting distributors. Delivers superior beam patterns and unparalleled durability for commercial and passenger vehicles.
Request E-Catalog
Download our comprehensive automotive lighting catalog immediately.
Engineer Your Ideal Lens
Provide your specifications. Our R&D team will contact you to discuss custom OEM/ODM solutions.
Professional Bi-LED Projector Series
Engineered for extreme environments. High-transmittance optics, intelligent thermal management, and superior beam patterns.

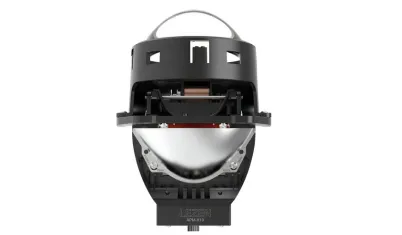

LZ11 3 Inch Bi-LED Dual Reflective Cup

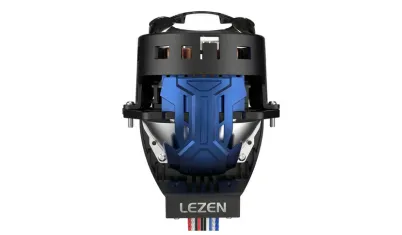

LZ8B 3" Dual Direct Injection Bi-LED

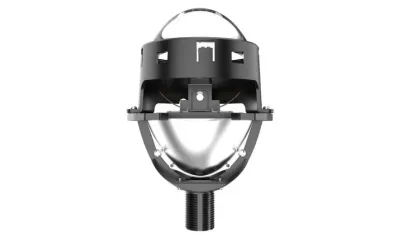

LZ8D 3 Inch Round Bi-LED Non-destructive

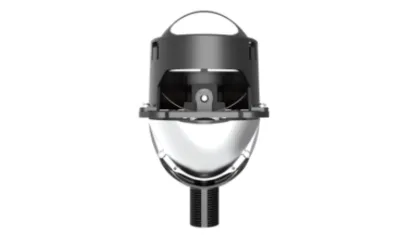

LZ6 2.5 Inch Bi-LED Projector Lens

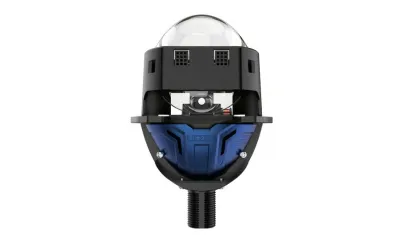

Lz9 3 Inch Square Bi-LED Non-destructive

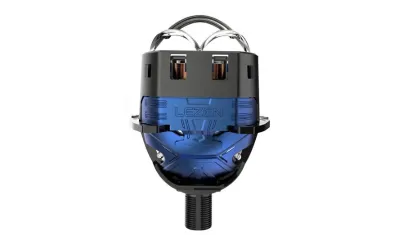

L9B 3 Inch Square Dual Direct Injection Bi-LED
Lz6 2.5 Inch Bi-LED Long Shaft
Lz6A 2.5 Inch Tri-Color Bi-LED Long Shaft

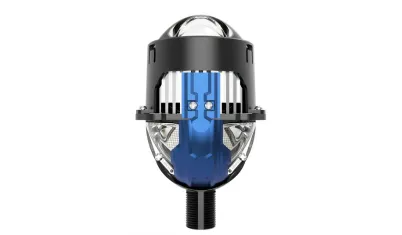

L6B 2.5 Inch Direct Injection Bi-LED Long Shaft

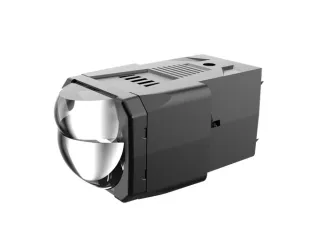

Lz5B 1.5 Inch Matrix Bi-LED Single/Dual

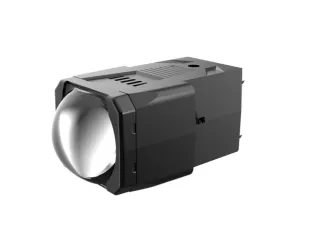

LZ5C 1.5 Inch Matrix Dual Cup Bi-LED
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Beam Pattern & Optics | Sharp LHD/RHD cutoff line, distinct blue color band at the cutoff, highly concentrated hotspot for extended high beam distance. |
| True Output Power | 55W Low Beam / 70W High Beam (Strictly verified continuous output, no inflated peak ratings). |
| Thermal Management | Dual ball-bearing cooling fan, pure copper heat pipe conduction, and aviation-grade aluminum heat sink. |
| Installation Compatibility | Threaded mounting shaft supports non-destructive installation for standard H4, H7, and 9005 reflector bowls. |
| LED Chipset Architecture | Custom high-power multi-core LED matrix on a specialized copper substrate for optimal thermal transfer. |
Precision Engineering:

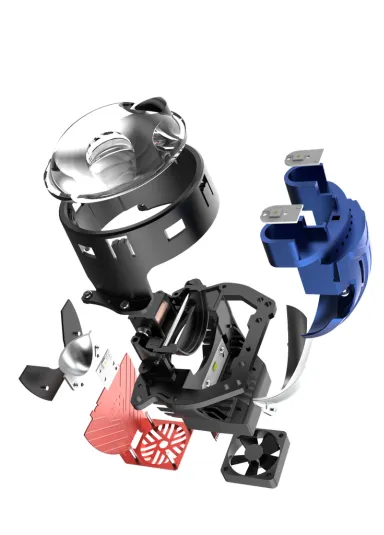

360° Structural Mastery
Engineered for extreme performance. Discover the internal architecture of our premium LED automotive lighting. 15 years of factory expertise, condensed into a seamless, high-efficiency system.
01. HD Optical Lens
High-transmittance quartz glass engineered for flawless beam focus. Ensures sharp cut-off lines to prevent blinding oncoming traffic.
02. Precision Reflector Cup
Micro-textured metallic surface maximizes lumen output. Designed via advanced photometric simulations to gather and project light for extreme distance visibility.
03. Automotive Grade Core
High-density custom LED array. Engineered for extreme brightness and longevity, maintaining stable output under severe thermal and electrical conditions.
04. Intelligent Driver
Built-in smart temperature control and advanced CANbus decoding. Prevents dashboard errors, radio interference, and flickering for seamless integration.
05. High-Speed Turbofan
12,000 RPM silent magnetic levitation fan. Paired with an aviation-grade aluminum body, it guarantees optimal heat dissipation for up to 50,000 hours of lifespan.
Engineered for Market Dominance
Differentiate your product lineup with features designed to solve real-world installation and performance challenges.

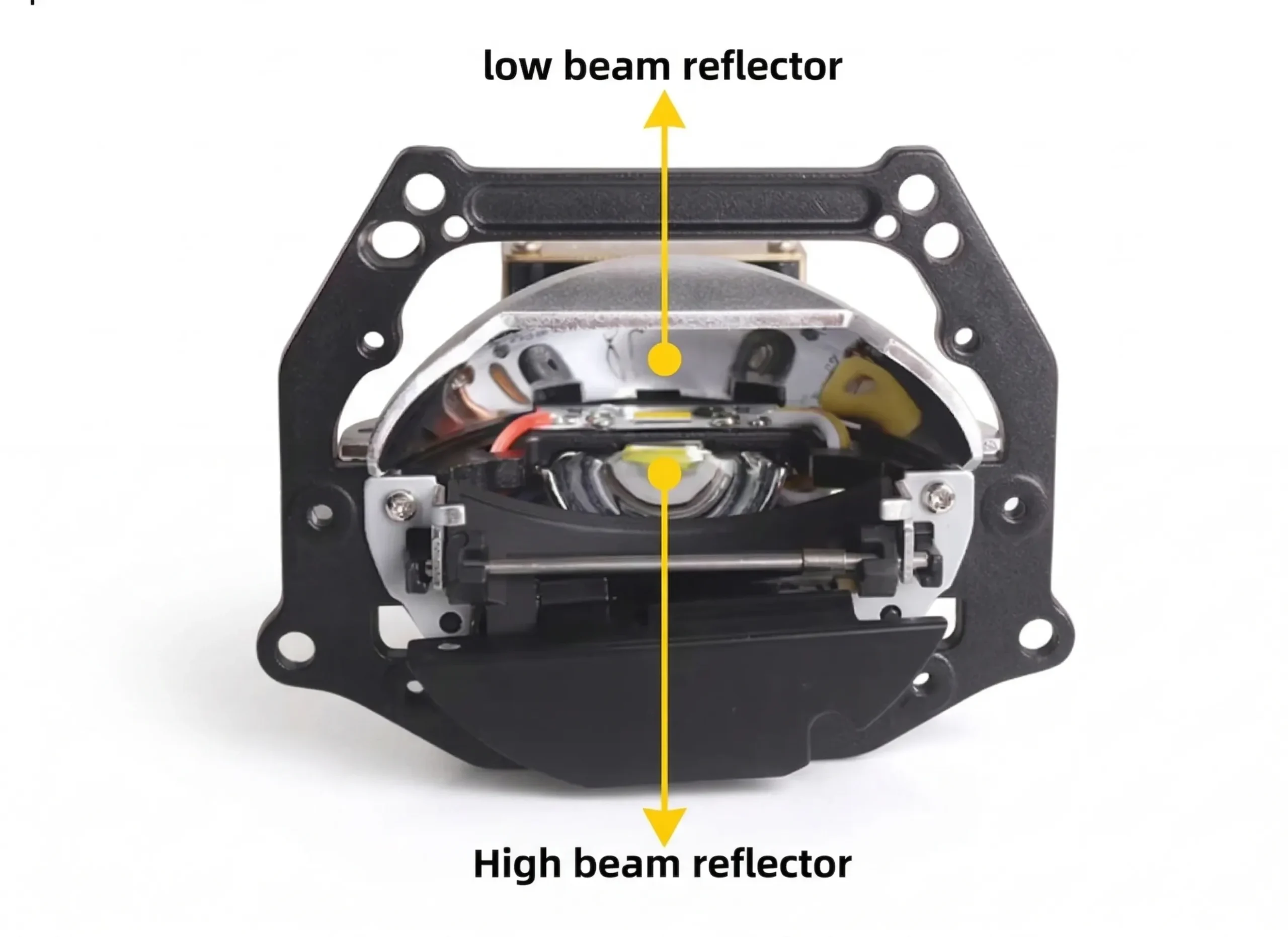

Ultimate Optical Performance
Features an advanced dual-reflector cup system that significantly amplifies center lux intensity. The ultra-clear HD glass lens, treated with an Anti-Reflective (AR) coating, increases light transmittance by 5%-10% compared to standard models, ensuring maximum road visibility.

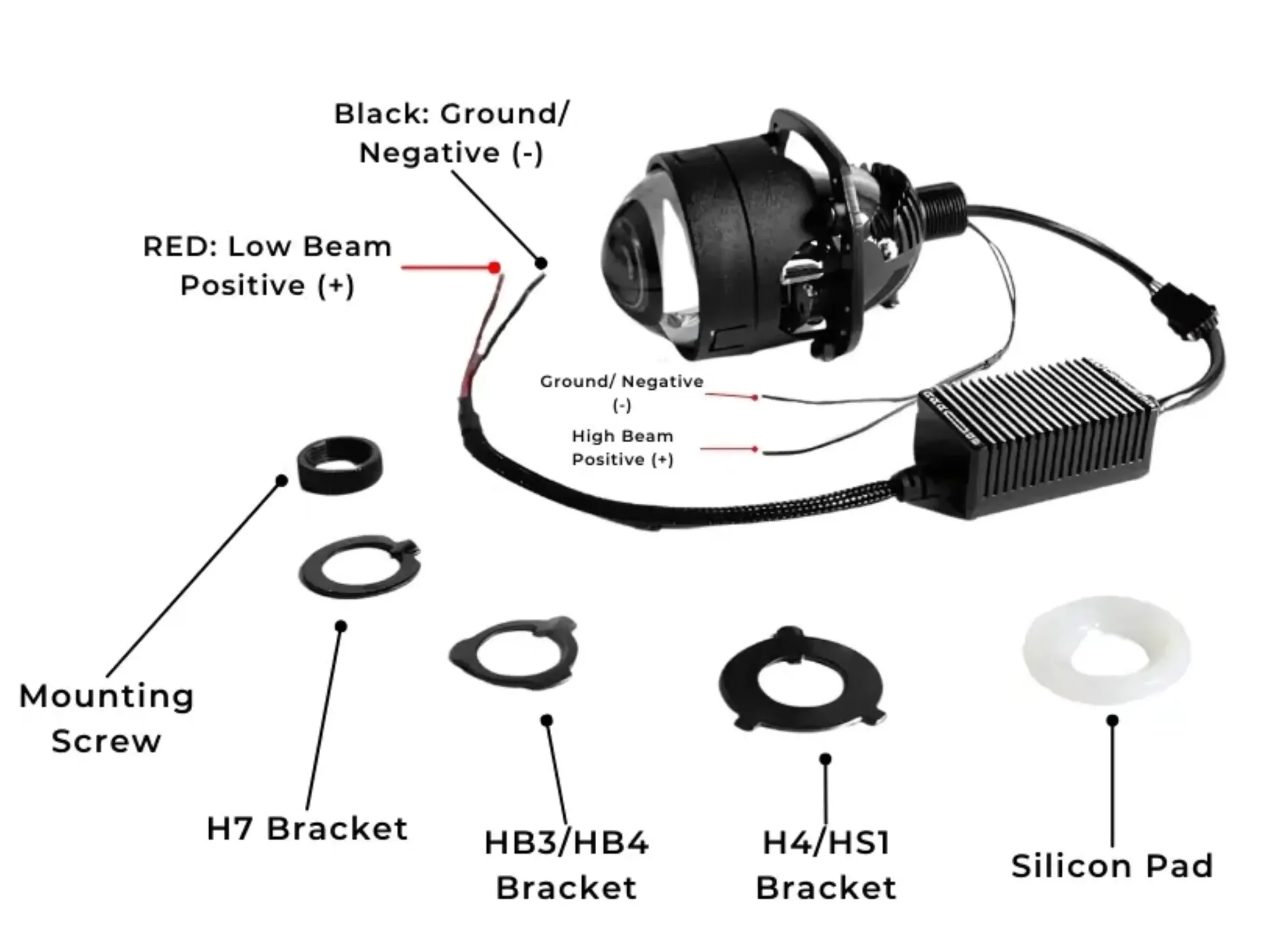

Reduced Installation Cost
Designed with a threaded tail shaft, this projector enables true non-destructive installation. It seamlessly fits over 80% of OEM H4, H7, and 9005 headlamp housings without the need to cut or modify the original reflector bowl, drastically reducing labor time and costs for wholesale installers.

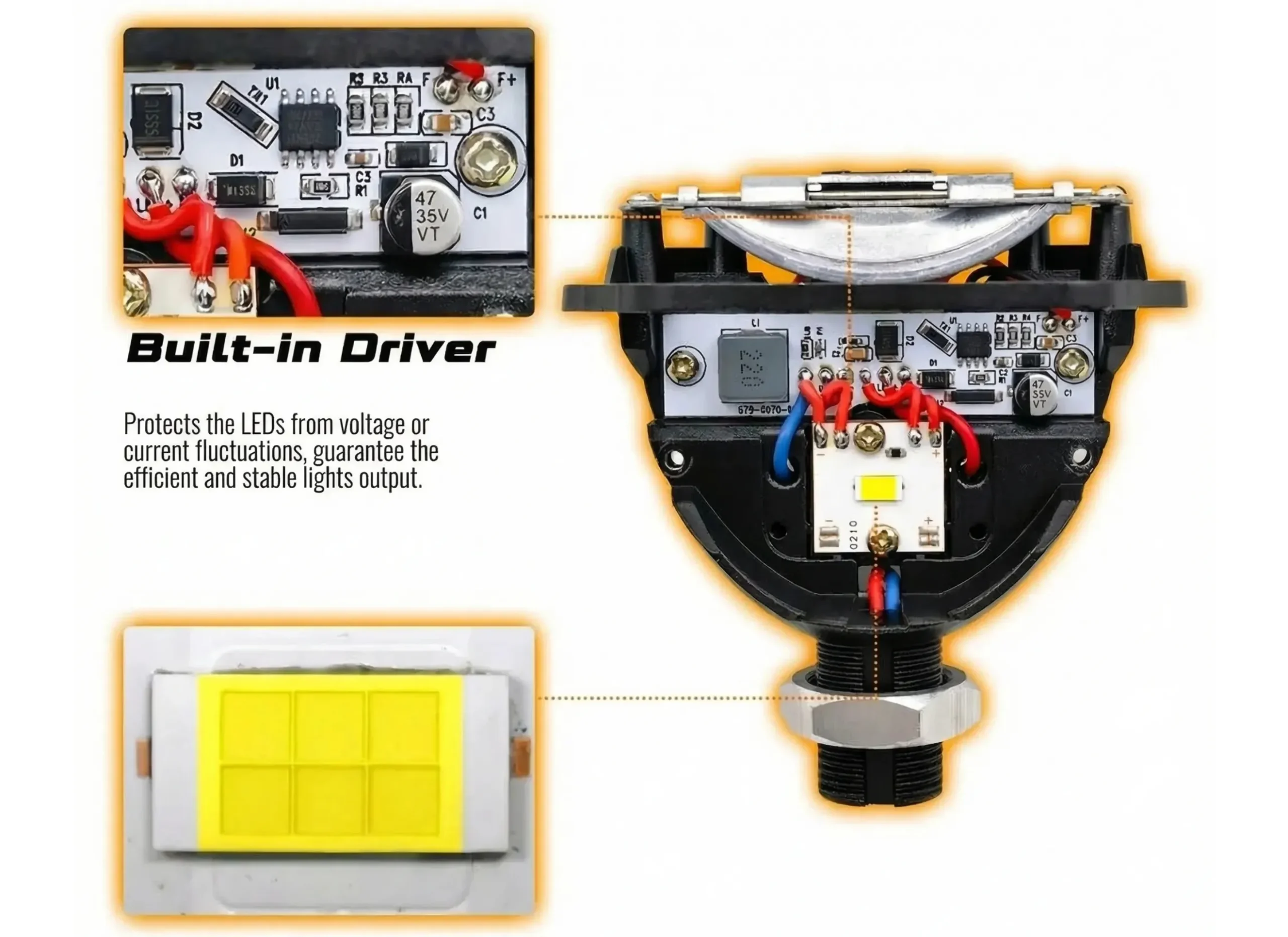

Exceptional Reliability
Built to last. Integrated intelligent temperature control automatically regulates current when operating environments exceed 80°C, preventing chip degradation. The wide-voltage driver architecture ensures stable performance even in commercial trucks or vehicles with fluctuating electrical systems.
Tailored for Your Business Model
B2B Retrofit & Modification Chains
Exceptional beam performance guarantees high customer satisfaction and minimal returns. Easy installation translates to higher daily vehicle throughput.
E-commerce Merchants (Amazon/eBay)
Stand out with distinctive industrial design, premium retail-ready packaging, and full compliance documentation (CE/RoHS) to ensure smooth cross-border sales.
Regional Distributors
Secure your market with exclusive territory rights, factory-direct stable inventory support, and official brand authorization from a 15-year ISO9001 certified manufacturer.
Partner Acceleration Package
Submit an inquiry today to unlock exclusive resources designed to help you sell faster.
- 📊 Professional Test Report Pack: Includes verified 30m/50m lux data and direct comparison charts against industry benchmarks.
- 🎥 Free Unbranded HD Media: High-quality unboxing and real-world road test videos ready for your social media marketing.
- 🎁 Evaluation Sample Offer: The first 3 verified business inquiries daily qualify for a 50% discount on initial evaluation units.
Ready to Upgrade Your Product Portfolio?
Contact our factory-direct sales team for detailed pricing tiers, custom OEM packaging options, and technical documentation.
