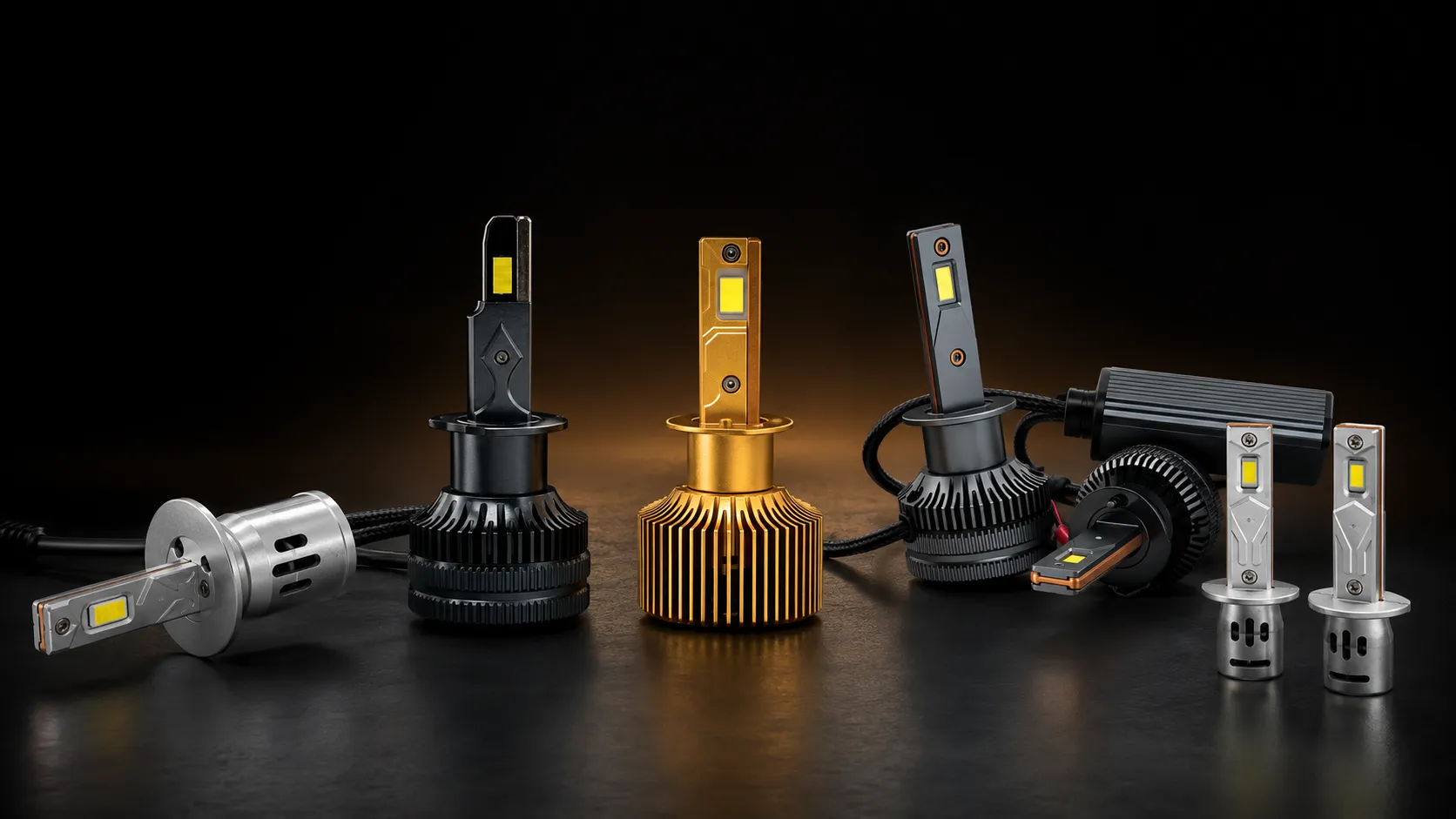

H1 LED Headlight Bulbs Manufacturer
Source H1 LED bulbs for your wholesale, distribution or private-label business. Choose from compact fanless, high-output fan-cooled and CANBUS-ready solutions matched to your target market.
- Multiple H1 Series Available
- OEM Logo & Packaging
- Sample Orders Supported
- 12V/24V Options
Base Detail
OEM Box
Find the Right H1 LED Bulb for Your Market
Different markets need different price levels, installation sizes, power outputs and decoding solutions. Start with the requirement that matters most to your customers.
Compact Fit
Designed for limited rear housing space, pursuing a 1:1 halogen size ratio for easy installation.
View Compact H1High Output
For distributor markets prioritizing high brightness, advanced cooling, and premium performance.
View High-Output H1CANBUS Ready
Solutions addressing dashboard errors and flickering, suitable for European and American models.
View CANBUS H1Value Wholesale
Cost-effective models for price-sensitive markets requiring large volumes and stable quality.
View Wholesale ModelsWholesale H1 LED Headlight Bulb Range
Compare LEZEN H1-compatible series by installation size, cooling structure, power level and target price. Request the complete datasheet for confirmed specifications and packing details.
Premium
V4 H1 LED Bulb
Smart Decode Series
- LED Chip CSP4575
- Cooling Dual Ball Fan
- Power 45W /Pair
- Voltage 12V
- Driver Internal
- Color Temp 6500K Standard
canbus

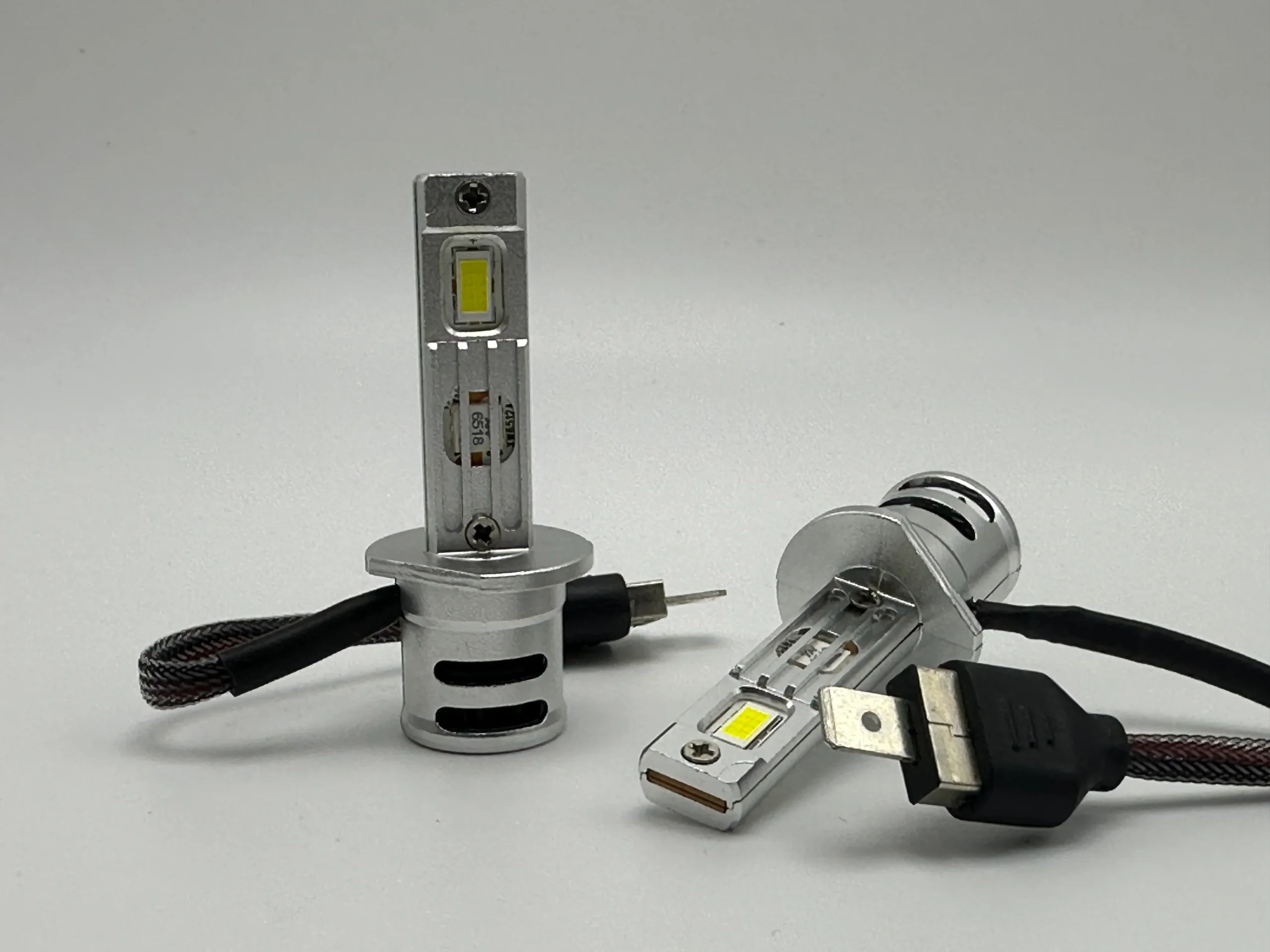

V5 H1 LED Bulb
Smart Decode Series
- LED Chip Custom CSP
- Cooling Liquid Cooling + Fan
- Power 50W /Pair
- Voltage 12V
- CANBUS Internal Smart
- Size Ratio Near 1:1 Halogen
Entry/Mid

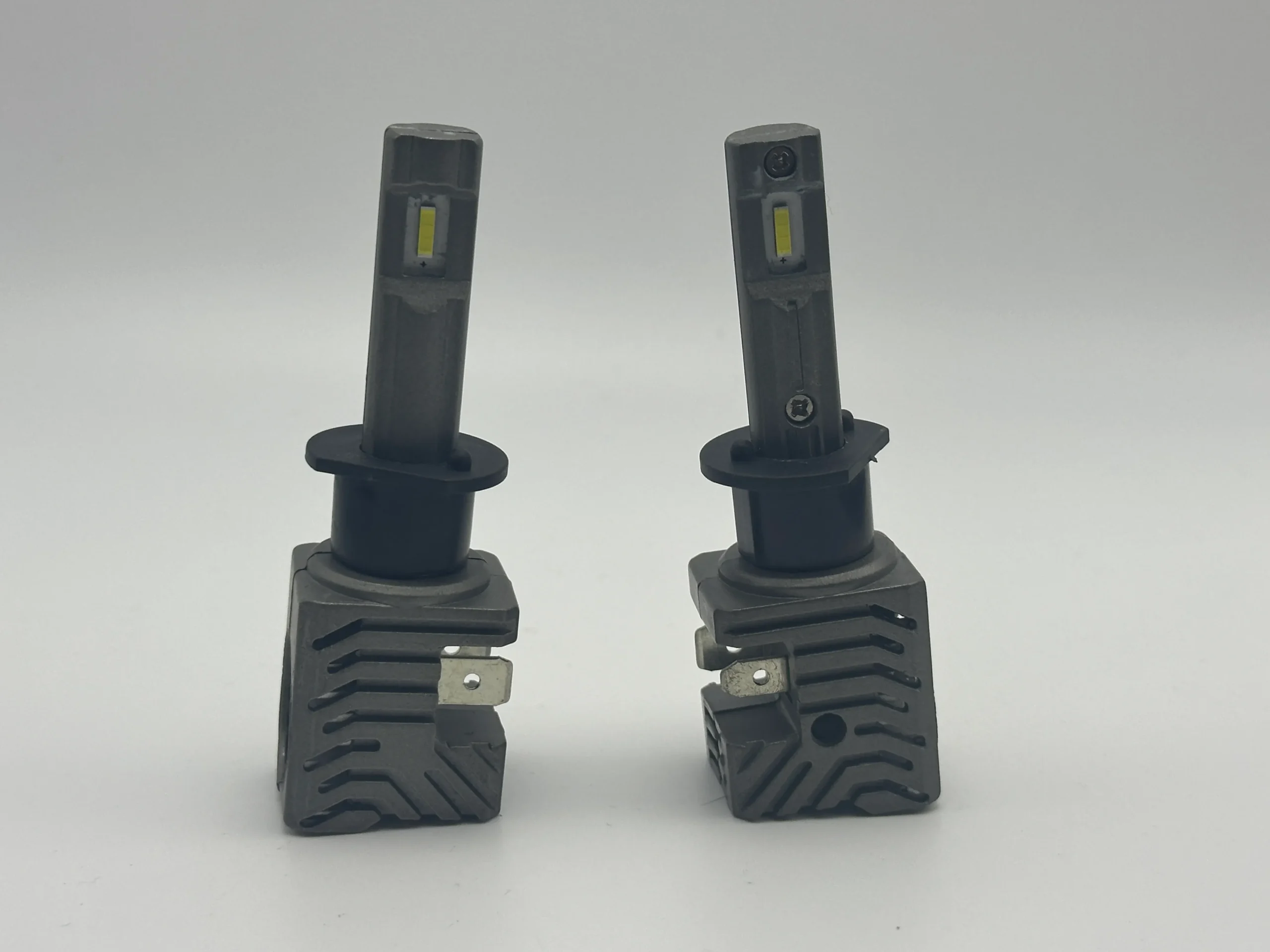

V3 H1 LED Bulb
Compact Fanless Series
- LED Chip Standard CSP
- Cooling Aviation Aluminum
- Power 40W /Pair
- Voltage 12V Options
- Driver Integrated
- Noise Level 0 dB
Advanced
V2 H1 LED Bulb
Compact Fanless Series
- LED Chip Automotive CSP
-
Cooling Fanless
- Power 36W /Pair
- Voltage 12V Options
- Driver Integrated
- Lifespan 30,000+ Hrs
Advanced

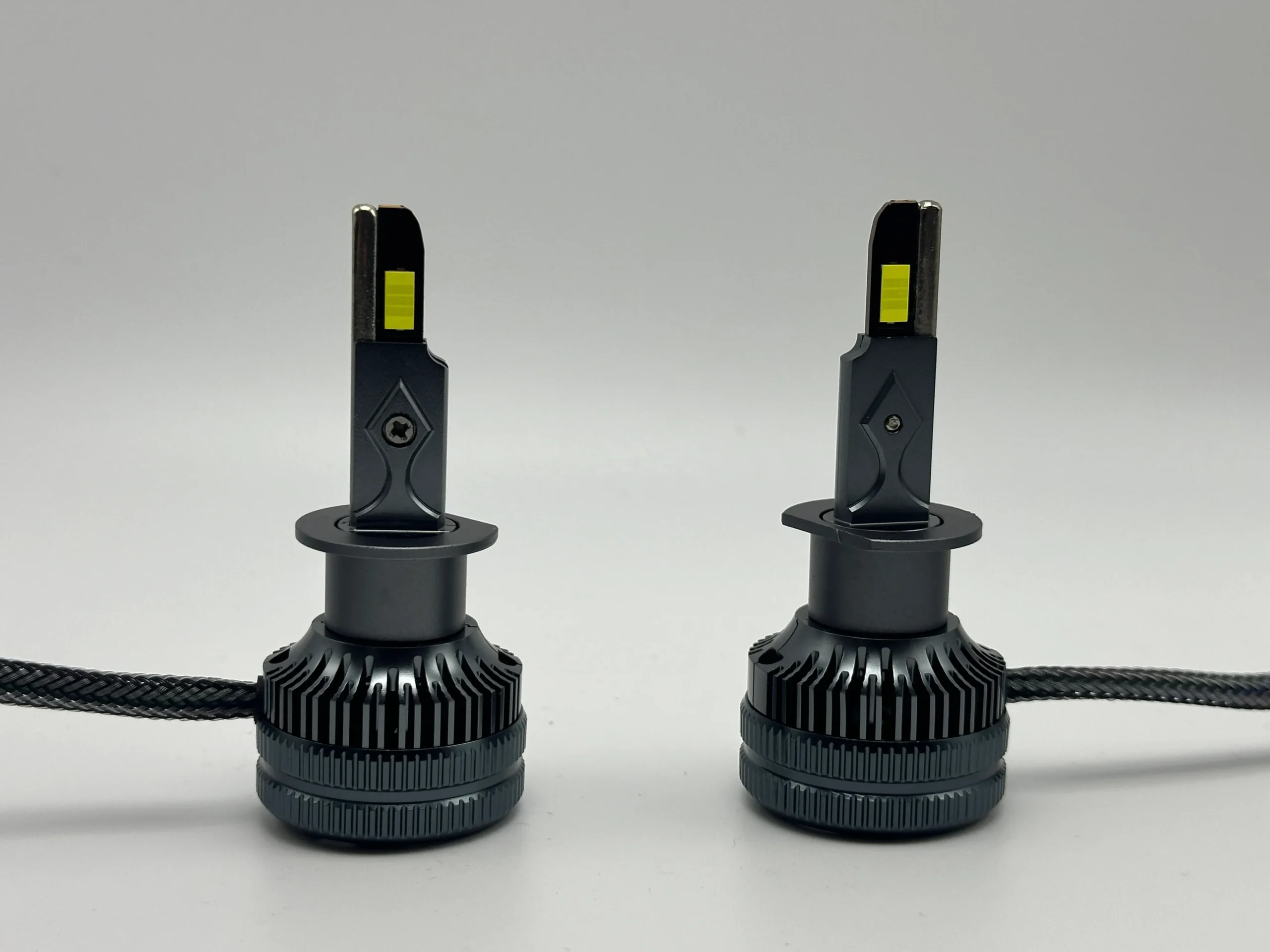

L18 H1 LED Bulb
Reliable Cooling Series
- LED Chip Custom CSP
- Cooling Liquid Cooling + Fan
- Power 100W /Pair
- Voltage 12V/24V
- Driver External/Internal
- Color Temp 6000K
Pro

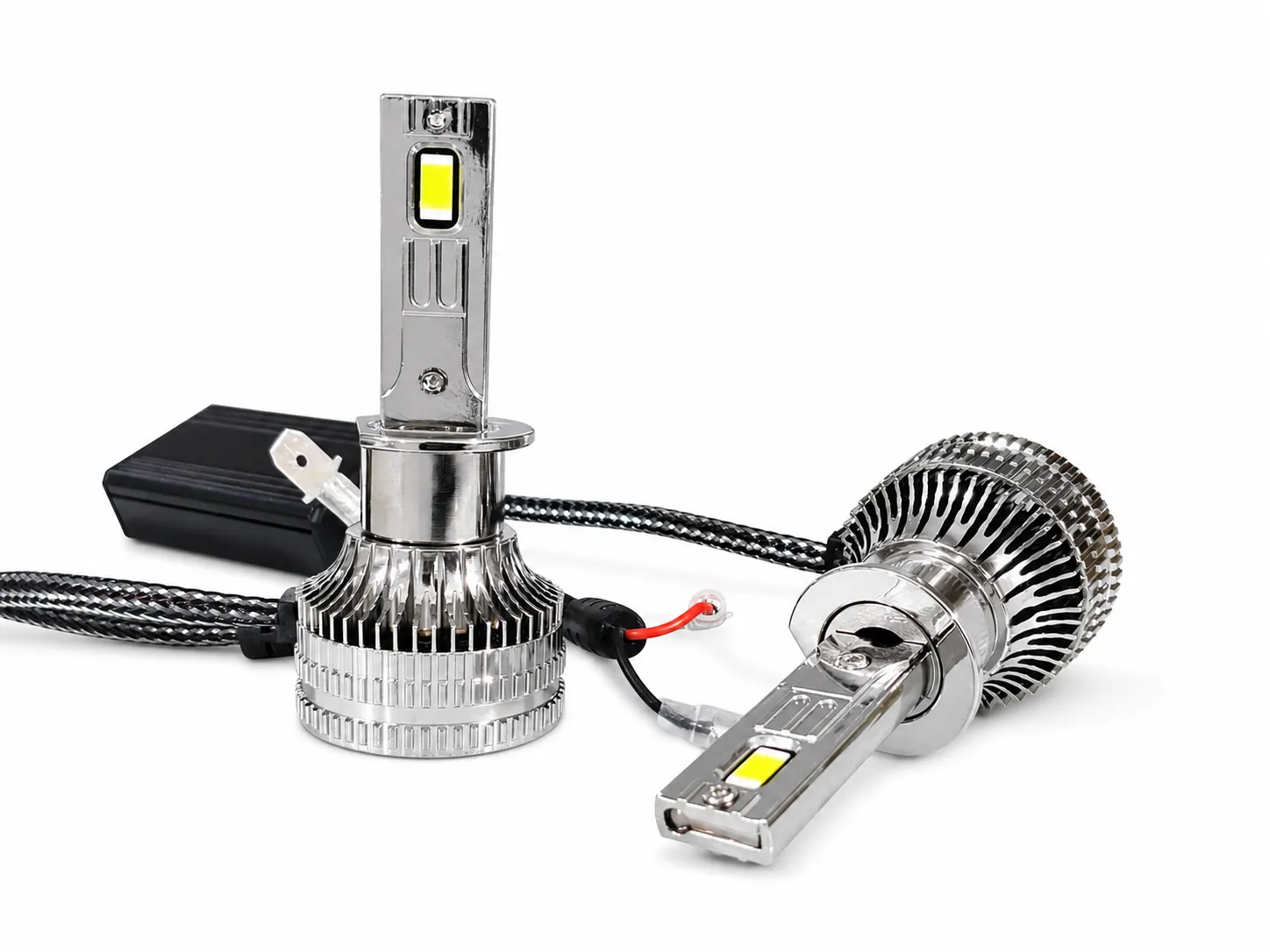

X9 H1 LED Bulb
Maximum Output Series
- LED Chip 3570 CSP
- Cooling Liquid Cooling + Fan
- Power 140W /Pair
- Voltage 12V/24V
- Driver External Smart
- Color Temp 6500K
Value
L24 H1 LED Bulb
Economy Fanless Series
- LED Chip Standard CSP
- Cooling Mini Fan
- 6Power 60W /Pair
- Voltage 12V/24V
- Driver Internal
- Color Temp 6000K
Mini

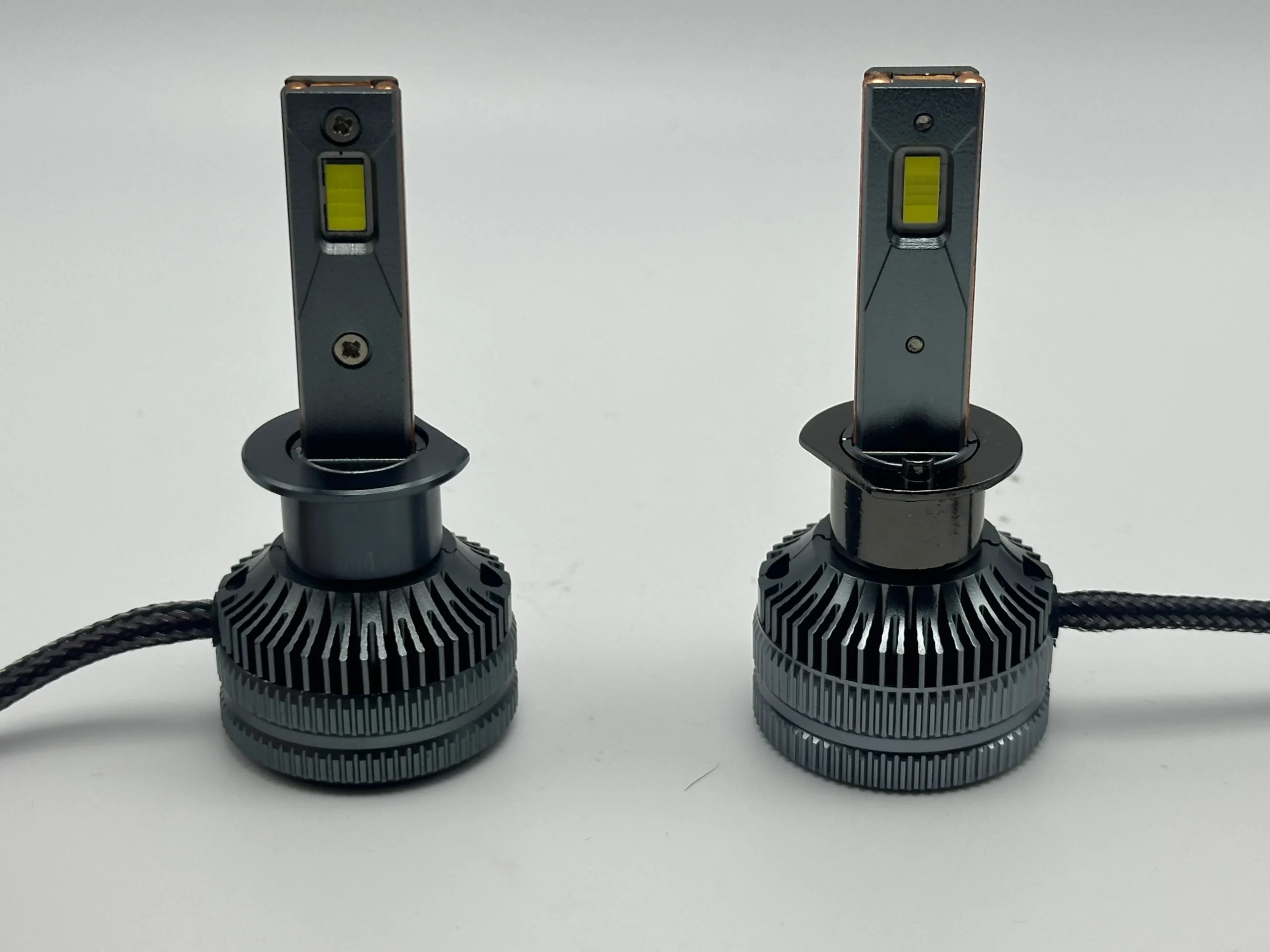

L19 H1 LED Bulb
High-Performance Series
- LED Chip Micro CSP
- Cooling Dual Copper-Pipe + Fan
- Power 160W /Pair
- Voltage 12V/24V
- Driver External
- Installation Plug & Play
Premium

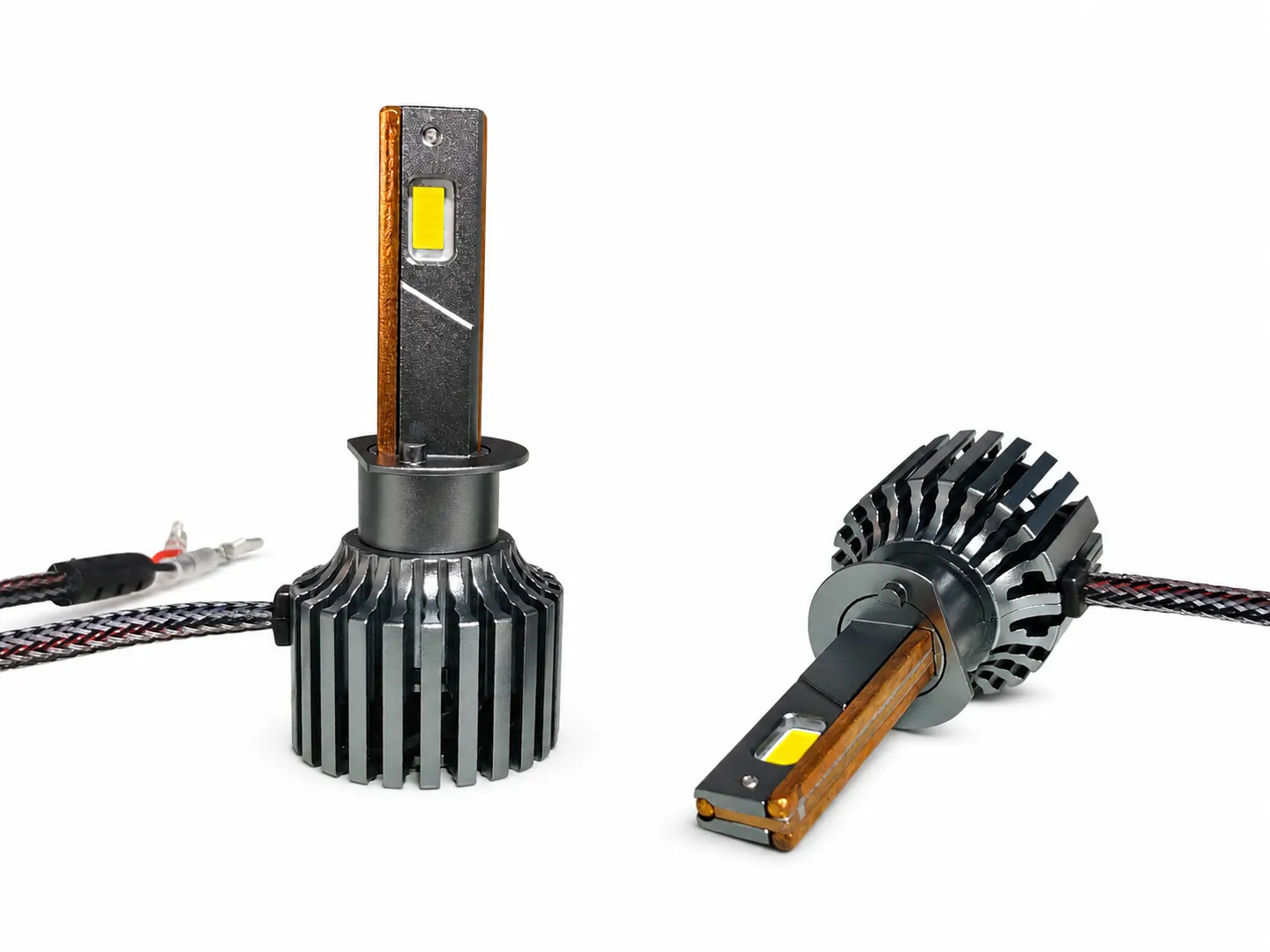

M33 H1 LED Bulb
Smart Decode Series
- LED Chip High-Power CSP
- Cooling 3 Copper-Pipe + Fan
- Power 200W /Pair
- Voltage 12V/24V
- CANBUS External
- Color Temp 6500K
Dual-Color

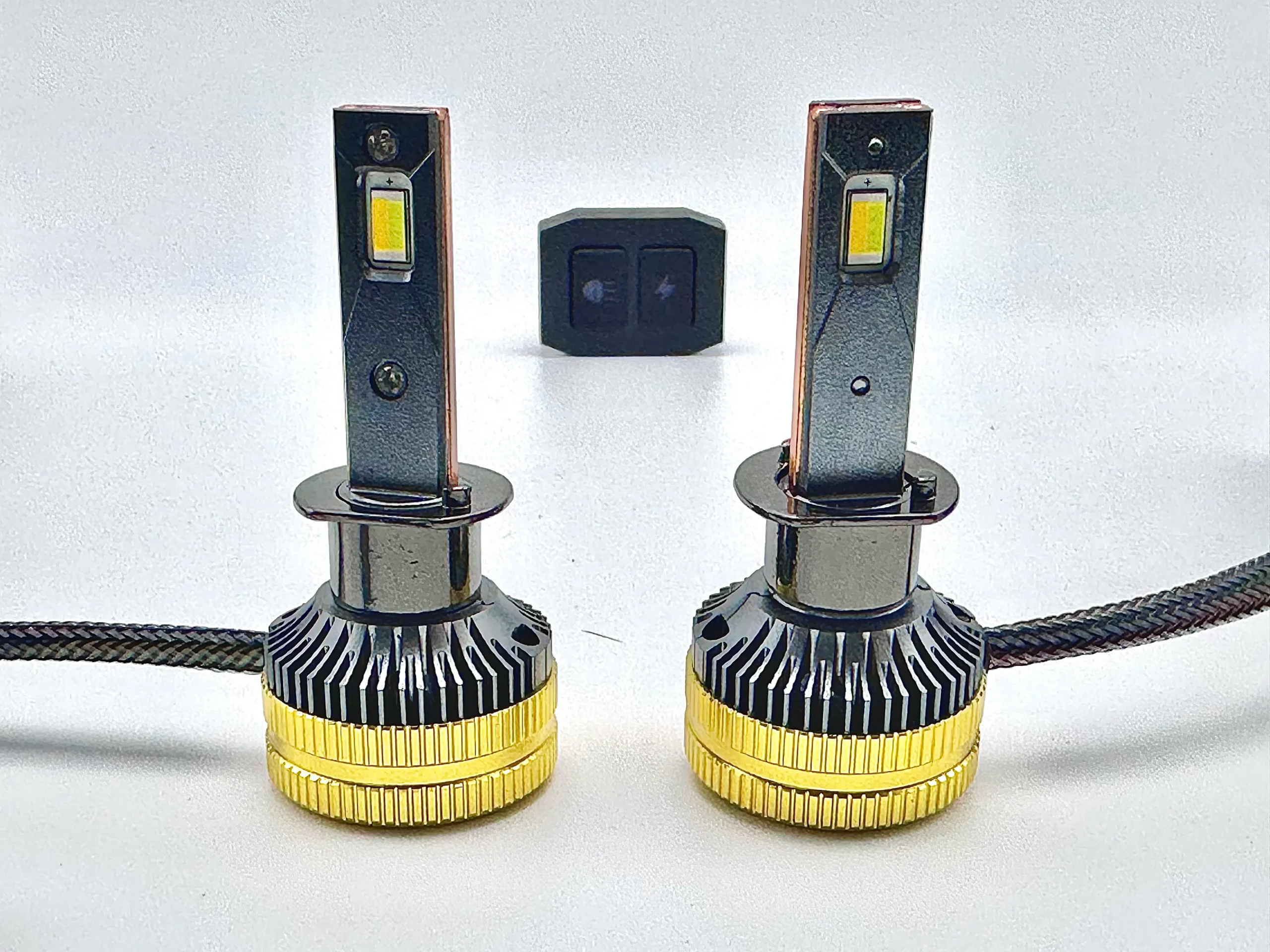

M32 H1 LED Bulb
Multi-Weather Series
- LED Chip Dual-Color CSP
- Cooling Dual Copper-Pipe + Fan
- Power 120W /Pair
- Voltage 12V/24V
- Driver External
- Color Temp 3000K / 6500K
Classic

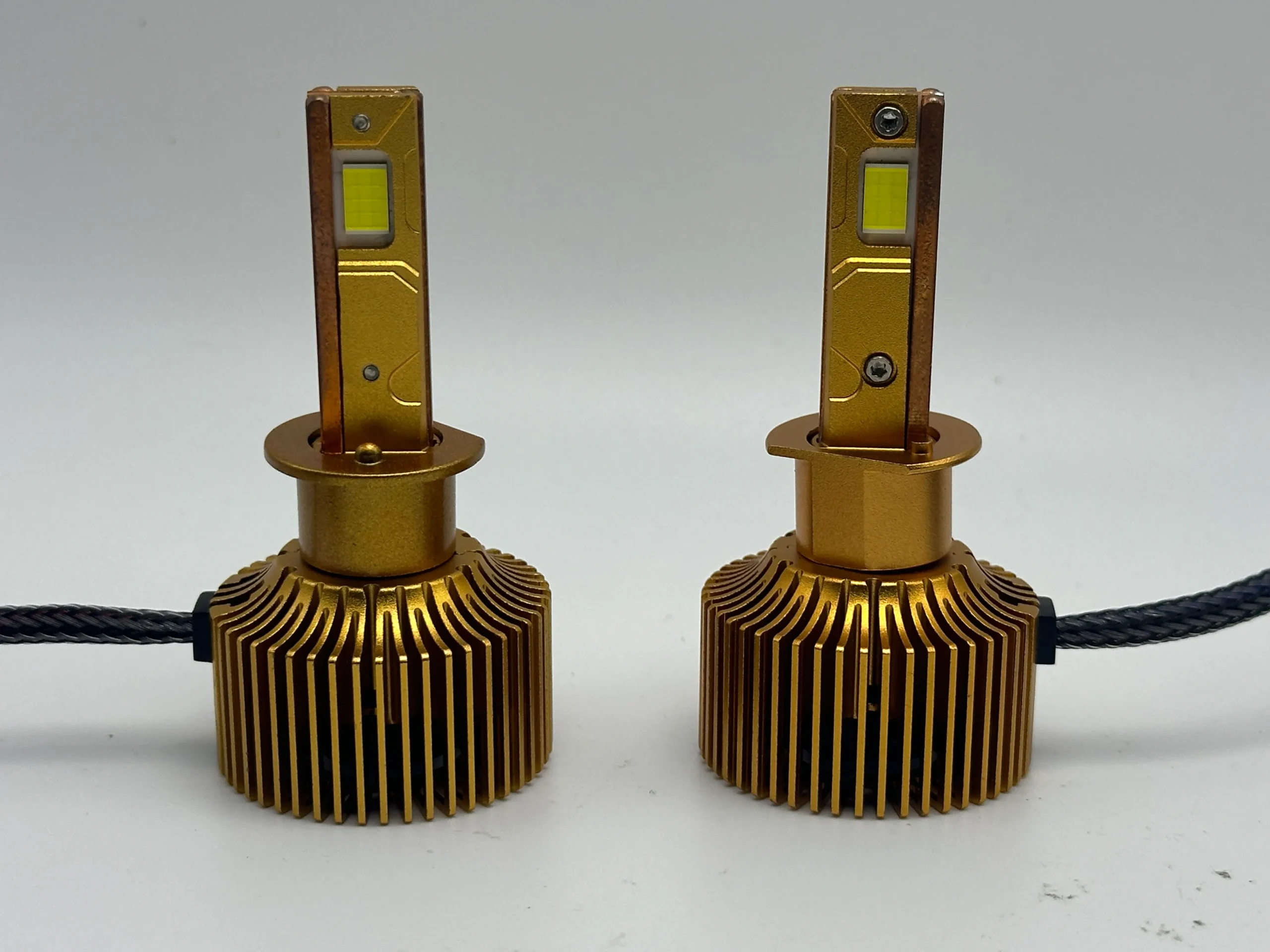

M38S H1 LED Bulb
High-Output Fan-Cooled Series
- LED Chip 1860 CSP
- Cooling 3 Copper-Pipe + Fan
- Power 280W /Pair
- Voltage 12V/24V
- Driver External
- Color Temp 6000K
MAXIMUM OUTPUT

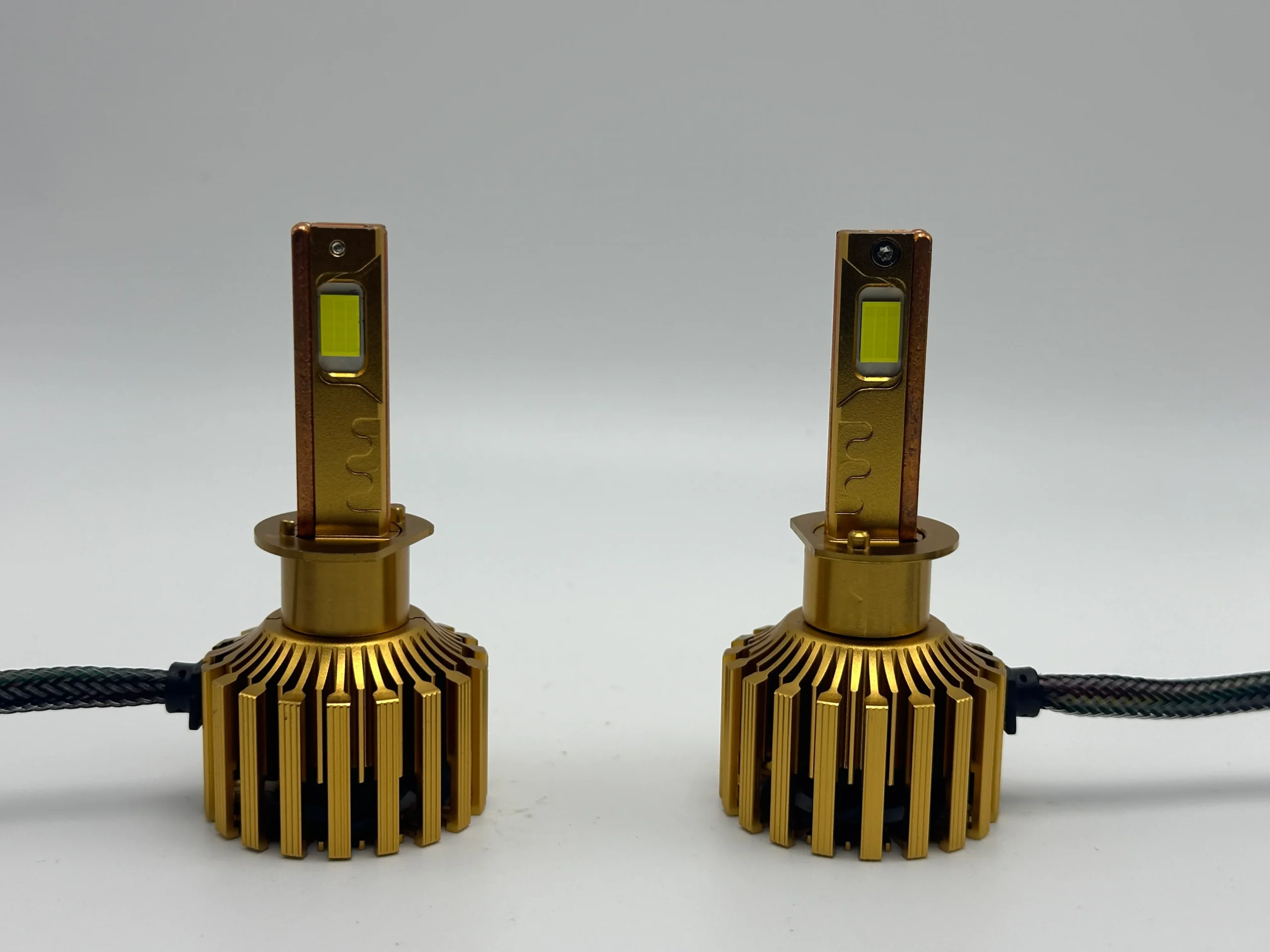

M38 H1 LED Bulb
MAXIMUM OUTPUT Fan-Cooled Series
- LED Chip 3570 CSP
- Cooling 3 Copper-Pipe + Fan
- Power 300W /Pair
- Voltage 12V/24V
- Driver External
- Color Temp 6500K
Compare Our Top 12 LED Bulb Solutions
| Series / Model | Cooling System | Size Profile | CANBUS | Voltage | Positioning | Best For (Target Market) |
|---|---|---|---|---|---|---|
| V4 | Dual Ball Fan | Mini | Advanced External | 12V | Mid-Range | Projector Upgrades / Enthusiasts |
| V5 | Fan + Copper Pipe | Mini | Optional External | 12V | Premium | High-Output Market |
| V3 | Fanless | Mini | Advanced Integrated | 12V | Mid-High | Extreme Climates / Commercial |
| V2 | Fanless | Ultra-Mini | Optional | 12V | Mid-High | Core Distributors |
| L18 | Liquid Cooling + Fan | Standard | External | 12V/24V | Mid-High | Trucks / Fleet Vehicles |
| X9 | Liquid Cooling + Fan | Compact | External Optional | 12V/24V | Mid-High | American Models |
| L19 | Dual Copper-Pipe + Fan | Compact | External Optional | 12V/24V | Premium | European Models |
| L24 | Fan-Cooled | Compact | Built-in | 12V/24V | Mid-Range | Japanese Models |
| M33 | 3 Copper-Pipe + Fan | Compact | External Optional | 12V/24V | Premium | High Volume / Retail |
| M32 | 3 Copper-Pipe + Fan | Large | Advanced External | 12V/24V | color changed | Universal Fit |
| M38S | 3 Copper-Pipe + Fan | Large | Advanced External | 12V/24V | Ultra-Premium | Motorcycle / Fog Lamps |
| OEM/ODM | Fully Configurable | Custom Mold | Configurable | 12V/24V/36V | Private Label | Global Brand Owners |
Need Help Choosing the Right SKUs?
Send us your target price, vehicle applications, and local market requirements. Our engineers will recommend 2–3 suitable LED models for sample testing.

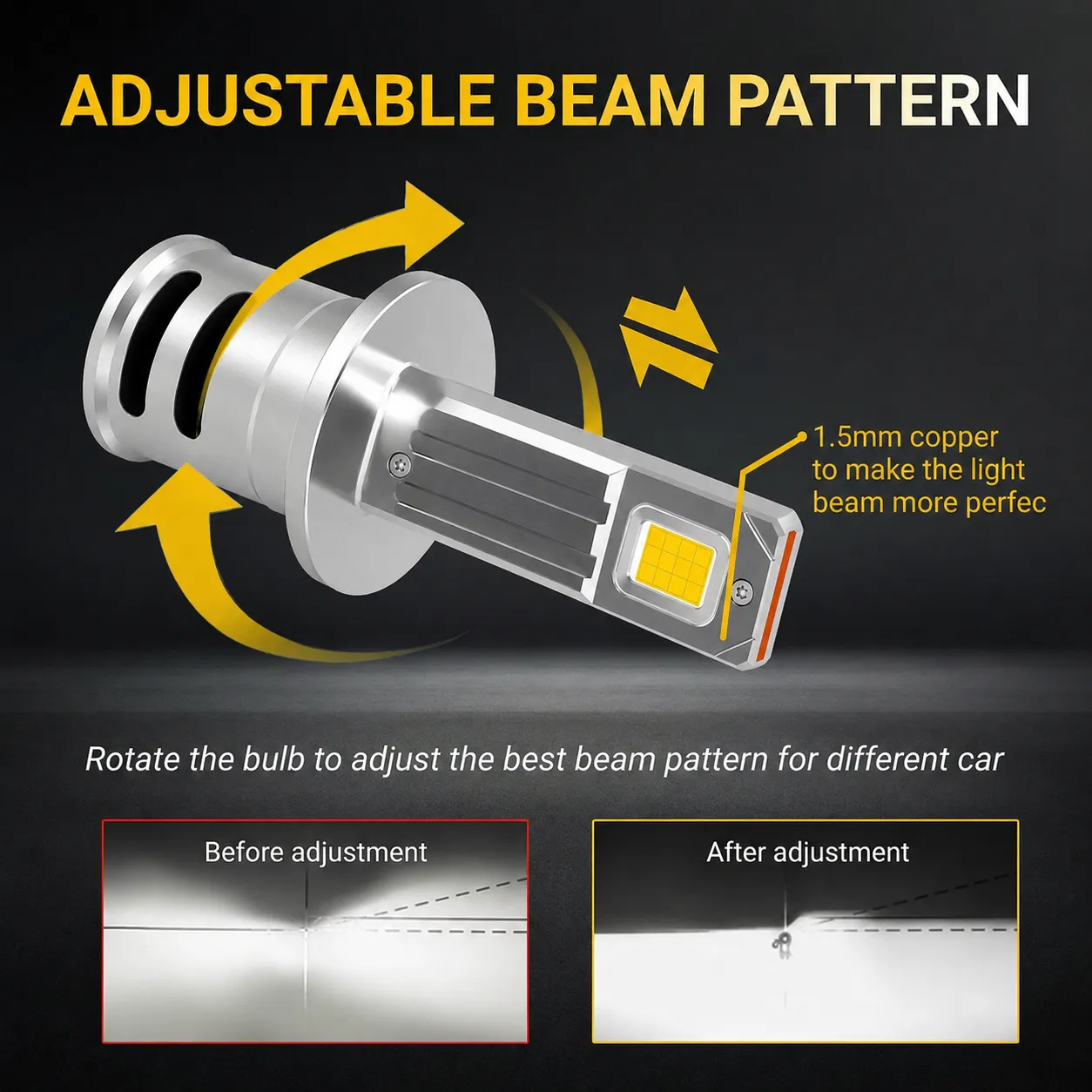

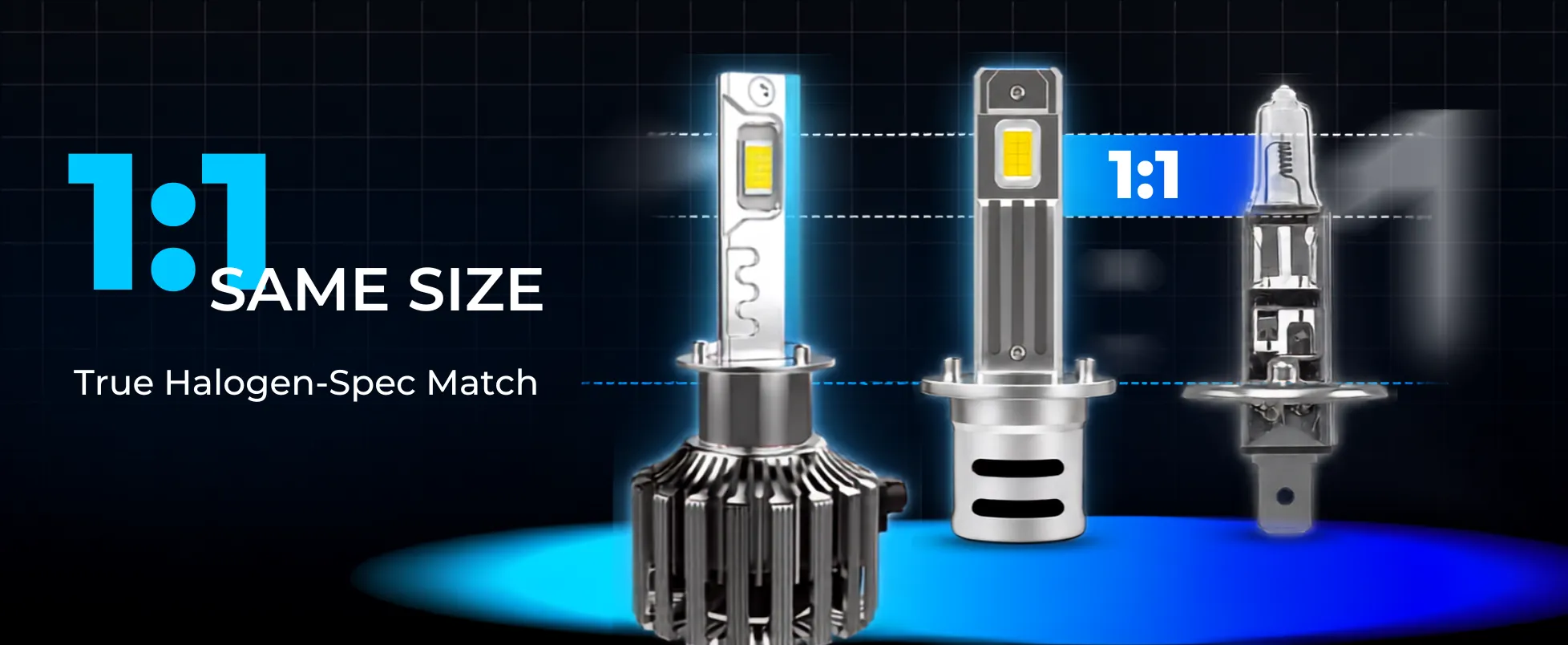

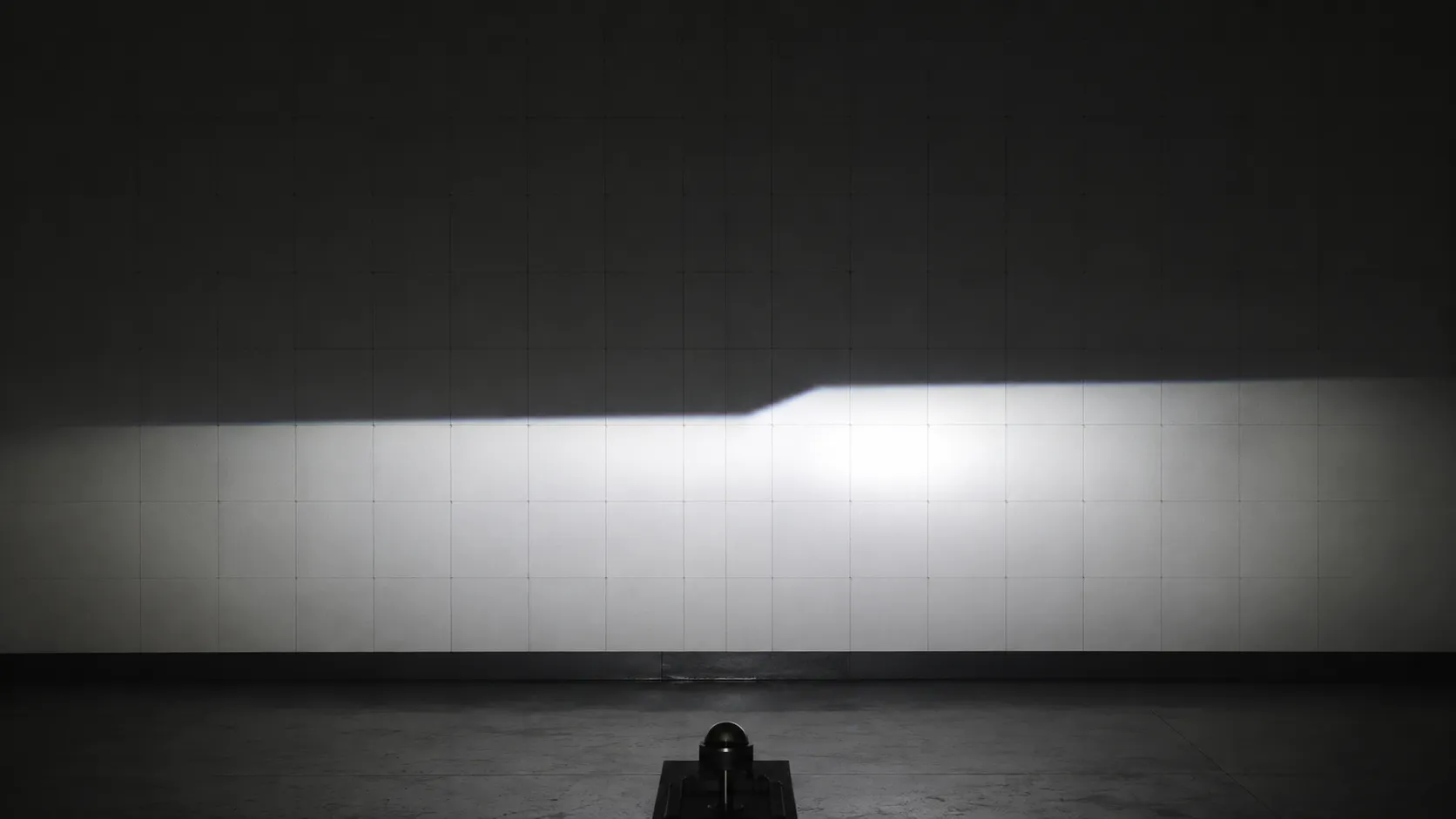

H1 Beam Position Designed Around the Halogen Focal Point
High lumen output alone does not create a useful beam. Because H1 is a single-filament structure, the position and thickness of the LED chips must stay close to the original H1 halogen filament location.
LEZEN evaluates the bulb structure, chip spacing and holder position to improve beam concentration and reduce scattered light. Designed for accurate focal alignment in compatible H1 housings.
Request Beam Test Photos
Built for Easier H1 Installation
Compact Rear Profile
Reduced rear cooling structure depth minimizes interference with the headlamp dust cover in tight spaces.
Removable H1 Holder
Allows installers to secure the base with the retaining clip first, then insert and lock the bulb body.
External Driver Options
Match different driver solutions based on vehicle space constraints and CANBUS decoding requirements.
Adapter Support
Guidance provided for vehicles requiring specialized retaining clips or aftermarket H1 adapters.
Important Fitment Notice
H1 identifies the bulb socket, but it does not guarantee fitment in every vehicle. Please confirm the headlamp housing depth, retaining clip style, rear-cover space and CANBUS requirements before ordering in bulk.
Cooling Options for Different H1 Product Levels
We design cooling systems matched to the H1 dimension limits and power output goals, ensuring stable lumen output over time, not just peak initial brightness.
Fanless H1
- Highly compact structure
- Zero fan noise
- Optimized for low-to-mid power
- Ideal for product lines prioritizing stability and easy installation
Compact Fan-Cooled
- Balance between size and cooling
- Suitable for mainstream distributor markets
- Copper substrate configurations available
- Sustains higher mid-range wattage
High-Output H1
- Dual copper pipes + active fan
- Built for high-power demands
- Requires confirmation of housing space
- Passes rigorous long-term thermal stability testing
Focus on Thermal Stability
Professional buyers know that initial lumen output drops as heat increases. We test and record lumen output after 0, 10, 30, and 60 minutes to ensure the chosen H1 cooling structure maintains a stable, safe operating temperature for long-term reliability.
Ask for our thermal test reportsBuild an H1 Product Line for Your Local Market
Entry-Level Wholesale Line
For price-sensitive markets requiring volume and basic upgrades.
- ✓ Standard CSP chips
- ✓ Standard wattage
- ✓ Simple white box or LEZEN packaging
- ✓ Lower trial order threshold
Distributor Core Line
The backbone for regional wholesalers focusing on quality and margin.
- ✓ Advanced cooling structures
- ✓ Upgraded intelligent drivers
- ✓ Multiple color temperature options
- ✓ Custom logo laser marking
- ✓ Branded OEM packaging
Premium Brand Line
For established brand owners seeking differentiation.
- ✓ High-output configurations
- ✓ Customized bulb body appearance
- ✓ Driver program matching
- ✓ Premium custom gift boxes
- ✓ Marketing materials support
Not sure which H1 series fits your price level? Send us your target retail price, sales country and expected order quantity. We will prepare a comparison and sample proposal.
Get a Market ProposalPrivate-Label H1 LED Bulbs for Your Brand
Start with existing H1 structures for faster market testing, or work with our team on appearance, driver, packaging and performance adjustments for a differentiated private-label product.
- Product logo laser marking

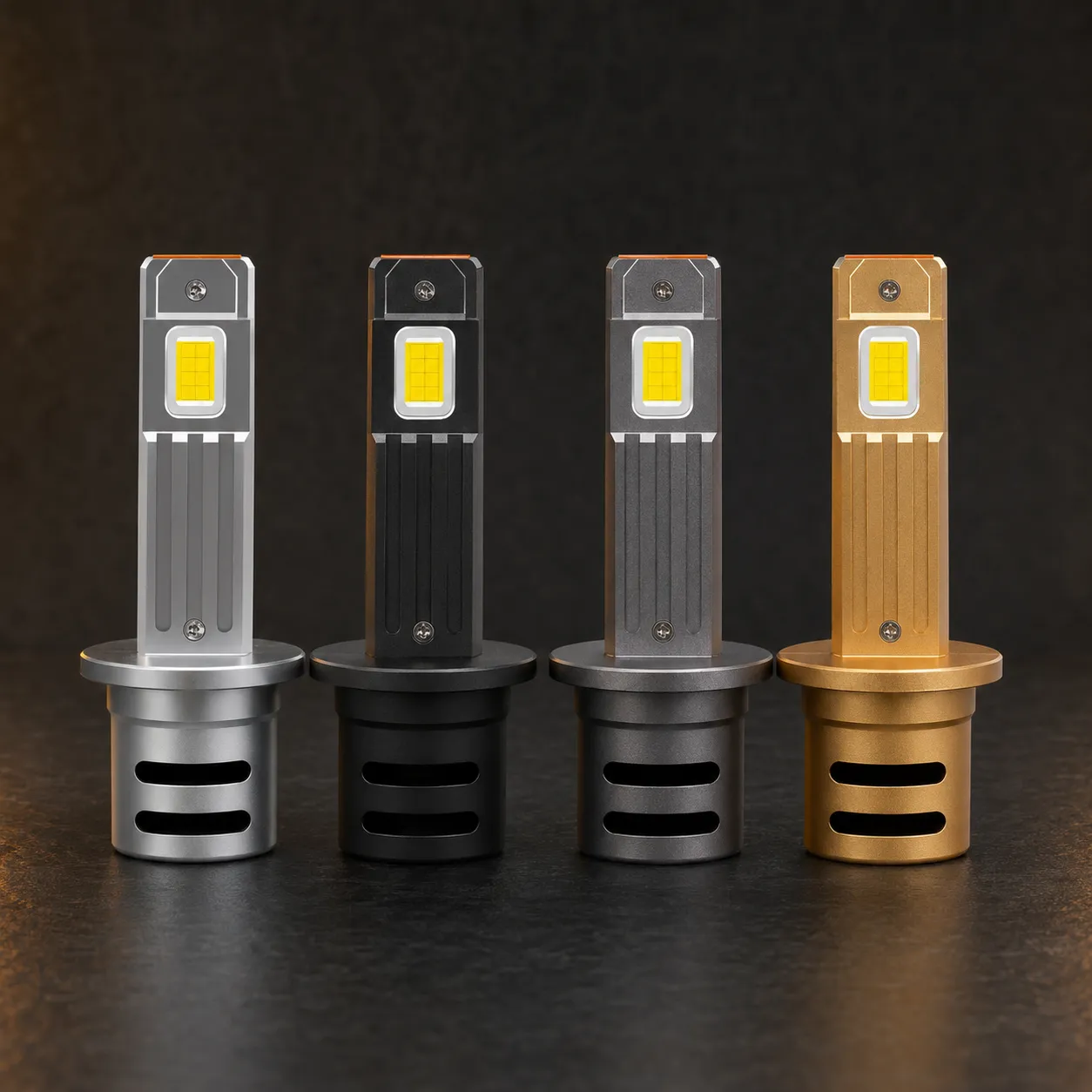

- Aluminum body color

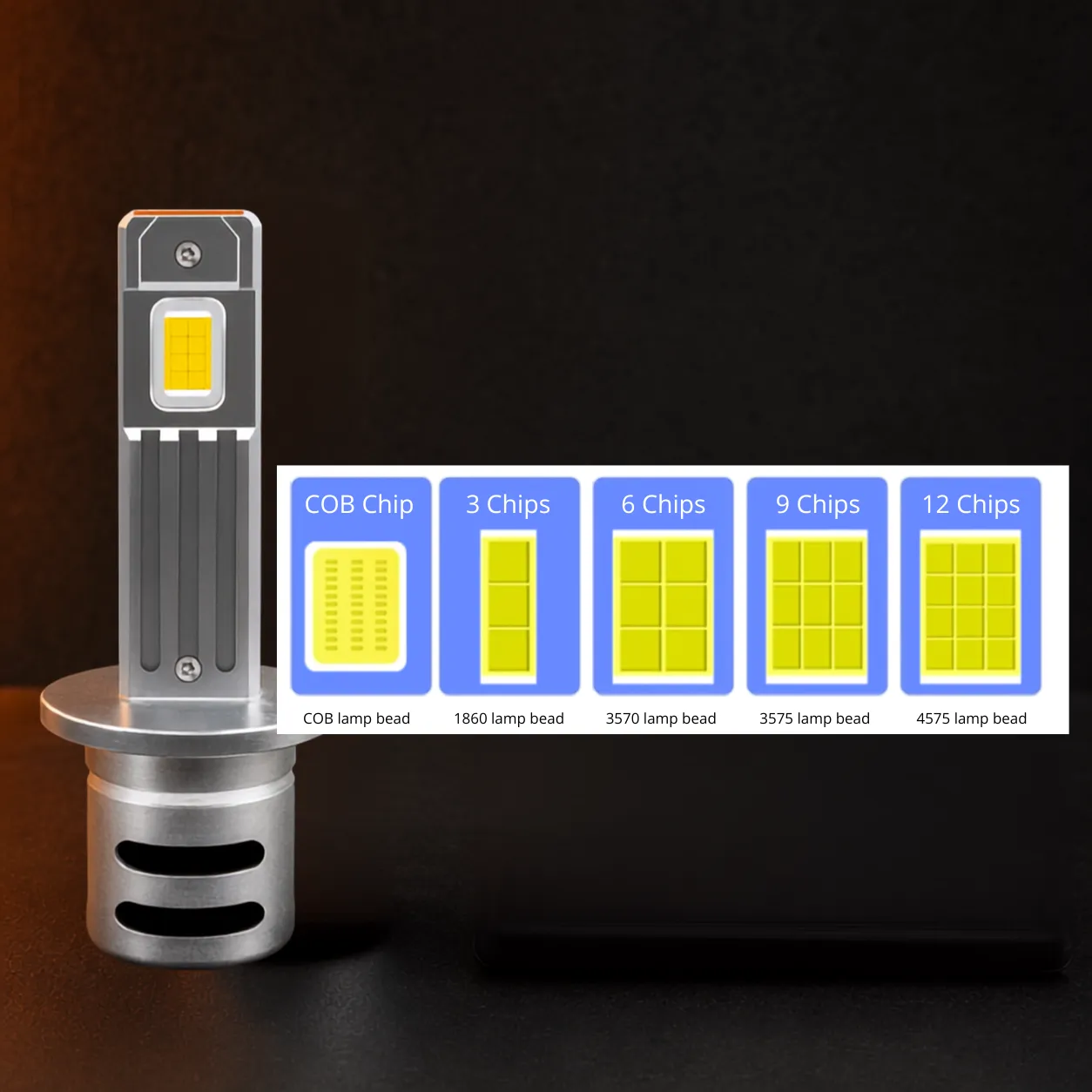

- LED chip configuration
- Driver & CANBUS solution
- Wattage positioning
- 3000K/4300K/6000K/6500K

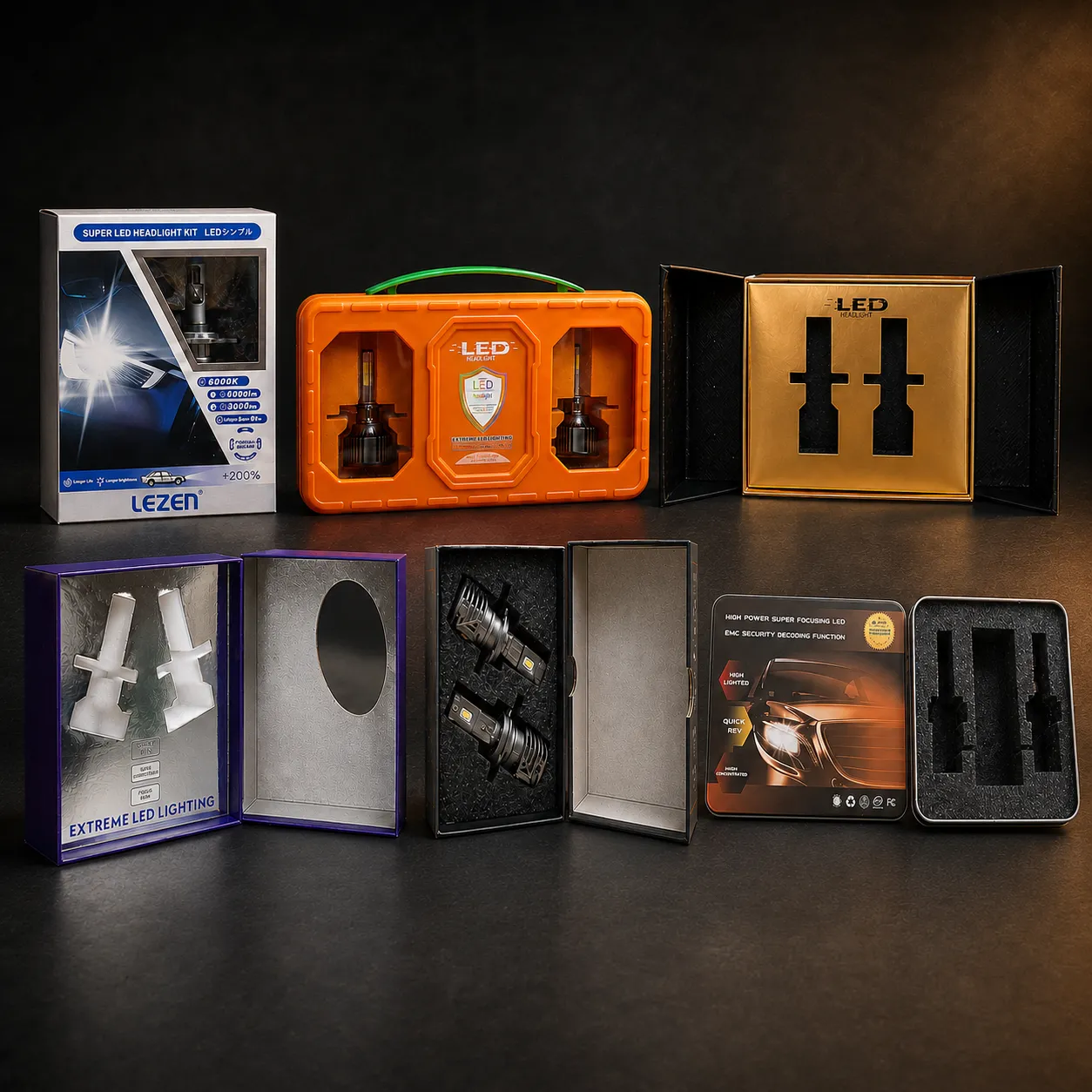

- Single or twin packaging
- Manual and label design
- Barcode / anti-counterfeit
- Marketing images & video
MOQ Guidelines: MOQ depends on the product structure and customization level (Logo vs. Custom Packaging vs. Private Mold). Mixed trial solutions are available for qualified distributor projects.
Quality Control for Consistent H1 Bulk Orders
We record key electrical and optical data by production batch to help reduce variation between samples and repeat bulk orders.
Compliance & Certification Notice
Certification and compliance documents vary by product and destination market. Factory management systems (IATF 16949 / ISO 9001) are distinct from individual product certifications (CE/RoHS). ECE R37 primarily applies to filament bulbs. Contact us to confirm the available compliance documents for your selected H1 LED replacement series in your specific country.
From H1 Sample Testing to Bulk Production
Share Market Requirements
Provide country, target price, sales channel, wattage, color temp, CANBUS needs and estimated quantity.
Model Recommendations
LEZEN provides 2–3 specific H1 solutions with detailed parameter comparisons.
Test Samples
Verify installation space, beam pattern, operating temperature, decoding and local market acceptance.
Confirm Branding
Finalize logo marking, packaging design, labels, manuals and outer carton details.
Mass Production
Production proceeds according to the confirmed sample, followed by rigorous batch inspections.
Shipment & Support
Receive packing lists, product images, and dedicated support for repeat bulk orders.
H1 LED Bulbs Wholesale FAQ
Do all LEZEN LED headlight series support an H1 socket?
Can I order H1 samples before a bulk order?
Can you customize my logo and packaging?
Does an H1 LED bulb fit every vehicle using an H1 halogen bulb?
Are CANBUS decoders available?
Can you produce 12V and 24V H1 LED bulbs?
Get H1 LED Bulb Specifications and Wholesale Pricing
Provide your market requirements below. Our team will analyze your needs and provide a customized proposal.
You will receive:
- Recommended H1 models
- Specification comparison
- MOQ and pricing tiers
- Sample options
- OEM packaging details
