Wholesale X9 140W
LED Headlight Bulbs
3570 CSP Chips with Copper-Pipe, Copper-Substrate and Fan Cooling
The LEZEN X9 Series is a high-output LED headlight solution developed for automotive lighting distributors, wholesalers and private-label brands. Rated at 140W per pair, X9 combines 3570 CSP chips with active thermal management.
High-Output Performance for Competitive Wholesale Markets
X9 is positioned between standard entry-level LED bulbs and premium multi-copper-pipe flagship models. It offers distributors a practical balance of rated power, active cooling, driver stability and competitive purchasing cost. Suitable for buyers expanding their high-output range without moving directly into the highest-priced category.
140W/Pair Positioning
A clear high-output specification that helps distributors separate X9 from standard low-power replacement bulbs.
Three-Stage Cooling
The copper substrate, single copper heat pipe and cooling fan work together to transfer and discharge heat.
External Driver Design
The separated driver keeps electronic heat away from the LED source and provides space for power-control components.
Eight Popular Bases
Cover common car headlight, high-beam, low-beam and fog-light replacement applications with one product series.
Available X9 LED Headlight Bulb Models
Eight Popular Bulb Bases for Headlight and Fog-Light Markets
The X9 Series is available in eight popular bulb-base configurations. All versions use the same 3570 CSP chip platform, three-stage cooling system, 6500K color temperature and external-driver structure. Buyers can combine multiple X9 bases in one quotation according to their local vehicle coverage and sales requirements.
| Model | Base | Light Function | Power | Cooling |
|---|---|---|---|---|
| X9 H1 | P14.5s | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 H3 | PK22s | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 H4 | P43t | High/Low Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 H7 | PX26d | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 H11 | PGJ19-2 | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 9005/HB3 | P20d | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 9006/HB4 | P22d | Single Beam | 140W/Pair | Pipe + Substrate + Fan |
| X9 880 | PG13 | Single Beam | 140W/Pair | Pipe + Substrate + Fan |

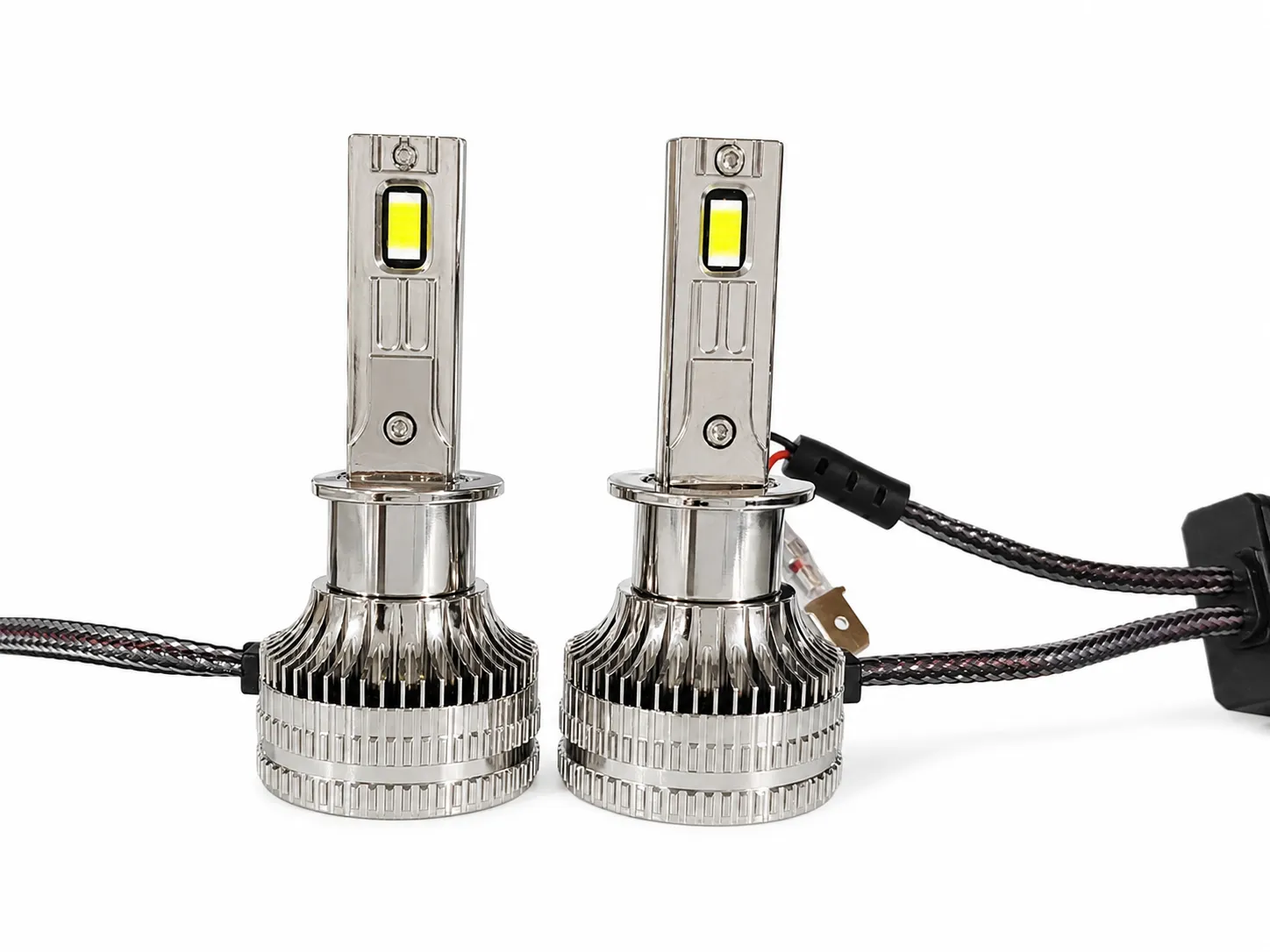

X9 H1
- Base: H1 / P14.5s
- Function: Single Beam
- Application: Headlight & auxiliary

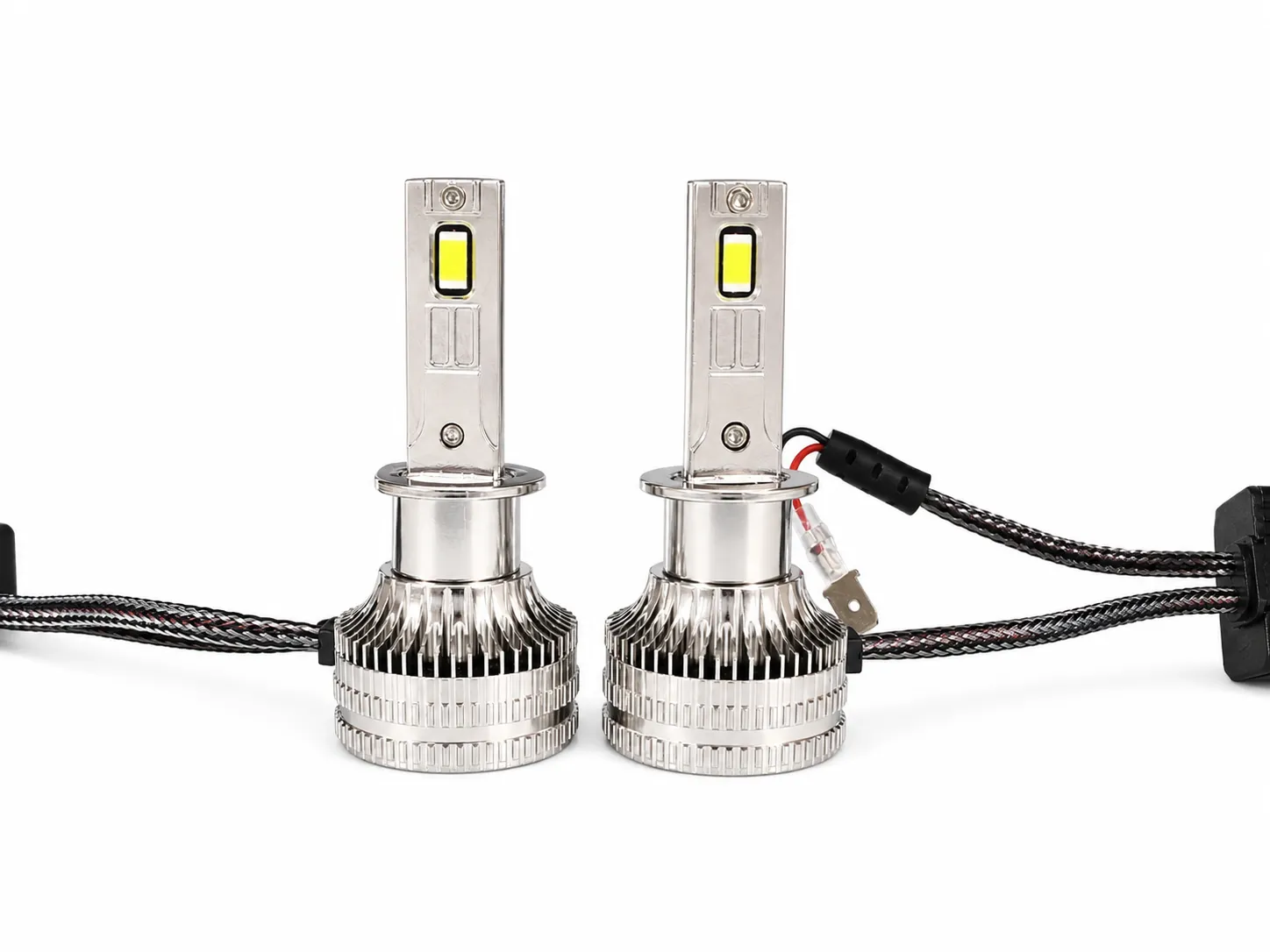

X9 H3
- Base: H3 / PK22s
- Function: Single Beam
- Application: Fog & auxiliary

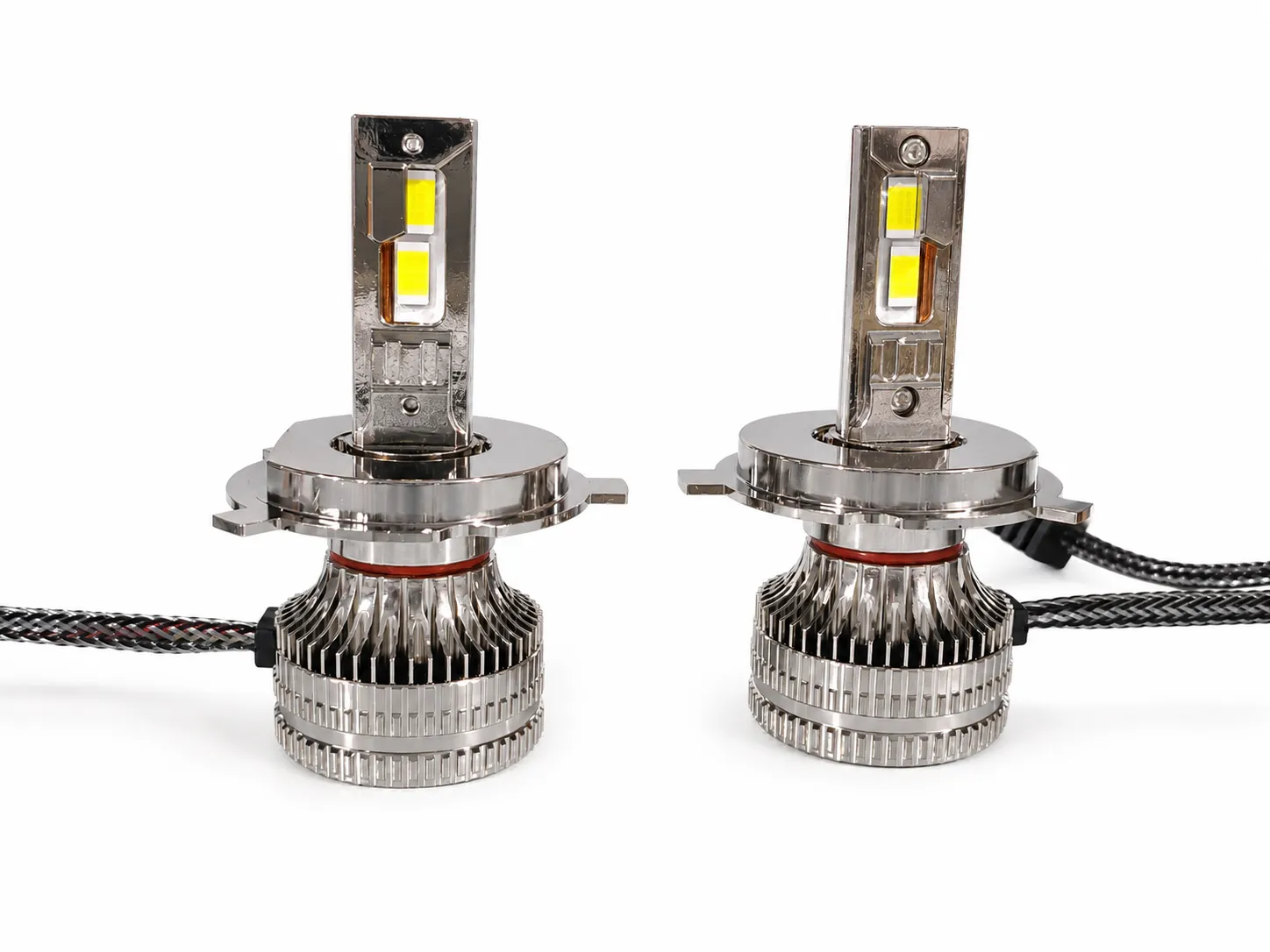

X9 H4
- Base: H4 / 9003 / P43t
- Function: Dual Beam (Hi/Lo)
- Features: Light shield included

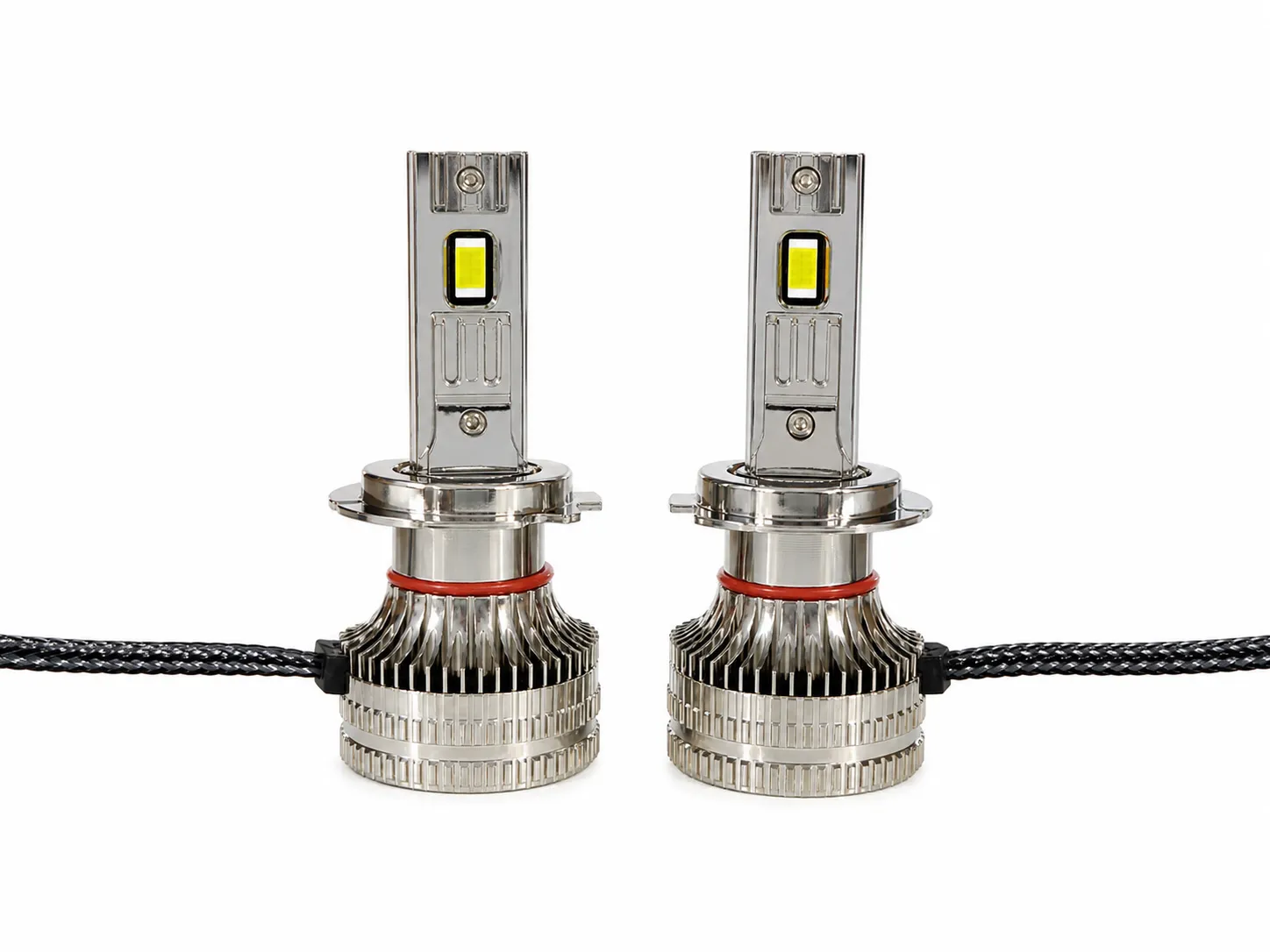

X9 H7
- Base: H7 / PX26d
- Function: Single Beam
- Application: Low or High beam

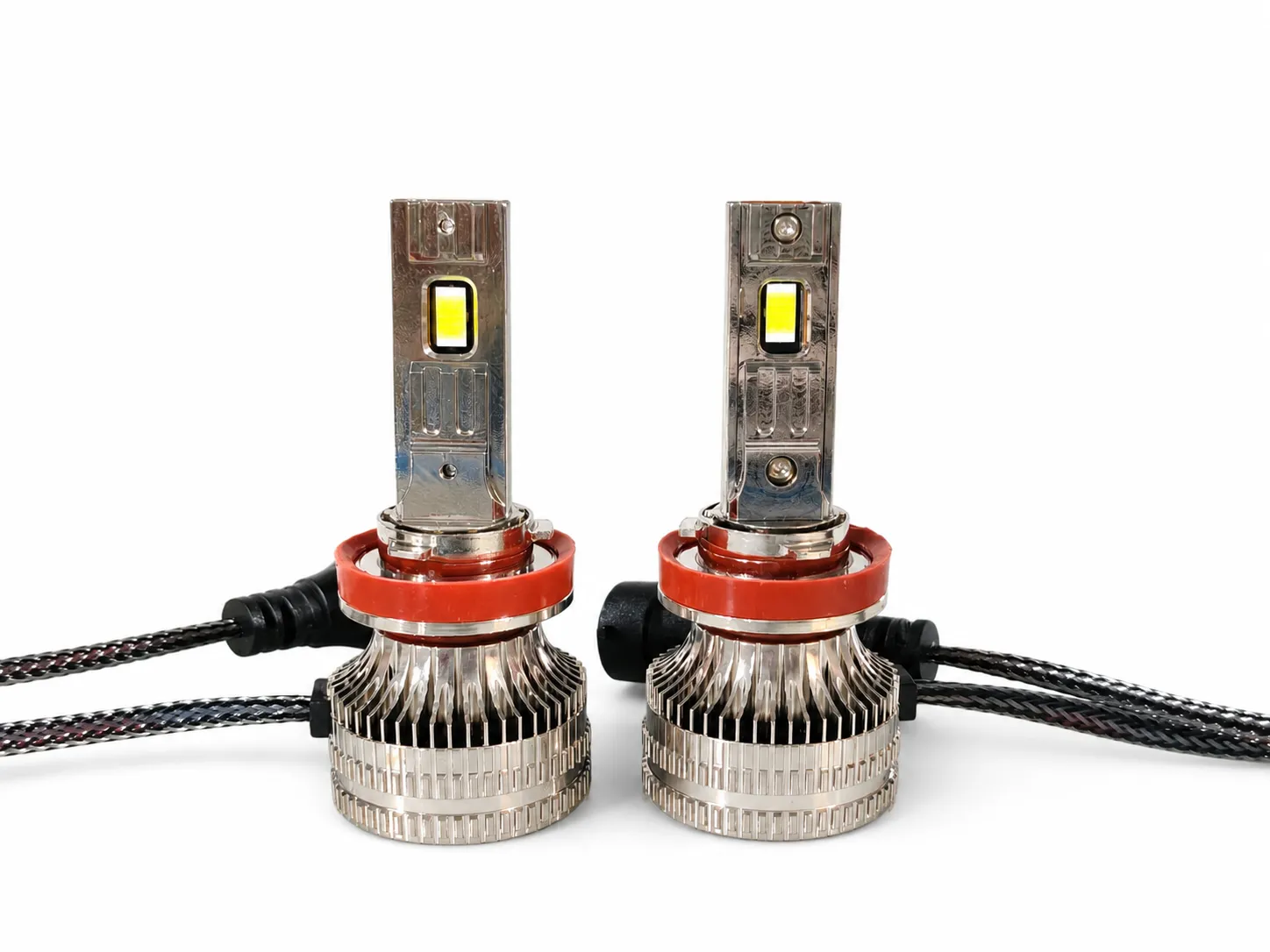

X9 H11
- Base: H11 / PGJ19-2
- Function: Single Beam
- Application: Low beam & Fog

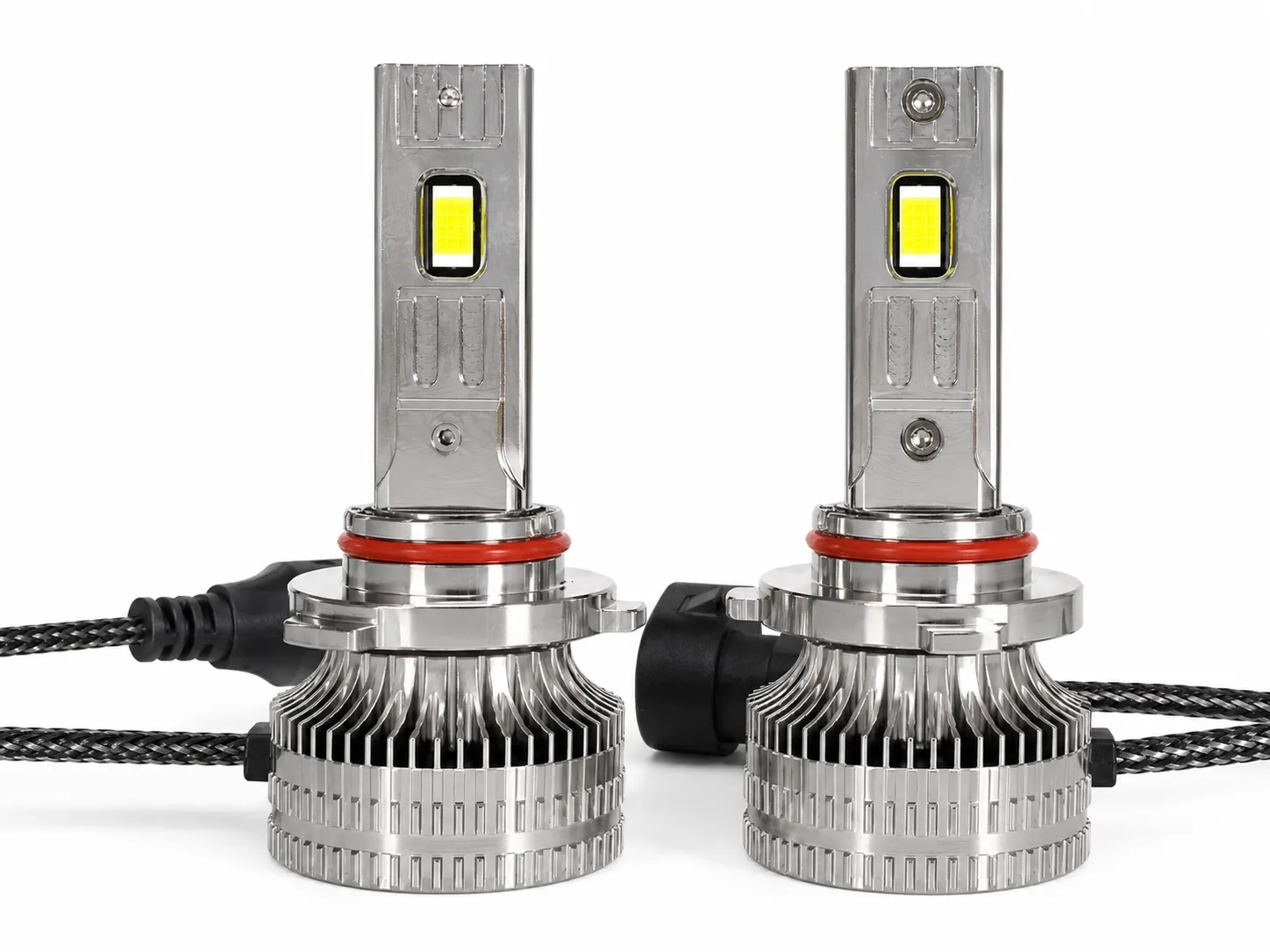

X9 9005/HB3
- Base: 9005 / P20d
- Function: Single Beam
- Application: High beam

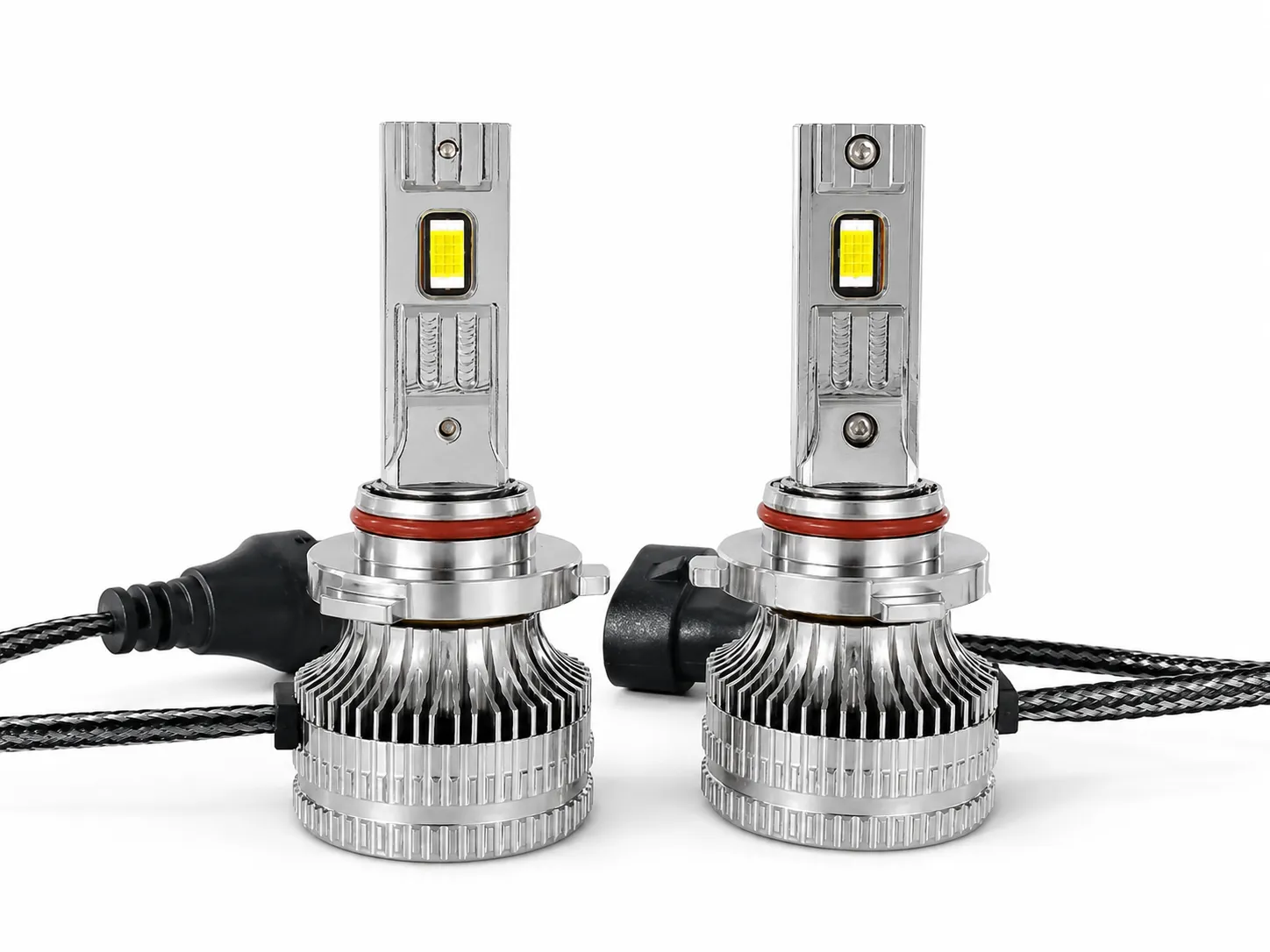

X9 9006/HB4
- Base: 9006 / P22d
- Function: Single Beam
- Application: Low beam

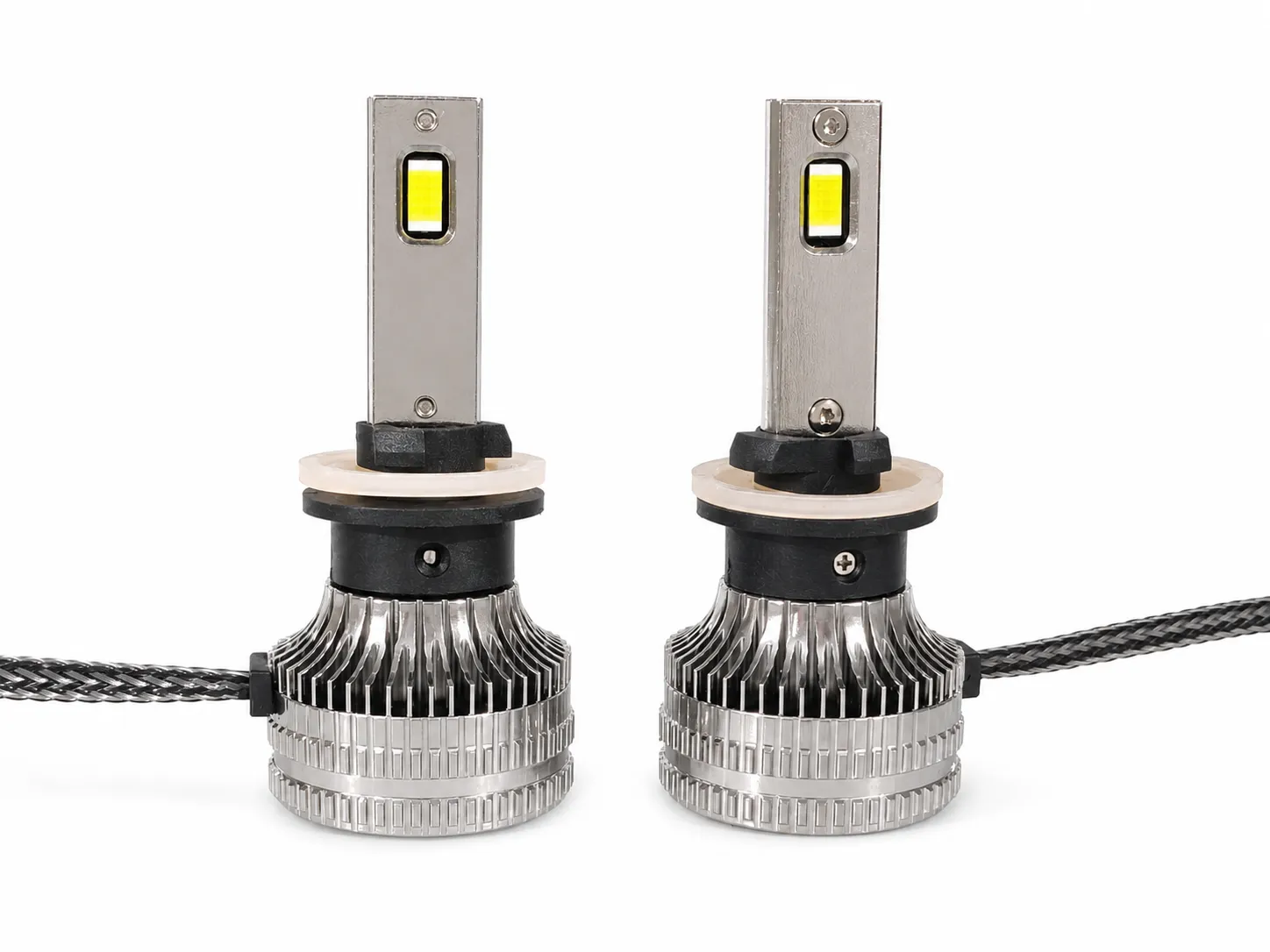

X9 880
- Base: 880 / PG13
- Function: Single Beam
- Application: Fog light
Need Prices for More Than One X9 Model?
Select the required X9 bases and send us your estimated quantity. We can prepare one combined quotation for H1, H3, H4, H7, H11, 9005, 9006 and 880 models.
3570 CSP Chips for Concentrated Light Output
X9 uses compact 3570 CSP chips positioned close to the original halogen filament location. The compact light-emitting area is designed to help the headlight reflector or projector collect and distribute the light more effectively.
Compact Light Source
The concentrated chip area supports more controlled optical focusing.
6500K Cool White
Provides a clean, modern lighting appearance for automotive replacement markets.
Base-Specific Evaluation
Beam-wall testing can be carried out according to the required bulb base and application.
Note: Beam performance should be evaluated according to the selected X9 model and target headlight housing.

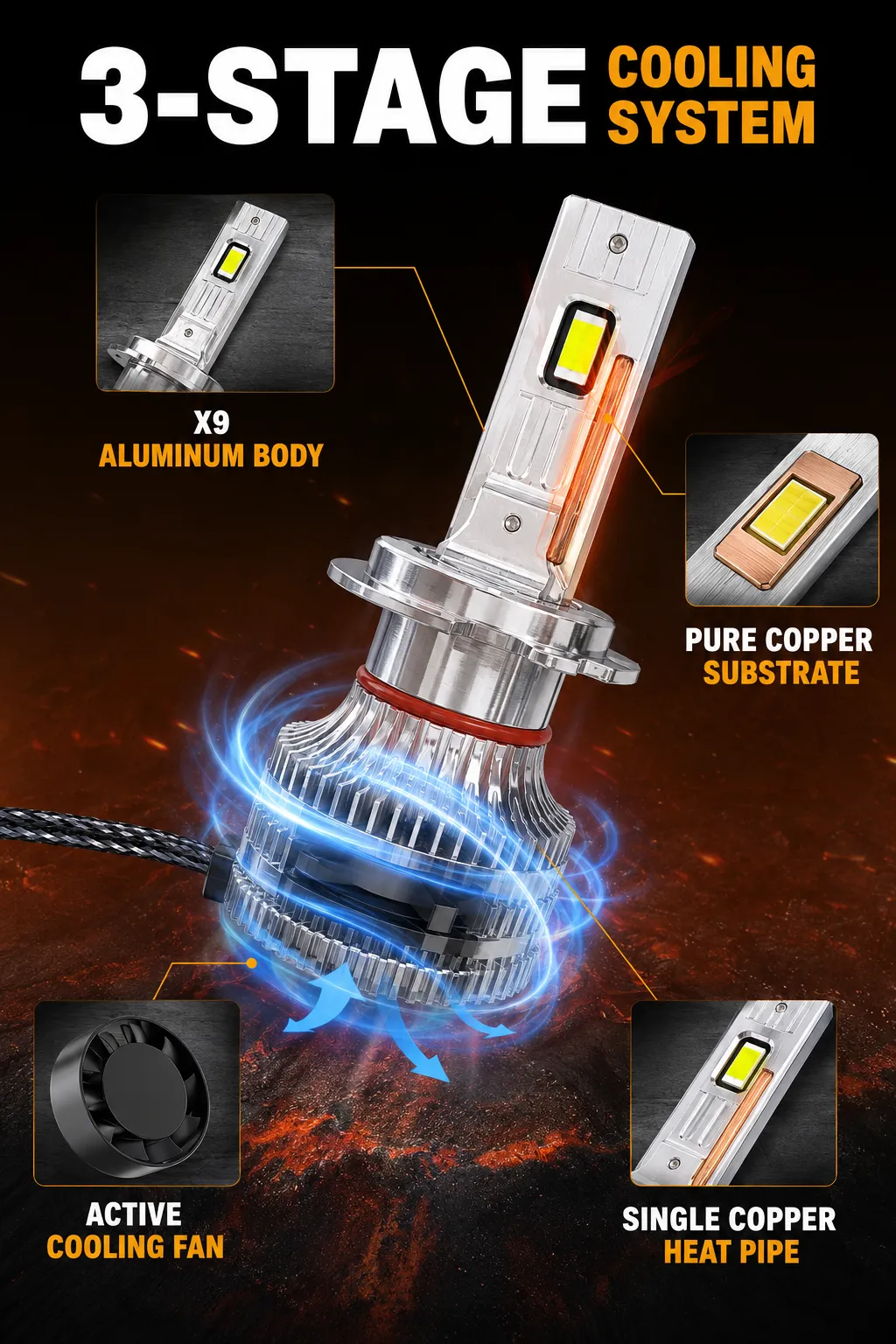

Three-Stage Cooling for Stable High-Output Operation
Copper Substrate, Single Copper Heat Pipe and Active Fan Cooling
High-output LED chips generate concentrated heat around the light-emitting area. X9 uses three connected thermal components to transfer heat away from the 3570 CSP chips and discharge it through the rear heatsink.
Copper Substrate
Collects heat directly from the LED chip area and helps reduce local heat concentration.
Single Copper Heat Pipe
Transfers heat from the LED board toward the rear heat-dissipation structure.
Active Cooling Fan
Creates continuous airflow across the heatsink to discharge accumulated heat during operation.
"One continuous thermal path—from the LED chips to the copper substrate, through the copper heat pipe and finally out through the fan-cooled heatsink."

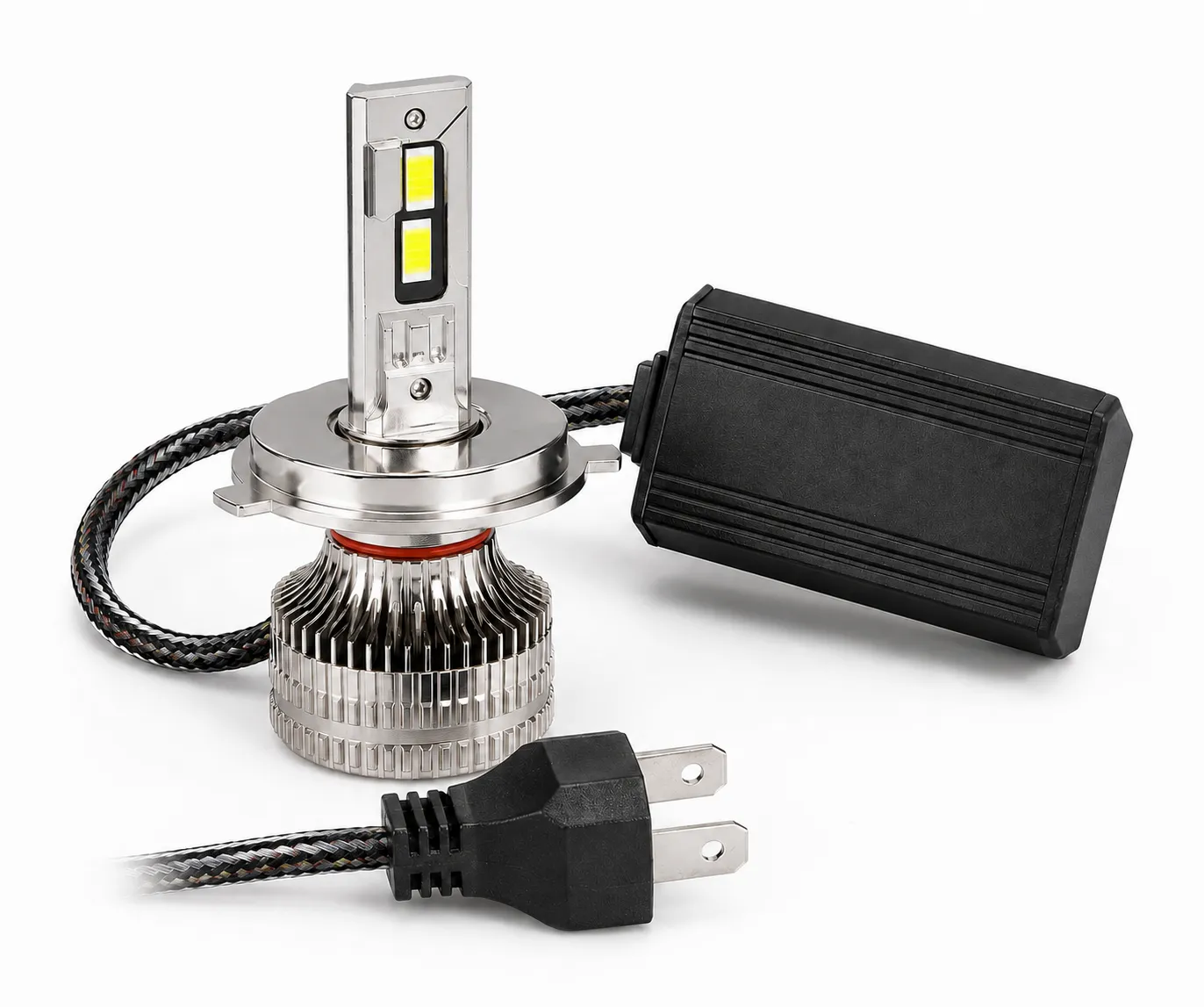

External Driver for Flexible Power Management
X9 separates the driver from the main bulb body. This keeps part of the electronic heat away from the LED light source and gives the power-control components more installation space than a fully integrated driver structure.
-
Separated Heat Sources
Driver electronics are positioned away from the LED chip and rear fan structure.
-
Current Regulation
The driver manages the power supplied to the LED chips under different operating conditions.
-
OEM Label Options
The driver surface can carry the customer's logo, product model and technical information.
Fitment & CANBUS Notice
Vehicle-specific CANBUS performance should be confirmed before bulk ordering. Additional decoder solutions can be discussed according to the target vehicle list.
X9 LED Headlight Technical Specifications
| Product Name | X9 LED Headlight Bulb |
|---|---|
| Available Bases | H1, H3, H4, H7, H11, 9005, 9006, 880 |
| Rated Power | 140W/Pair |
| LED Chip | 3570 CSP |
| Input Voltage | 12V/24V |
| Color Temperature | 6500K |
| Cooling System | Copper Substrate + Single Copper Heat Pipe + Fan |
| Driver Type | External Driver |
| Beam Configuration | Single Beam / H4 High-Low Beam |
| Application | Car Headlight and Fog-Light Replacement |
| Brand Options | Neutral / LEZEN / OEM |
| Supply Type | Wholesale / OEM / ODM |
* The published 140W specification refers to one pair of X9 bulbs. Actual operating power may vary according to driver configuration, operating temperature and vehicle electrical conditions.

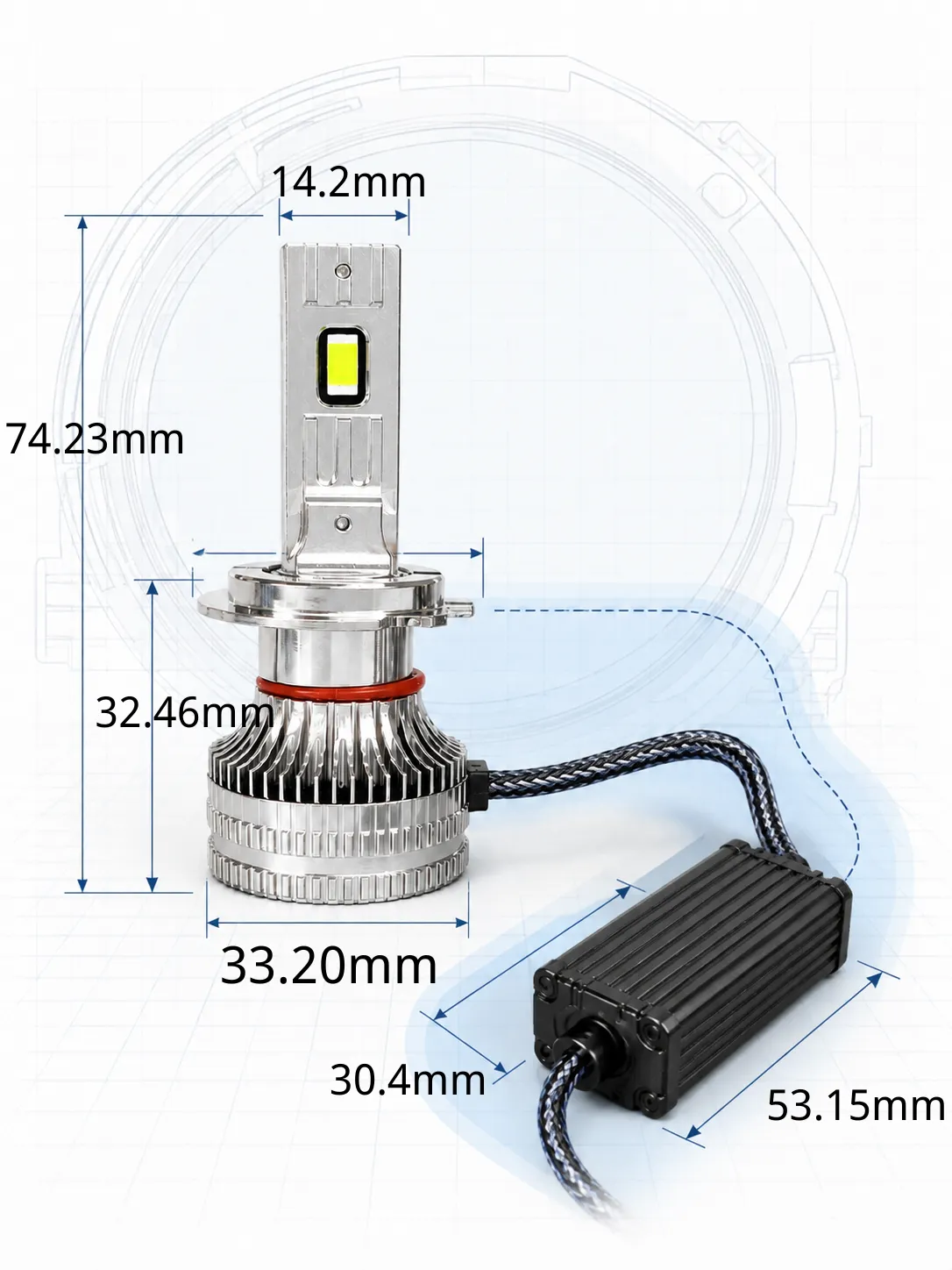

Check Installation Space Before Bulk Purchasing
Because X9 uses a rear cooling fan and an external driver, buyers should check the available space inside the headlight housing before selecting the product for a specific vehicle range. LEZEN can provide product dimensions and installation photos to support fitment evaluation.
- Overall bulb height
- LED blade width
- Mounting-base dimensions
- Base-to-fan distance
- Rear heatsink diameter
- External driver dimensions
- Cable length
- Connector type
Tip: Bulb-base compatibility does not always guarantee sufficient installation space. Check the dust cover, rear housing depth and driver placement before confirming a bulk order.
Verified X9 Performance & Wholesale Terms
Engineered for extreme conditions. Manufacturing excellence since 2010 with full OEM/ODM capabilities. Fully certified to ISO9001, Emark, and IATF 16949 standards for uncompromising reliability in automotive and motorcycle lighting.
30,000+ Hours
Extended Lifespan
Aviation Aluminum
Active Heat Dissipation
IP68 Rated
Water & Dust Proof
Precise Beam
1:1 Halogen Pattern
Wholesale & Partnership Terms
-
Flexible Order Volumes
Accommodating scalable production runs with optimized pricing tiers for bulk distributors.
-
OEM / ODM Customization
Full bespoke engineering, private labeling, and custom packaging design backed by over a decade of expertise.
-
Rapid Global Fulfillment
Streamlined lead times leveraging our advanced facility in Foshan, Guangdong. Reliable logistics support.
-
Rigorous Warranty
Comprehensive defect coverage supported by ISO9001 and IATF 16949 rigorous quality control protocols.
admin@lezen.com.cn
+86 136 9516 8008
Customize X9 for Your Automotive Lighting Brand
LEZEN supports automotive lighting distributors, importers and private-label brands with flexible X9 customization options. Begin with neutral packaging for market testing and move to custom branding after confirming demand.
Product Branding
- + Laser logo on bulb body
- + Product model marking
- + Voltage and power info
- + Driver logo or label
Packaging
- + Neutral or LEZEN brand
- + Custom single/twin box
- + Barcode & anti-counterfeit
- + Instruction manual
Configuration
- + Bulb-base combination
- + Driver configuration
- + Cable/connector needs
- + Additional decoder solutions

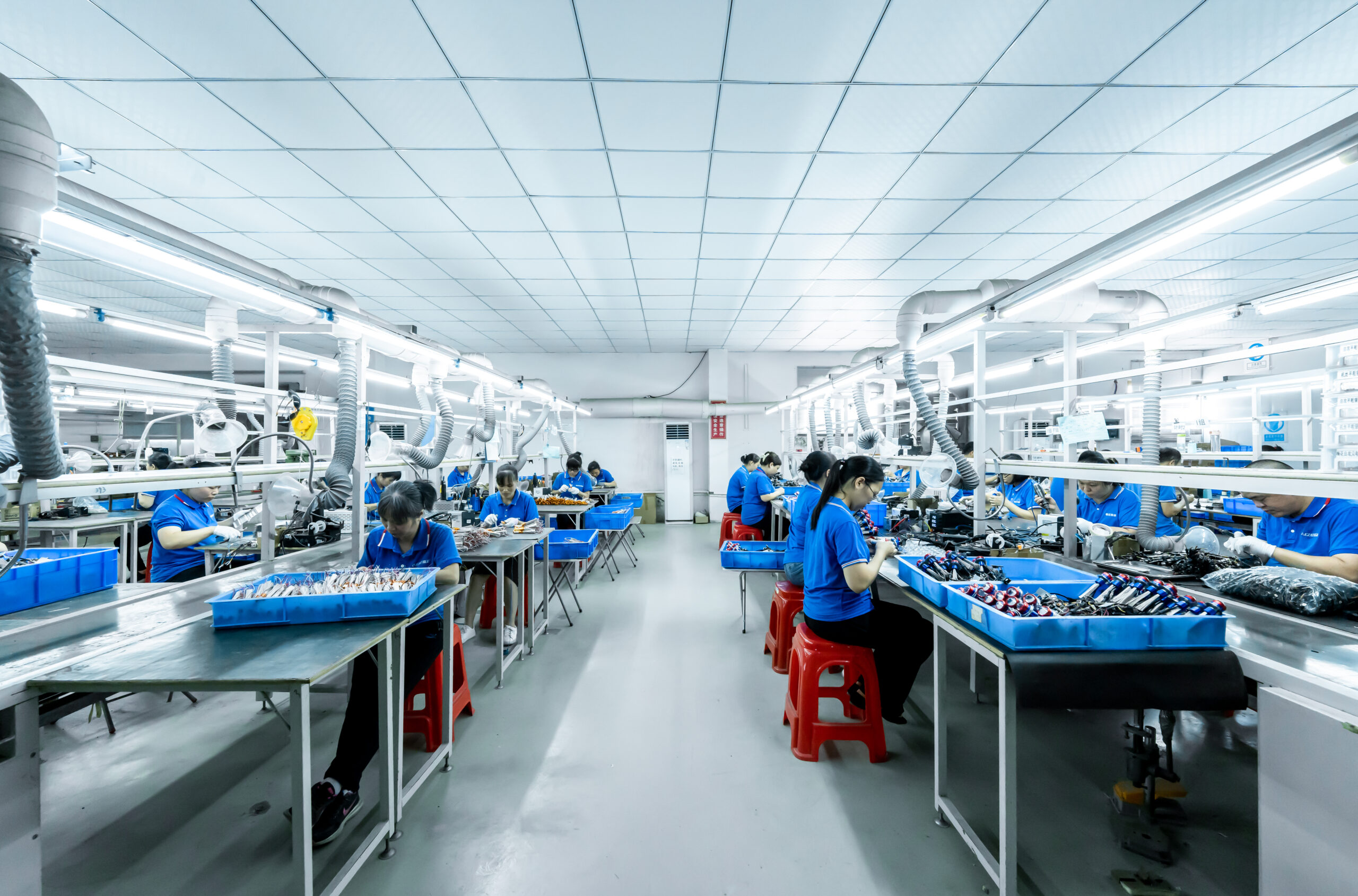

Quality Control for Wholesale X9 Orders
For distributors, consistent performance between production batches is as important as the specification of one sample. LEZEN applies strict inspection procedures.
1. Material
Inspection of chips, substrates, heat pipes, fans, and drivers.
2. Assembly
Check chip position, mounting base, heatsink, and wiring.
3. Power-On
Check lighting operation, fan operation and driver stability.
4. Aging Test
Continuous lighting and thermal observation per order specs.
5. Final QC
Check appearance, base type, labels, and packaging before shipment.
From X9 Sample Testing to Bulk Supply
Confirm Required Bases
Send us the required models, such as H1, H4, H7, H11, 9005 or 9006.
Evaluate Samples
Check installation space, beam pattern, power stability, driver compatibility and operating temp.
Confirm Order Details
Select the product models, quantities, logos, driver labels and packaging type.
Approve Pre-Production Sample
Confirm the final product and packaging details before mass production.
Production and Inspection
Order enters production, aging, final inspection and packing per approved specs.
Frequently Asked Questions
Is the X9 rated at 140W per bulb?
Which X9 bulb bases are available?
Which X9 model provides both high and low beam?
What cooling system does X9 use?
Does X9 use an internal or external driver?
Is X9 CANBUS error-free?
Can I order X9 with my own brand?
Request X9 Samples and Factory Pricing
Tell us which X9 bulb bases you need, your estimated quantity, target market and packaging requirements. Our team will prepare a suitable model combination and wholesale quotation.
